Used Accudyne 500-Ton Heated Platen Hydraulic Shuttle Press – 36" x 36" Platens, 400°F, Rebuilt 2021

Manufacturer Information
Accudyne
Accudyne industrial press equipment is used in applications requiring controlled hydraulic force, heated platens, and programmable processing cycles. This heavy-duty 500-ton hydraulic press combines heated 36" x 36" platens with a powered shuttle table to support efficient material loading and unloading between press cycles.
Description
Available for sale is a used Accudyne 500-Ton Heated Platen Hydraulic Shuttle Press, Serial Number 21004, rebuilt in 2021.

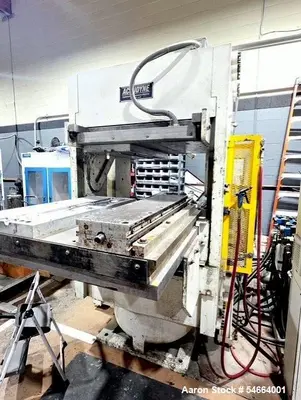

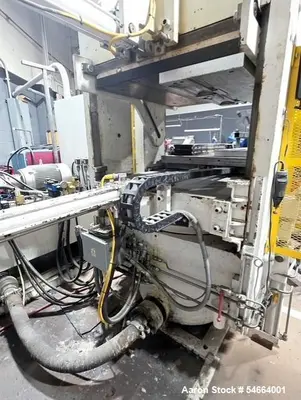

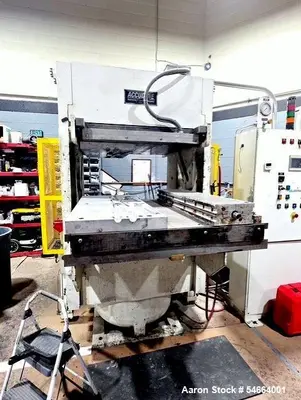

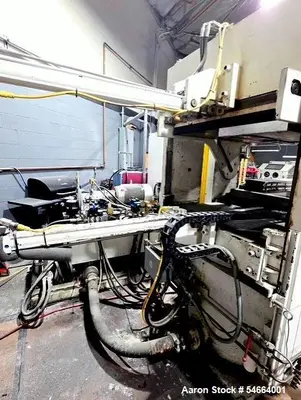

The press features 36" x 36" heated platens, a 500-ton pressing capacity, an up-acting hydraulic cylinder, and a powered shuttle table. The shuttle configuration allows tooling or workpieces to be moved between the loading position and pressing area, potentially improving operator access and production workflow.

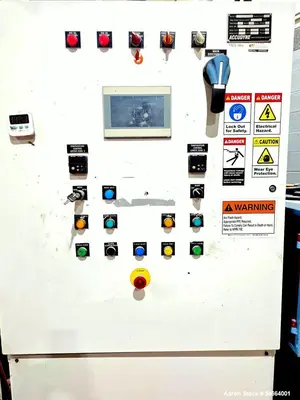

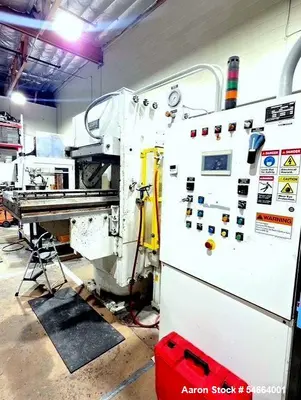

The machine provides a 20" main cylinder stroke and 20" daylight opening, with a stated maximum operating temperature of 400°F. A separate programmable control panel with HMI provides operator interface and process control.

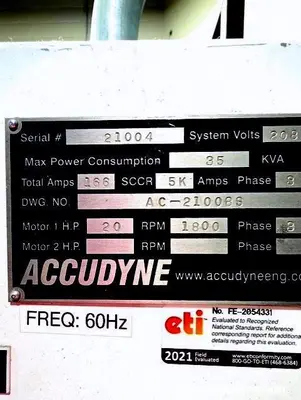

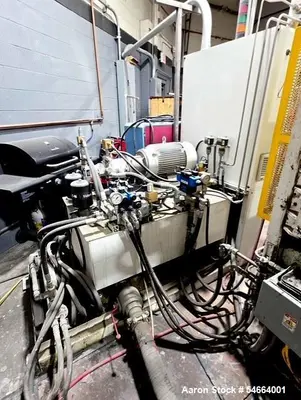

Hydraulic power is supplied by a 20 HP, 1,800 RPM, 3-phase motor. Electrical nameplate information indicates 208V, 60 Hz, 3-phase, 166 total amps, maximum power consumption of 35 kVA, and a 5 kA SCCR.
With an approximate machine weight of 27,000 lb., this is a substantial industrial press requiring appropriate rigging, foundation/floor capacity, electrical service, and freight planning.
Specifications

Specification
Details

Manufacturer
Accudyne

Equipment Type
Heated Platen Hydraulic Shuttle Press

Condition
Used

Rebuilt
2021

Serial Number
21004

Pressing Capacity
500 Tons

Platen Size
36" x 36"

Platen Heating
Heated

Maximum Operating Temperature
400°F

Shuttle Table
Powered

Hydraulic Cylinder
Up-Acting

Main Cylinder Stroke
20"

Daylight Opening
20"

Hydraulic Power Unit Motor
20 HP

Motor Speed
1,800 RPM

Motor Phase
3-Phase

Electrical
208V / 60 Hz / 3-Phase

Total Amperage
166 Amps

Maximum Power Consumption
35 kVA

SCCR
5 kA

Controls
Separate Programmable Control Panel

Operator Interface
HMI

Approximate Weight
27,000 Lbs.

Typical Applications

Compression molding
Heated compression pressing
Composite molding
Rubber molding
Plastic forming
Laminating
Thermal bonding
Adhesive bonding
Sheet forming
Composite consolidation
Industrial material pressing
Specialty heated pressing operations

Products This Press Could Be Used For

Composite panels
Rubber molded components
Thermoset plastic parts
Laminated panels
Fiber-reinforced composites
Bonded assemblies
Gaskets and seals
Industrial laminate sheets
Molded polymer components
Composite structural components
Specialty sheet materials
Other compatible heat-and-pressure-formed products

Actual suitability depends on tooling, material, required pressure, platen temperature, cycle time, part dimensions, heating requirements, controls, and machine condition.
Frequently Asked Questions

What is the pressing capacity? This Accudyne hydraulic press has a stated maximum pressing capacity of 500 tons.

What size are the heated platens? The machine is equipped with 36" x 36" platens and has a stated maximum operating temperature of 400°F.

What is the advantage of the shuttle table? The powered shuttle table moves tooling or workpieces between loading/unloading and pressing positions, potentially improving access and production efficiency.

What are the stroke and daylight dimensions? The press has a 20" main cylinder stroke and a 20" daylight opening.

What electrical service does the press require? The supplied electrical data plate indicates 208V, 60 Hz, 3-phase, 166 total amps, 35 kVA maximum power consumption, and 5 kA SCCR. Facility requirements should be confirmed before installation.

Can Aaron Equipment assist with shipping and logistics? Yes. At approximately 27,000 lb., this machine will require heavy-equipment rigging and appropriate transportation. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning.
