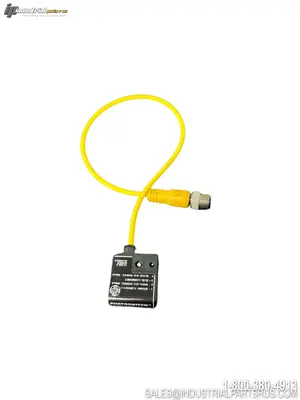

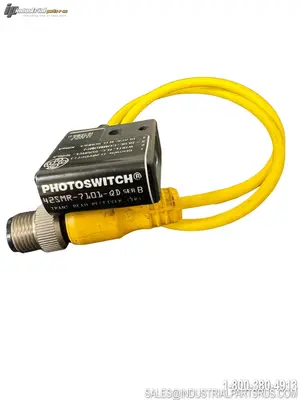

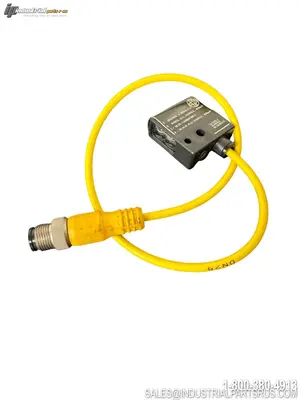

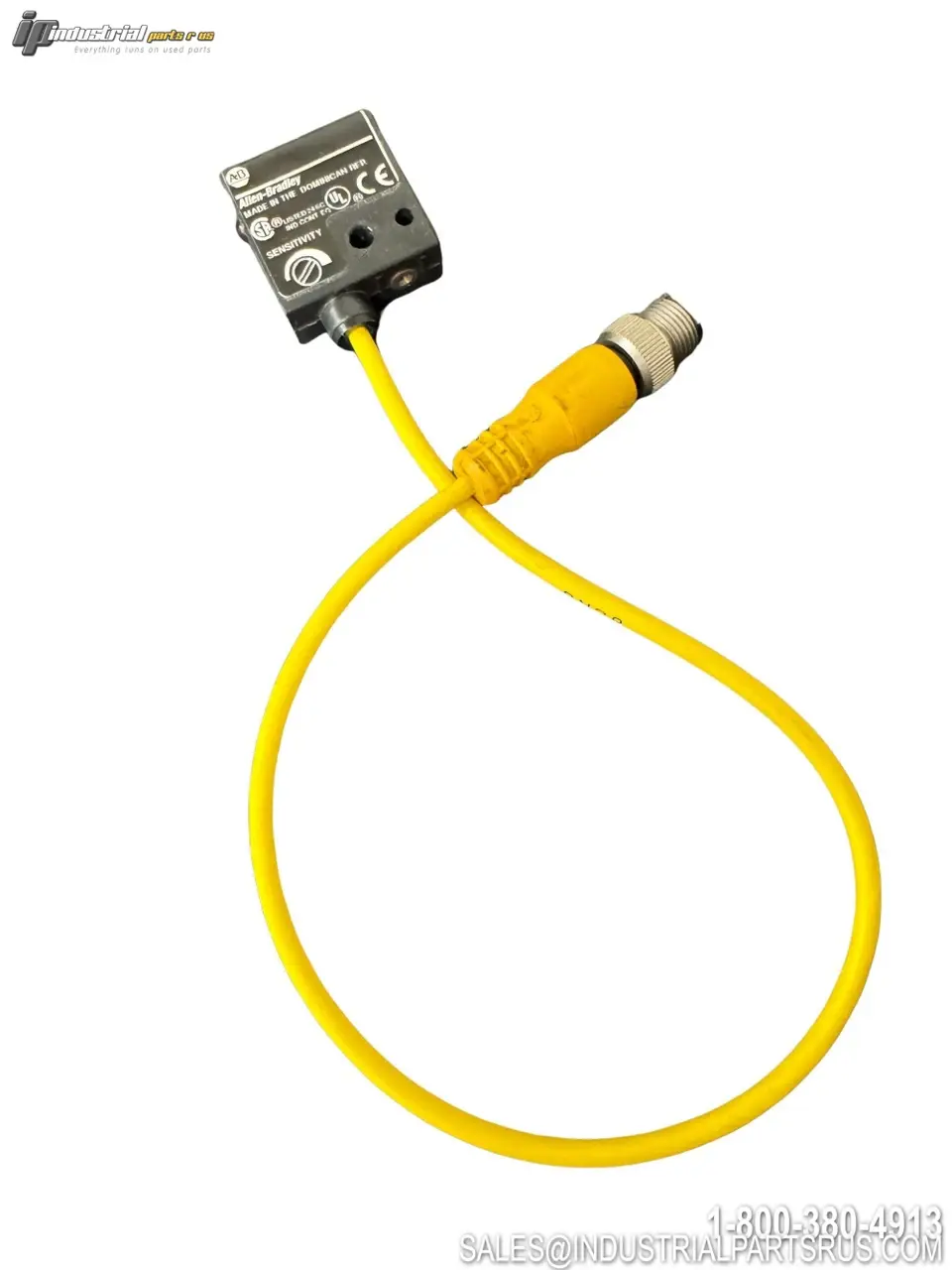

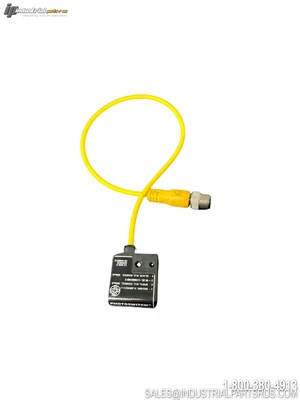

USED ALLEN-BRADLEY 42SMR-7101-QD

This listing is for the RECEIVER ONLY. The emitter is NOT included.
The Allen-Bradley 42SMR-7101-QD is a Series 7000 miniature rectangular Photoswitch transmitted beam (through-beam) receiver designed for use with a compatible 42CF infrared light source emitter. It operates on 11–28V DC and provides a complementary N.O./N.C. PNP (Source) output via a 4-pin DC Micro QD (M12) quick-disconnect connector. This product has been officially discontinued by Rockwell Automation as of September 30, 2012, and is available only as surplus stock.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
42SMR-7101-QD
Series
B
Product Family
Series 7000 Miniature Rectangular Photoswitch
Sensor Type
Through Beam (Transmitted Beam) Receiver
Compatible Emitter
42CF Transmitted Beam Light Source (Infrared)
Light Source Type
Infrared
Supply Voltage
11–28V DC
Supply Current
25 mA
Output Type
Complementary N.O./N.C. — PNP (Source)
Output Current (Max Load)
100 mA
Max Leakage Current
10 µA
Response Time
1 ms ON / 1.5 ms OFF
Max Sensing Distance
9.2 m (30 ft) — Infrared Trans-Beam
Connection Type
4-Pin DC Micro QD (M12 Quick-Disconnect)
Enclosure / Housing
Plastic (Miniature Rectangular)
Mounting Type
Side Through Hole
Certifications / Standards
UL, CE, CSA
Lifecycle Status
Discontinued (September 30, 2012)
We warranty all items for 30 days from date of purchase.
