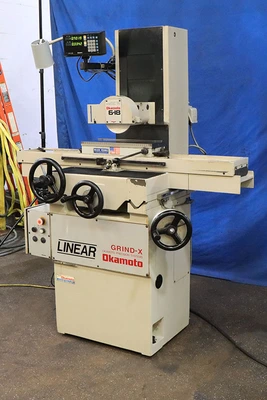

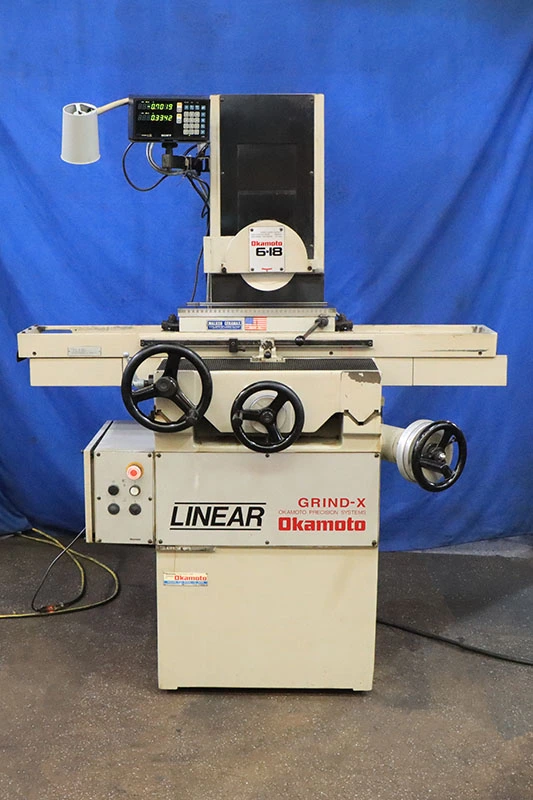

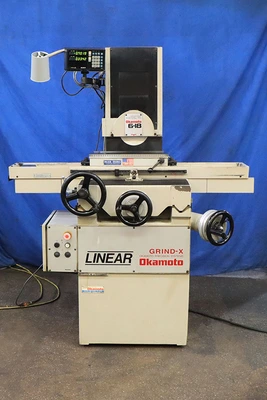

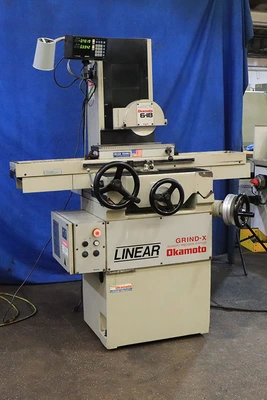

USED 2004 Okamoto LINEAR 618B, 2004, 2X DRO, ROLLER BEARING TBL

  6" X 18" OKAMOTO "HIGH-PRECISION"

      HANDFEED SURFACE GRINDER

    WITH ROLLER BEARING TABLE

 ** SONY MAGNESCALE "LH-51 2-AXIS

      DIGTAL READOUT DISPLAY  **

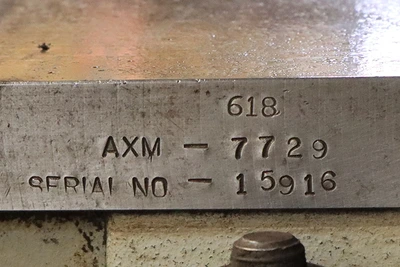

MODEL: L-618B      S/N: 48071       NEW: 2004

NOMINAL GRINDING CAPACITY ................. 6" x 18"

TABLE TO UNDERSIDE OF 8" GRINDING WHEEL ... 14.27"

MAX. LONGITUNAL TABLE TRAVEL .............. 20.87"

MAX. CROSS TRAVEL ......................... 8.27"

MOVEMENT PER HANDWHEEL REVOLUTION:

 TABLE .................................... 5.12"

 SADDLE ................................... 0.1""

SADDLE .................................... 0.05"

HANDWHEEL GRADUATION....................... 0.0001"

SPINDLE MOTOR ............................. 2 H.P.

GRINDING WHEEL SPEED ...................... 3,450 RPM

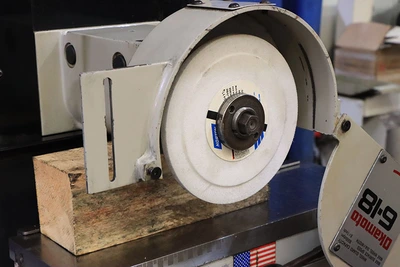

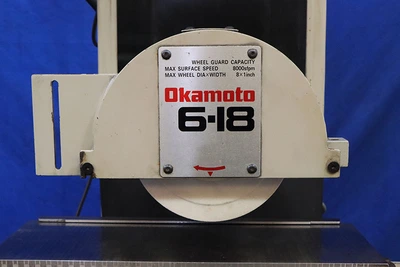

WHEEL SIZE ...................... 8" x 1/2" x 1- 1/4"

APPROX. DIMS. FOR OPERATION ..... 76.5" x 55.3"D x 68"H

APPROX. MACHINE WEIGHT .................... 2,070 LBS.

MACHINE FEATURES:

MEEHANITE CAST IRON, HEAVY DUTY CONSTRUCTION

SMOOTH TABLE MOVEMENT THROUGH RELIABLE BELT DRIVE

TABLE GLIDES ON LINEAR BALL BEARINGS

RECIRCULATING LUBRICATION SYSTEM

2 H.P. DIRECT DRIVE SPINDLE, 3/60/230-460 VOLTS

EQUIPPED WITH:

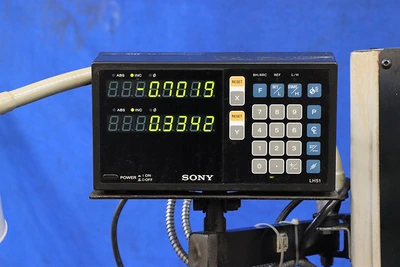

SONY MAGNESCALE "LH-51"

  2-AXIS DIGITAL READOUT DISPLAY.

  DRO READS TO 0.0001" ON DISPLAY

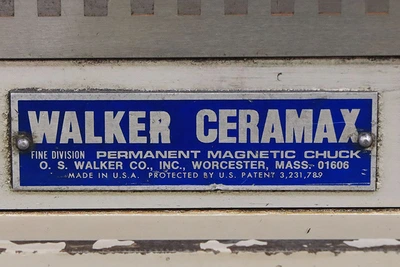

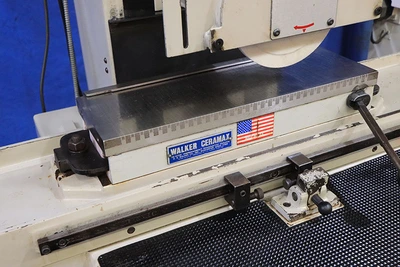

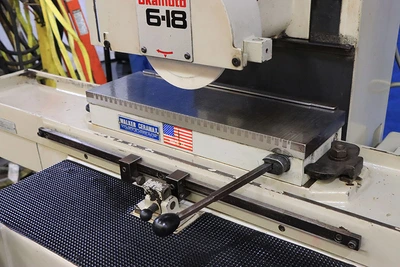

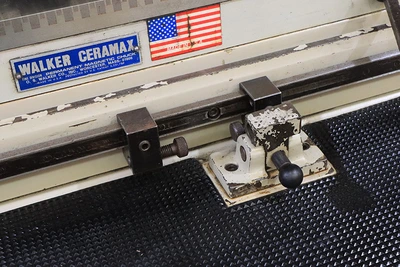

6" X 18" WALKER "CERAMAX" FINE-DIVISION

  PERMANENT MAGNETIC CHUCK

RECIRCULATING AUTOMATIC LUBRICATION SYSTEM

HANDWHEELS ARE IN "INCH" GRADUATIONS

SET UP FOR DRY GRINDING

MACHINE IS WIRED FOR 230 VOLTS PRESENTLY

 Link to video: https://youtu.be/wG86hZRIzLs?si=35fRzFs4Fo2eZx-T

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
