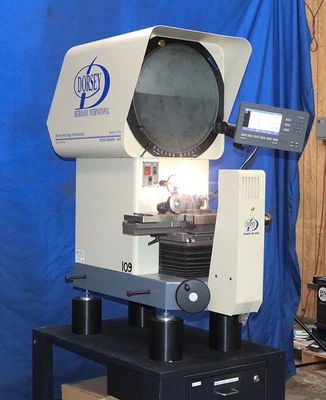

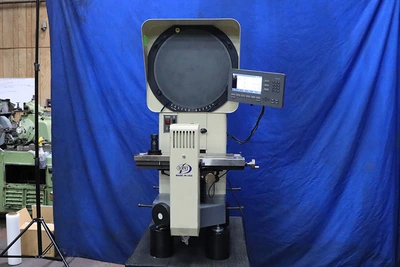

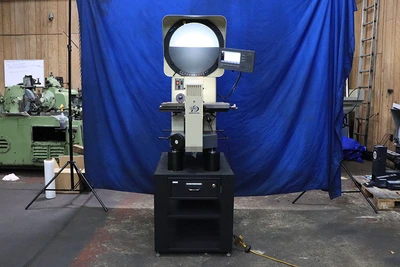

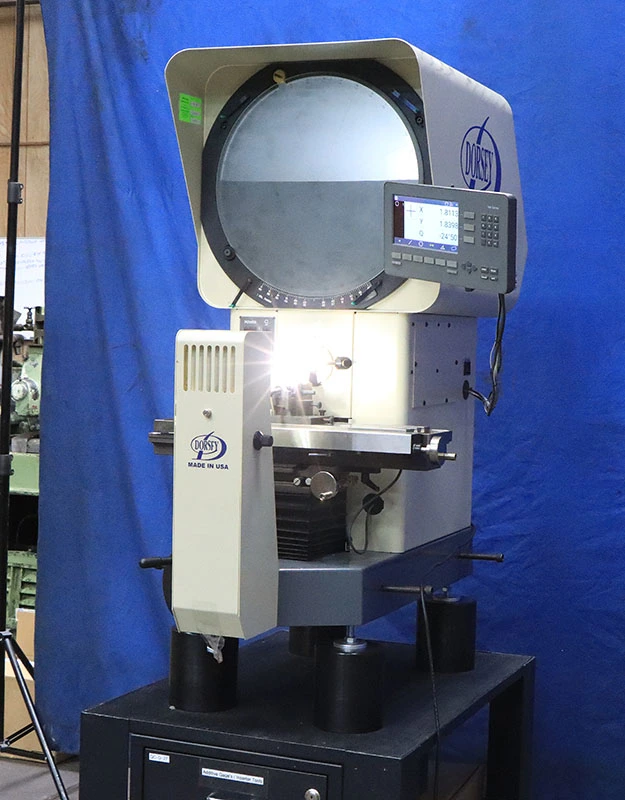

USED 2022 Dorsey Gage Co. 16H-MX203-E, 2022, DRO w/PROG GEO FUNCT & EDGE DET

        16" DORSEY "MADE IN USA"

     HORIZONTAL BENCH MODEL OPTICAL COMPARATOR

       "METLOGIX MX203-E" DRO

    WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

        AND INTERNAL EDGE DETECTION

MODEL: 16H-MX203-E       S/N: 0322/1825

               NEW: 2022

SCREEN DIAMETER .................. 16"

TABLE SIZE ....................... 18" x 6"

WEIGHT CAPACITY ON TABLE ......... 150 LBS.

HORIZONTAL TRAVEL ................ 10"

VERTICAL TRAVEL .................. 6"

FOCUS ............................ 3"

HELIX ANGLE ...................... +/- 15°

APPROX. MACHINE WEIGHT ........... 360 LBS.

MACHINE DIMENSIONS ....... 32"L-R x 40"D x 44"H

DORSEY MODEL #16H MACHINE FEATURES:

ROBUST CAST GRANITE COMPOSITE BASE

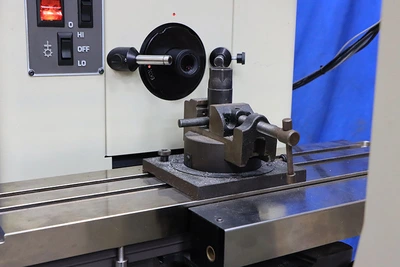

CAST IRON "ULTRA PRECISION" STAGE SYSTEM

STAGE IS NICKEL PLATED FOR LONG LIFE

ROLLER BEARING SLIDES

HELIX ADJUSTMENT

MEASUREMENT SCALES ARE MOUNTED IN THE CENTER OF TRAVEL,

 WITH ZERO BACKLASH

VERTICAL SCREEN, ERECT & REVERSED PROFILE IMAGE

COATED TELECENTRIC PARAFOCAL OPTICS

QUICK CHANGE SINGLE LENS MOUNT

HIGH POWER TUNGSTEN ARC PROFILE ILLUMINATION

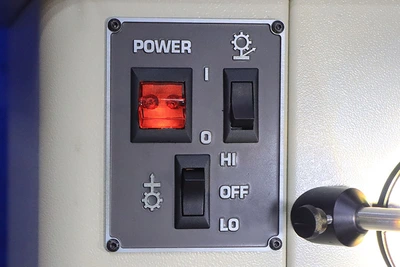

SELECTOR SWITCH WITH HIGH & LOW INTENSITY LIGHT CHOICES

FIBER OPTIC SURFACE ILLUMINATION (FULLY RETRACTABLE)

INTEGRATED HOOD

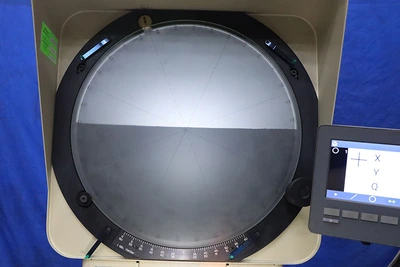

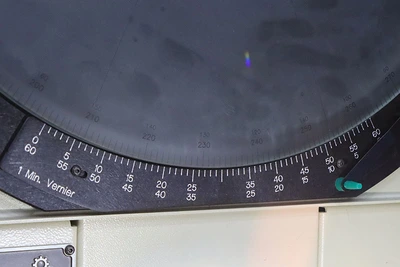

MACHINED CHART RING, WITH VERNIER PRTRACTOR,

 AND ONE MINUTE GRADUATION

EQUIPPED WITH:

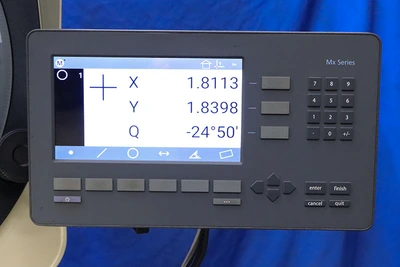

"METLOGIX" "MX203-E" 2-AXIS DIGITAL READOUT DISPLAY

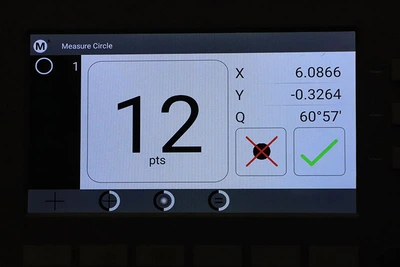

  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

  AND INTERNAL EDGE DETECTION

"Q" AXIS, SCREEN PROTRACTOR, DIGITALLY DISPLAYED ON THE DRO

FACTORY OPTIUONAL FLOOR STAND, WITH DRAWER

OUR MACHINE COMES WITH TWO LENSES ... 20X & 50X LENSES.

OTHER LENS MAGS ARE AVAILABLE TO PURCHASE FROM THE OEM

115 VOLT/1 PHASE ELECTRICS

LAST CALIBRATED ON APRIL 20TH, 2026 BY:

EDWARD MATHESON

METROLOGY SERVICES, INC.

(603) 381-8353

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** "LIKE NEW" CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
