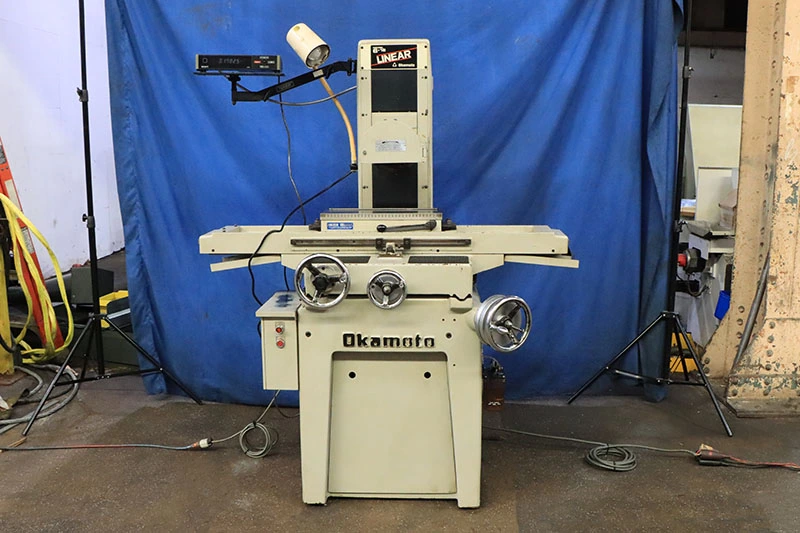

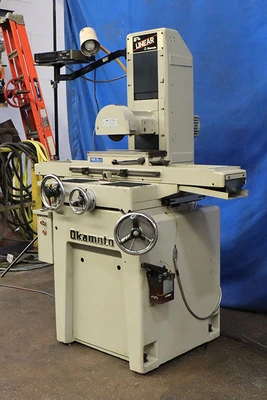

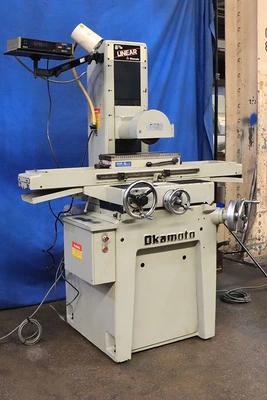

USED 1994 Okamoto LINEAR 618B, 1994, 1X DRO, ROLLER BEARING TABLE,

     6" x 18" OKAMOTO "HIGH-PRECISION"

         HANDFEED SURFACE GRINDER

     WITH ROLLER BEARING TABLE DESIGN

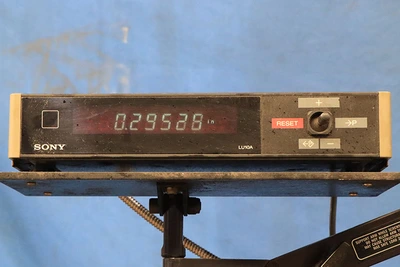

SONY SINGLE AXIS DIGITAL READOUT, FOR THE CROSS AXIS.

         DRO DISPLAYS TO 0.00005".

MODEL: LINEAR 618     S/N: 4570      NEW: 1994

WIDTH & LENGTH GROUND .....................6" x 18"

TABLE TO SPINDLE CENTER .................. 18"

HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ... 11"

LONGITUDINAL TABLE TRAVEL ................ 19"

CROSS TRAVEL ............................. 8"

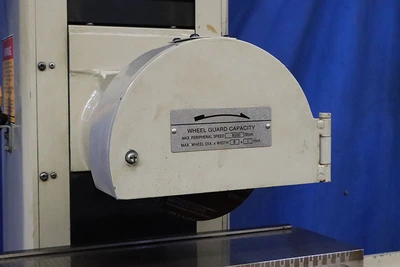

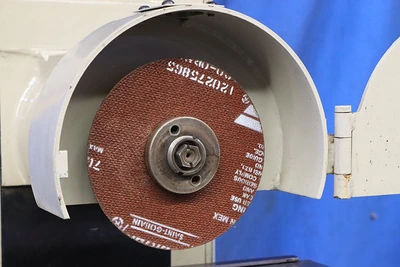

GRINDING WHEEL CAPACITY .......... 8" x 1" x 1-1/4"B

CROSS FEED PER REV. OF HANDWHEEL

(.001" GRAD.) ............................ 0.100"

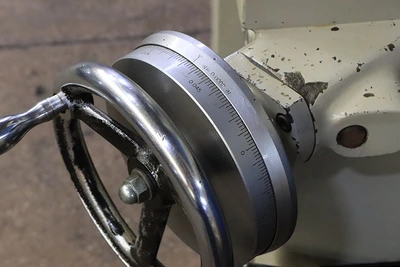

CROSS FEED HANDWHEEL VERNIER READS TO .... 0.0001"

VERTICAL FEED PER REV. OF HANDWHEEL

(.0002" GRAD.) ........................... 0.0500"

APPROX. WEIGHT .......................... 2,020 LBS.

APPROX. DIMENSIONS ................ 58" x 46" x 71"H

  EQUIPPED WITH:

LONGITUDINAL TABLE TRAVEL ON LINEAR BALL

 BEARINGS DRIVEN BY CABLE SYSTEM

HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN

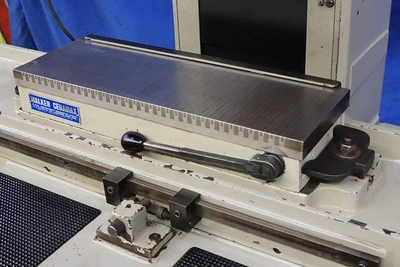

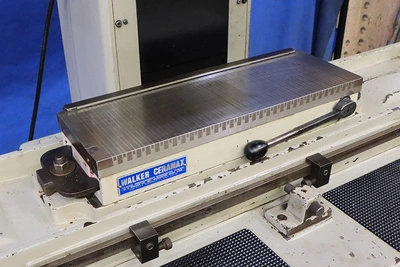

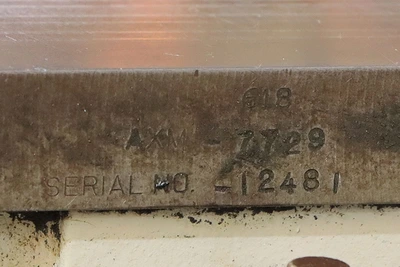

6" x 18" O.S. WALKER PERMANENT MAGNETIC CHUCK,

 MODEL "CERAMAX, FINE-DIVISION LINES

SONY SINGLE AXIS DIGITAL READOUT, FOR THE CROSS AXIS.

  DRO DISPLAYS TO 0.00005".

MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM

2 H.P. 3/60/230-460 VOLT HIGH-PRECISION

 DIRECT DRIVE CARTRIDGE-TYPE SPINDLE

WORK LIGHT

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

Link to video: https://youtu.be/2TLVqraVhiE?si=4fyqPUjfGysWHtdx

** ORIGINAL PAINT - EXCELLENT CONDITION **

** SPINDLE IS NICE & QUIET **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
