USED 1970 Kearney & Trecker 415 RAM TF Power Overarm, Twin Screw

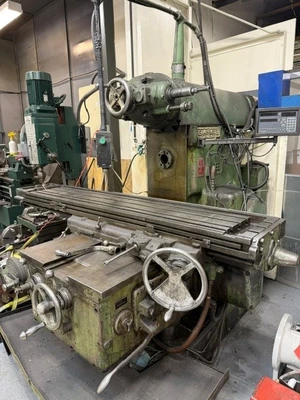

KEARNEY & TRECKER HORIZONTAL MILLING MACHINE

w/POWER VERTICAL OVERARM

MODEL: 415 TF-RAM, S/N: 1031R, NEW: 1970'S

SPECIFICATIONS:

TABLE WORKING SURFACE .................. 15-1/2" X 80"

TABLE SWIVEL LEFT & RIGHT .............. 47 DEGREES

RANGE, LONGITUDINAL .................... 42"

CROSS .................................. 14"

VERTICAL, KNEE ......................... 18"

TAPER IN HORIZONTAL SPINDLE ............ #50 N.S.T.

TAPER IN VERTICAL SPINDLE .............. #40 N.S.T.

HORIZONTAL SPINDLE SPEEDS (24) ......... 15 - 1,500 R.P.M

VERTICAL SPINDLE SPEEDS (8) ............ 100 - 1,600 R.P.M.

LONGITUDINAL AND CROSS FEEDS (32) ...... 3/8 TO 90 I.P.M.

VERTICAL KNEE FEEDS (32) ............... 1/8 TO 30 I.P.M.

RAPID TRAVERSE RATE

    LONGITUDINAL AND CROSS ............. 150 I.P.M.

    VERTICAL ........................... 50 I.P.M.

APPROXIMATE DIMENSIONS ................. 109" X 106" X 89" HIGH

APPROXIMATE WEIGHT ..................... 13,500 LBS.

EQUIPPED WITH:

- VERTICAL OVERARM ATTACHMENT WITH SWIVELING MILLING HEAD

     VARIABLE SPEED IN EACH SPEED

- WIDE KNEE DESIGN

- TWIN SCREW ARRANGEMENT FOR VERTICAL MOVEMENT & SUPPORT

OF KNEE

- FRONT LOCATED HANDWHEEL FOR LONGITUDINAL TABLE TRAVEL

- DUAL LEFT REAR LOCATED HANDWHEELS FOR KNEE & SADDLE

TRAVEL

- AUTOMATIC BACKLASH ELIMINATOR

- SELF-CONTAINED COOLANT SYSTEM

- 3 HORSE POWER INDIVIDUAL FEED & RAPID TRAVERSE MOTOR

- 5 HORSE POWER RAM SPINDLE DRIVE

- 15 HORSE POWER HORIZONTAL SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
