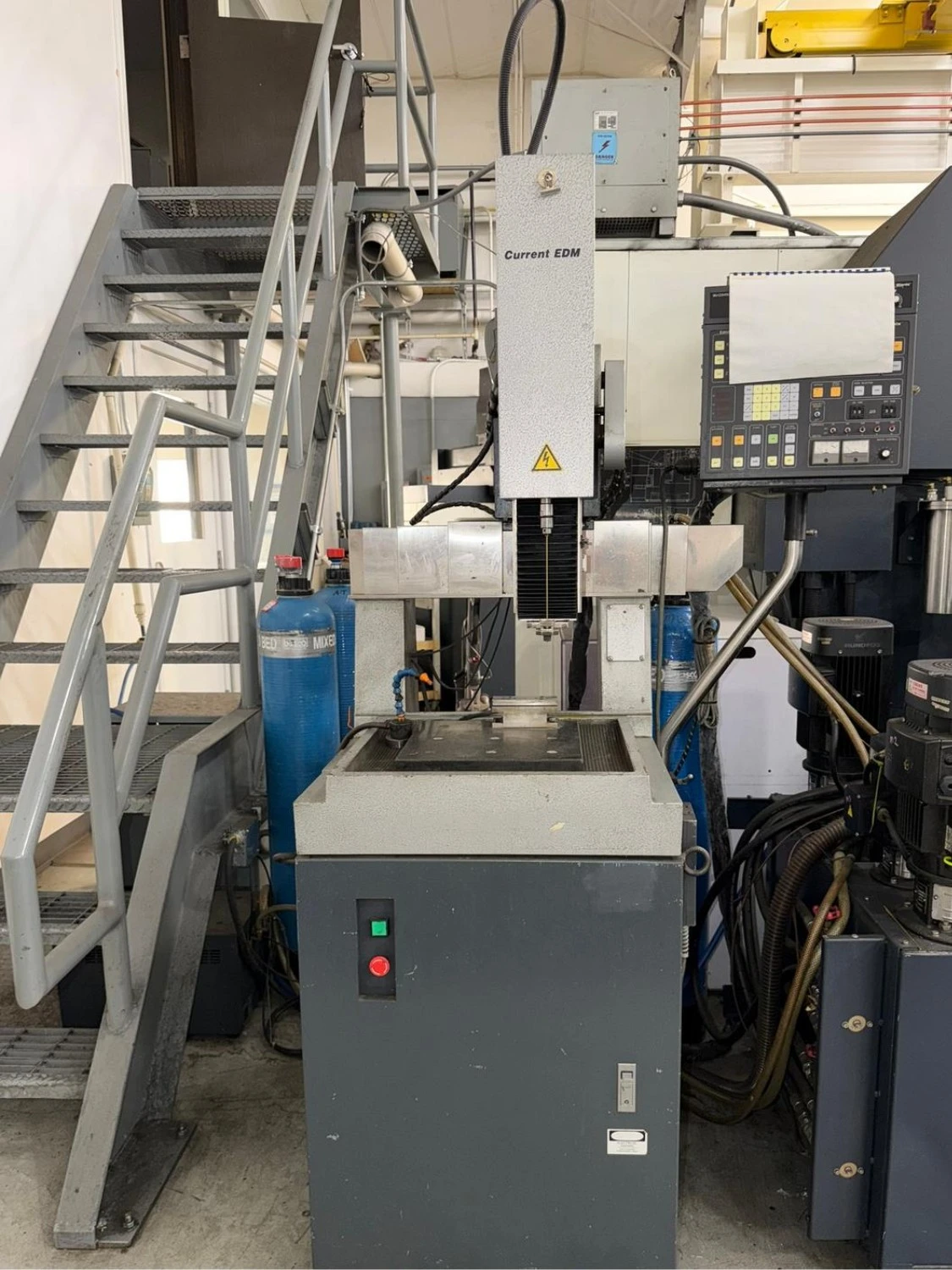

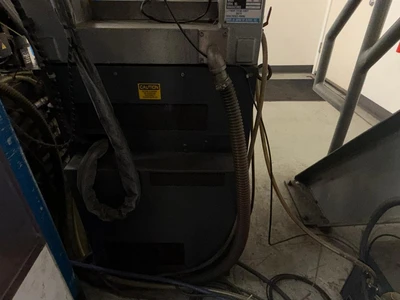

USED 2003 Current EDM CT300, CNC 5-AXIS CONTROL, SRJCONTROLLER IV OPTION

    CURRENT EDM (Made in Japan)

        "High Accuracy"

      CNC EDM Hole Driller

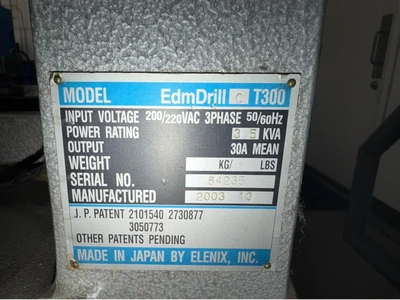

Model: CT300 Elenix

S/N: 84235

Year: 2003

X-axis travel 300 mm (12")

Y-axis travel 200 mm (8")

Z-axis travel 300 mm (12")

Guide axis travel (G-axis) 250 mm (10")

Throat distance (min) 10 mm (0.4")

Throat distance (max) 210 mm (8.3")

Work table size 300 mm x 300 mm (12" x 12")

Max workpiece weight 310 kg (682 lbs)

Feedback X/Y axis rotary encoders

Feedback Z axis encoder, direct shaft

Inch/metric display

RS232 machine input

200/230 volt three phase, 60 HZ, 3.5 KVA

Machine weight: (2,000 Lbs.)

Machine Features:

Single-cast, bridge construction with

 stainless steel head and precision ball screws

 provide years of reliable, accurate machining.

Predictable and consistent results using

 economical water dielectric fluid.

57 peak amp power supply effectively

 operates with electrode diameters

 from .004" to .256".   User friendly

 control programs 5-axis, giving you 9

 coordinate systems, canned cycle routines

 and electrode wear compensation cycles

 for blind hole applications.

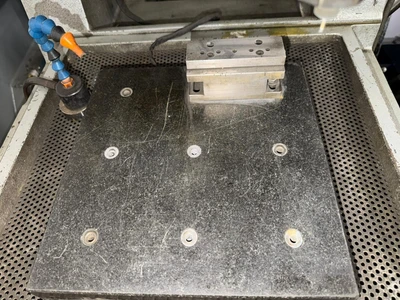

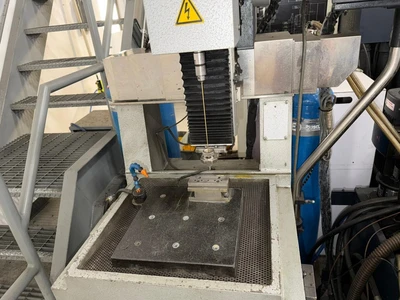

Granite Table with Tapped Insert Holes

Current EDM CNC Control:

Axis Programming:

Controls up to 5 axes for complex, multi-sided,

 or angled hole drilling operations.

Coordinate Systems:

Supports 9 distinct coordinate systems for

 flexible positioning.

Automated Routines:

Built-in canned cycle routines and automatic

 part referencing to reduce setup times..

Wear Compensation:

Dedicated electrode wear compensation cycles

 specifically designed for precise blind-hole

 applications.

File Management:

Allows for off-line programming and file

 uploading directly to the controller.

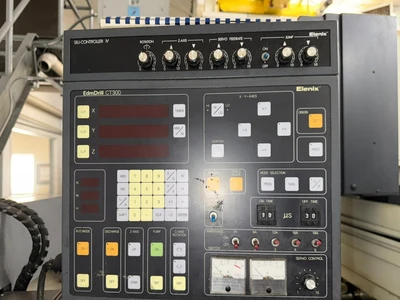

CURRENT EDM "SRJ-CONTROLLER IV":

"Core Functional Description:

 The system serves as the main axis rotation

 and feed speed controller, engineered with

 an integrated jump function. It provides

 manual and semi-automated adjustments

 necessary for precision fine-hole electrical

 discharge machining."

"Electrode & Spindle Control:

 Features a digital

 tachometer to monitor real-time spindle

 rotation speed (RPM) alongside dedicated

 adjustment knobs to fine-tune the speed for

 ultra-fine electrodes."

"Servo & Z-Axis Feed Regulation:

 Manages the Z-axis descent speed under manual

 control as well as the active servo feed

 rate during the sparking process (typically

 ranging up to hundreds of millimeters

 per minute)."

Gap Current Monitoring:

 Includes a digital ammeter that displays the

 immediate processing current passing through

 the discharge gap, allowing operators to

 monitor spark stability."

Data & Sample Hold:

 Provides control buttons (e.g., Data Hold)

 to freeze and sample the current digital

 readout for precise observation and

 troubleshooting."

** Entirely Original **

** Superior Condition & Appearance **

** Arriving Soon to our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call David at 973-497-7570
