USED 2014 Kent ATM-3VSF, AC Frequency Drivre, 3 HP, Acu-Rite DR

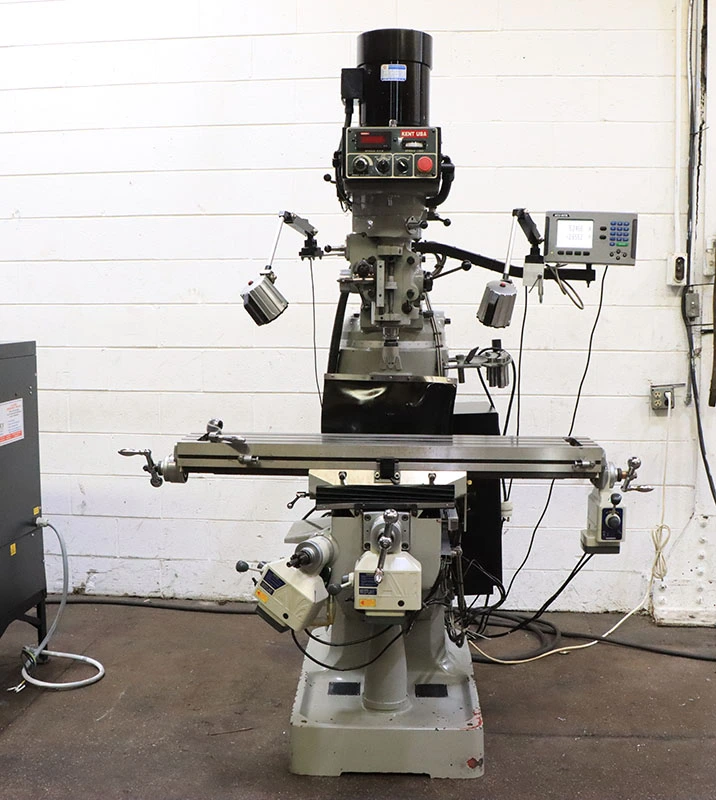

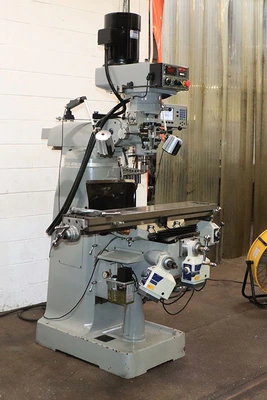

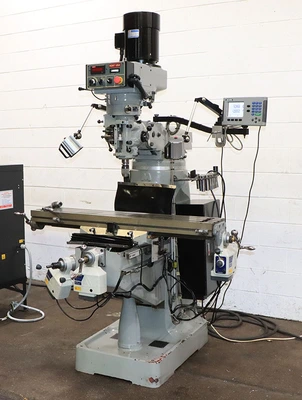

KENT VERTICAL MILLING MACHINE

MODEL: KTM-3VSF, S/N: 0312890,   MFG: 2014

SPECIFICATIONS:

TABLE WORKING SURFACE ......................... 9" X 49"

NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")

MAXIMUM TABLE LOAD CAPACITY ................... 750 LBS

RANGE: LONGITUDINAL, MANUAL (X) ............... 35"

             CROSS (Y) ........................ 12"

             VERTICAL, KNEE ................... 15"

             QUILL (Z) ........................ 5"

RAM TRAVEL .................................... 14.5"

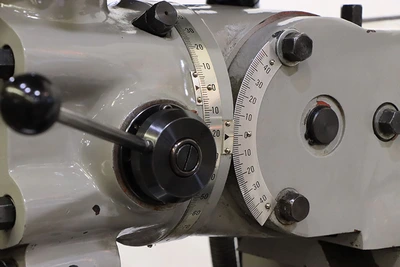

HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES

HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES

TURRET ROTATION ............................... 360 DEGREES

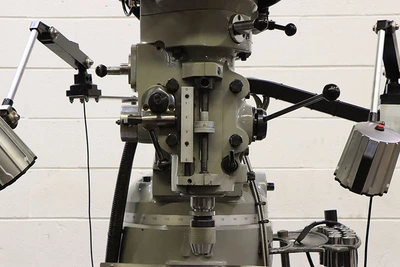

(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.

QUILL DIAMETER ................................ 3-3/8"

INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM

SPINDLE TAPER ................................. R-8

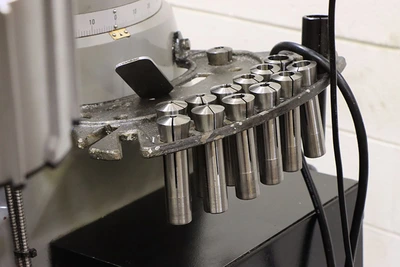

MAXIMUM COLLET CAPACITY ....................... 3/4"

APPRROXIMATE DIMENSIONS .................. 75" x 74" x 90"H

APPROXIMATE WEIGHT ............................ 2,600 LBS.

EQUIPPED WITH:

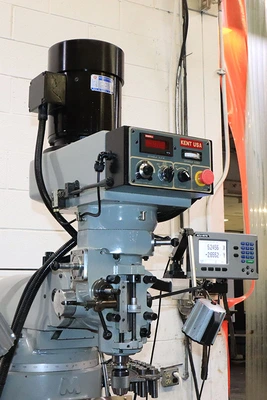

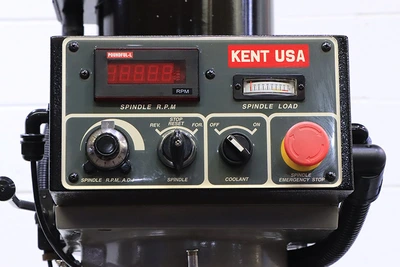

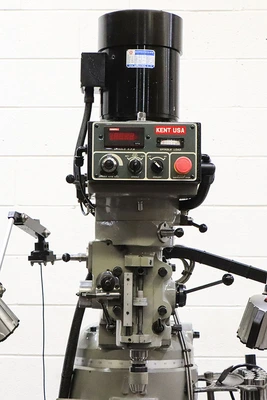

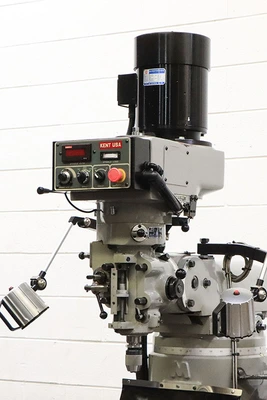

AC FREQUENCY INVERTER SPINDLE DRIVE

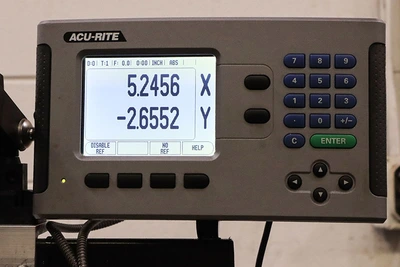

ACU-RITE TWO-AXIS DIGITAL READOUT

ALIGN POWER FEED FOR LONGITUDINAL TABLE TRAVEL

ALIGN POWER FEED FOR CROSS TABLE TRAVEL

ALIGN POWER FEED FOR KNEE VERTICAL TRAVEL

HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES

MEEHANITE CASTING

WORKLIGHT

ONE-SHOT LUBRICATION SYSTEM

3 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
