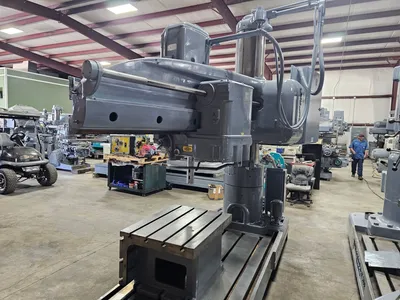

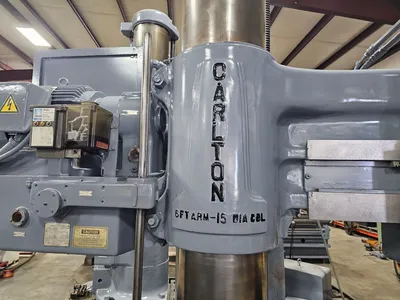

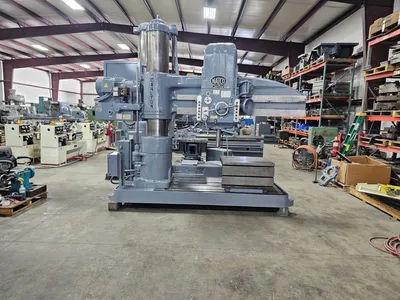

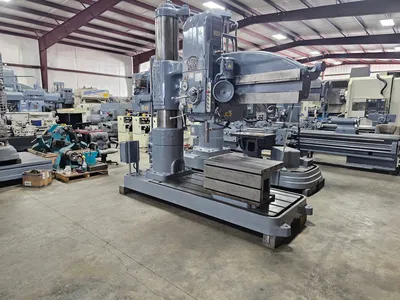

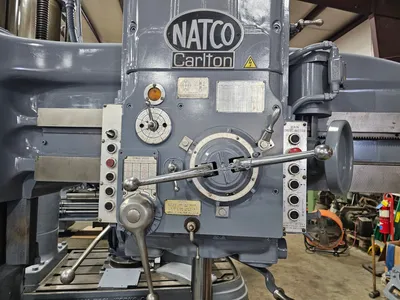

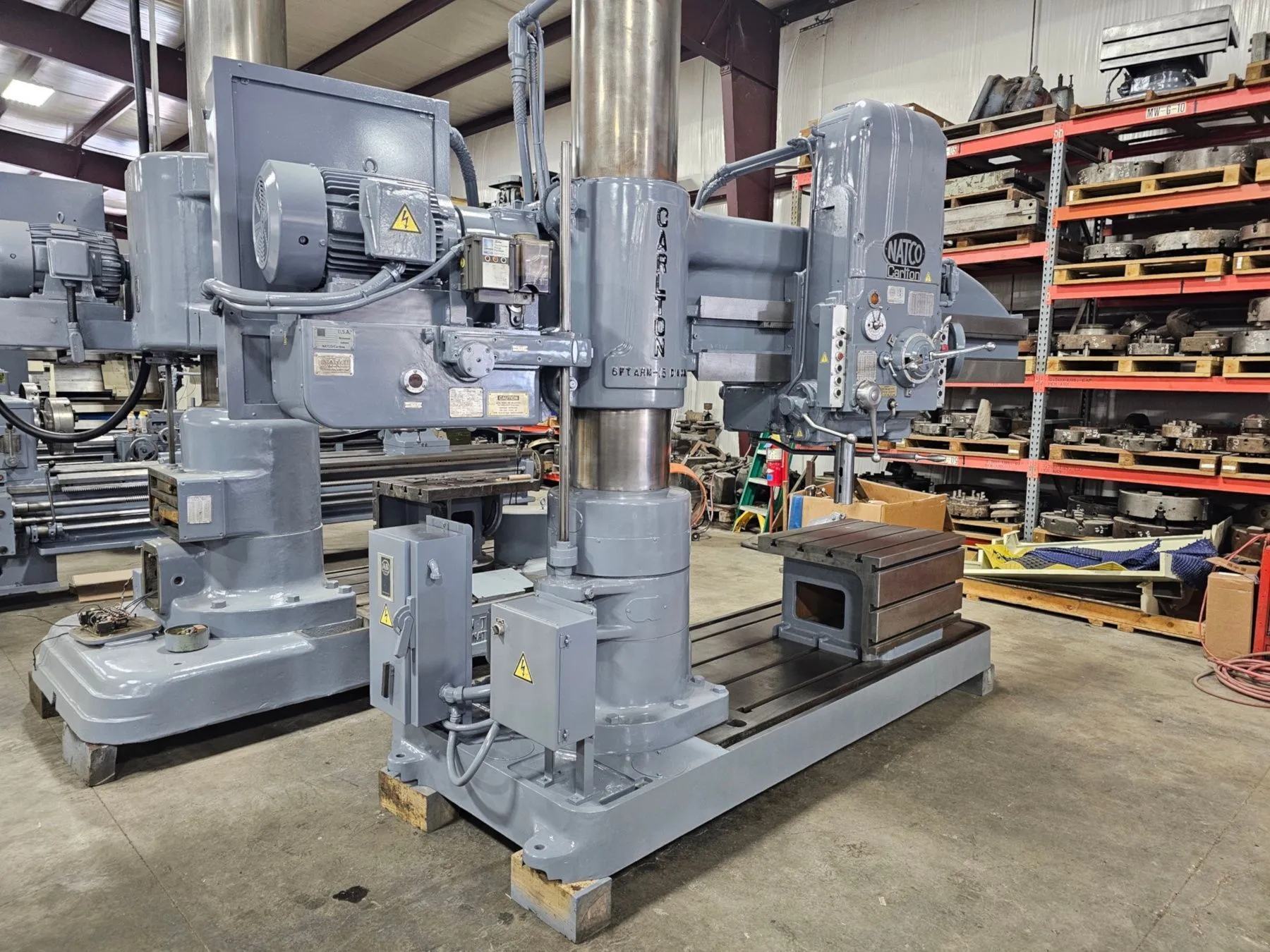

USED 1988 CARLTON 3A 6X15

Arm Size....................................6'
Column Diameter.............................15"
Maximum Height Under Spindle................72"
Minimum Height Under Spindle................10-1/2"
Spindle Speeds..............................15 To 1,500 Rpm's
Spindle Taper...............................# 5
Spindle Travel..............................18"
Spindle Diameter............................3-5/16"
Drill Diameter..............................0.250" To 3.5"
Spindle Feeds...............................004 To .125 I.P.R.
Tap Leads...................................8-1/2,11,14 & 18
Main Motor.................................15 Hp. 220/440 40/20 Amps.
Dimensions.................................R-L 120" X F-B 60"
Machine Height.............................11'7"
Machine Weight.............................17,500 Lbs.
Power Clamp................................Yes
Power Elevation............................Yes
Power Rapid Traverse To Head...............Yes
Coolant Pump...............................Yes

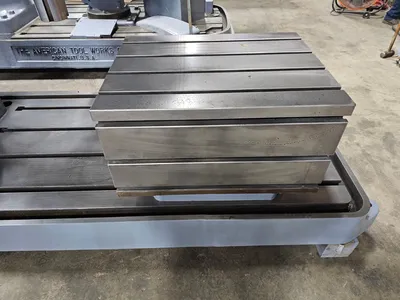

Plain Box Table............................Yes

Note: Machine is being clean, painted at the present time.
All oil and sight glasses will be changed.
Machine came out of the US Government

Condition: Excellent
