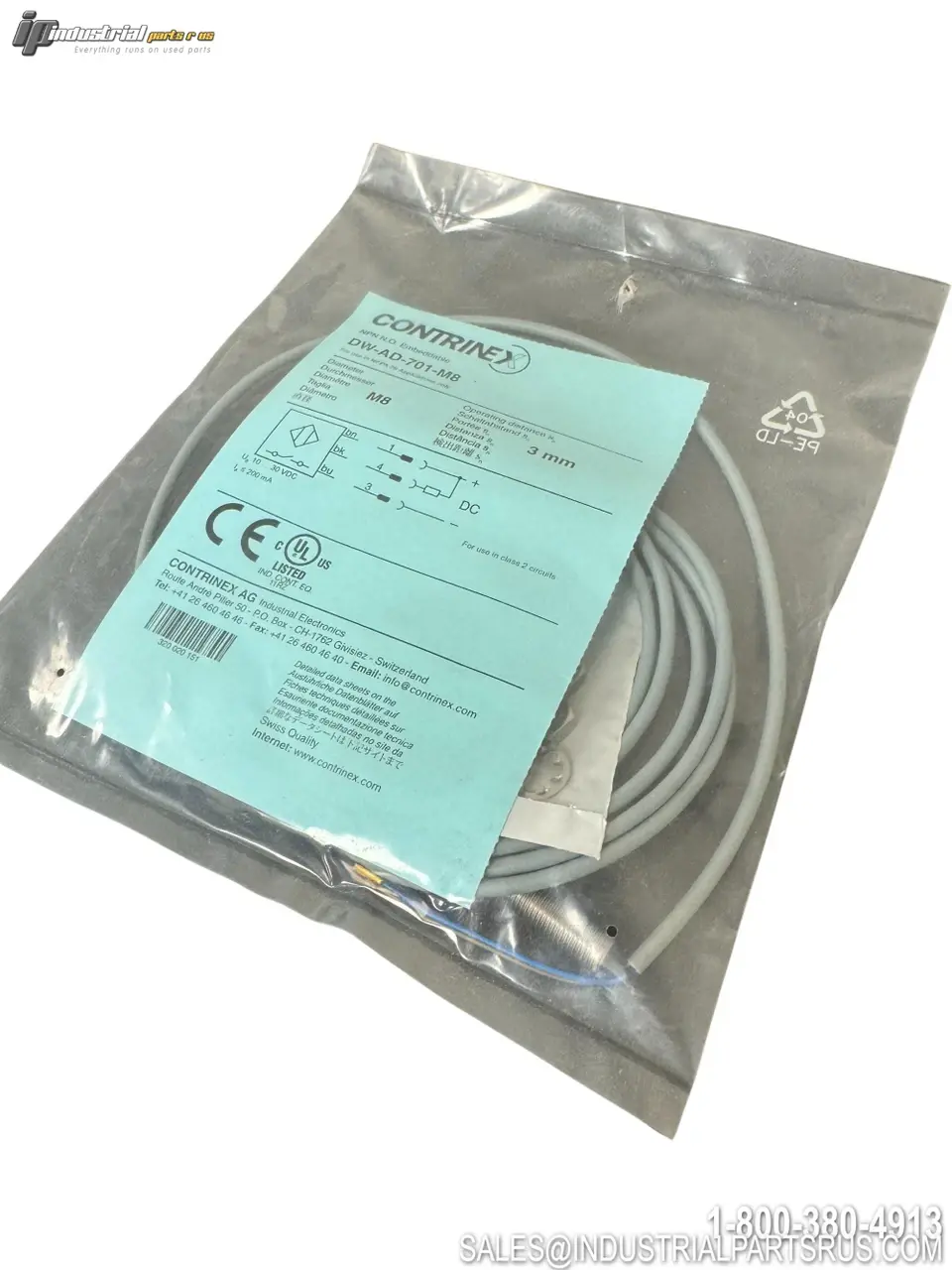

NEW CONTRINEX DW-AD-701-M8

The Contrinex DW-AD-701-M8 is an EXTREME series full stainless steel inductive proximity sensor featuring an M8 threaded barrel housing with a 3mm sensing range, NPN Normally Open (NO) output, and a 3-wire DC interface. Constructed from one-piece V2A/AISI 303 stainless steel with a hermetically sealed cable entry, it is corrosion-resistant, impervious to oil, and pressure-resistant to 100 bar. This sensor is rated IP68 and IP69K, making it ideal for the most demanding industrial environments including washdown, food processing, and high-pressure applications.
Specification
Value
Brand
Contrinex
Model / Part Number
DW-AD-701-M8
Series / Family
EXTREME (DW-AD-70x)
Sensor Type
Inductive Proximity Sensor
Housing Size / Thread
M8
Sensing Distance (Sn)
3 mm
Standard Target
9 x 9 x 1 mm, FE360 Steel
Output Type
NPN, Normally Open (NO)
Wiring
3-Wire DC
Supply Voltage Range
10 … 30 VDC
Max Output Current
≤ 200 mA
No-Load Power Consumption
≤ 10 mA
Residual Current
≤ 0.1 mA
Repeat Accuracy
≤ 0.12 mm
Switching Frequency (max)
≤ 1200 Hz
Mounting Style
Embeddable (Flush / Shielded)
Housing Material
Stainless Steel V2A / 1.4305 / AISI 303
Sensing Face Material
Stainless Steel V2A
Enclosure Rating
IP68 / IP69K
Pressure Resistance
100 bar
Ambient Operating Temperature
-25°C … +85°C
Connection Type
PUR Cable, 2 m, 3-wire
Max Cable Length
≤ 300 m
Max Tightening Torque
8 Nm
Residual Ripple
≤ 20% UB
Short-Circuit Protection
Yes
Voltage Reversal Protection
Yes
LED Indicator
Yes (process indicator)
Compliance Standard
IEC 60947-5-2
Weight
42 g
Contrinex Part Number
320-020-151
We warranty all items for 30 days from date of purchase.
