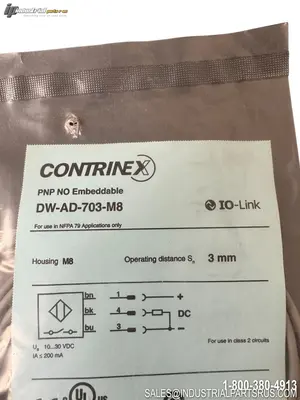

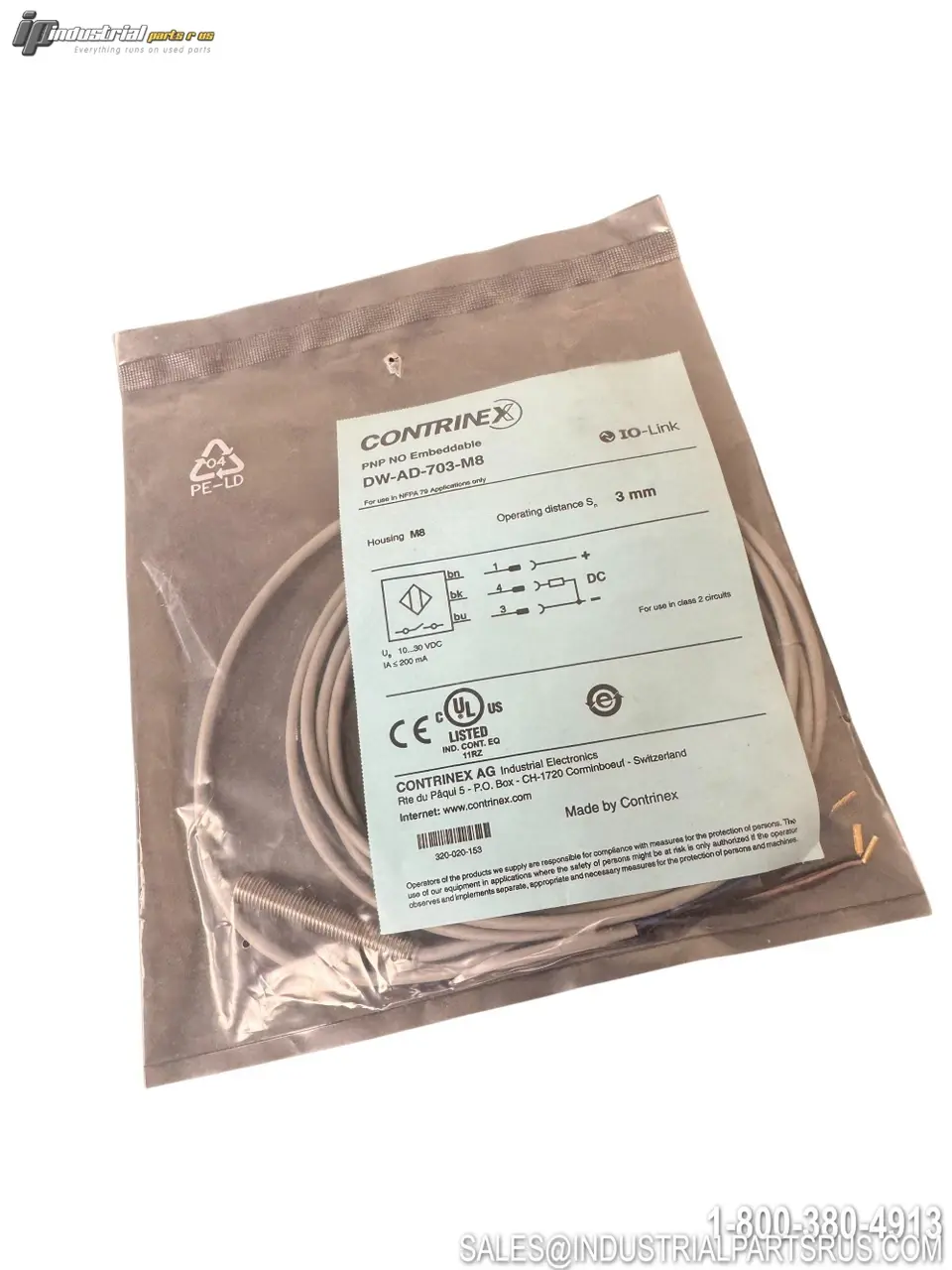

NEW CONTRINEX DW-AD703-M8

The Contrinex DW-AD703-M8 is an Extreme Full Inox Series 700 inductive proximity sensor featuring an M8 threaded stainless steel barrel. It delivers reliable non-contact detection of metallic targets with a 6mm nominal sensing range (actual sensing radius: 2.43mm) in a non-embeddable (non-flush) mounting configuration. The sensor operates on 3-wire DC with a PNP normally open output and supports IO-Link communication for smart factory integration.
Specification
Value
Brand
Contrinex
Model / Part Number
DW-AD703-M8
Manufacturer Part Number (MPN)
DW-AD-703-M8
Contrinex Order Code
330-320-000
Product Series
Extreme Full Inox Series 700
Sensor Type
Inductive Proximity Sensor
Thread Size / Housing
M8 x 1 mm (Threaded Barrel)
Sensing Range (Sn)
6 mm
Mounting Type
Non-Embeddable (Non-Flush / Unshielded per Radwell; Shielded per some distributors — see note)
Output Type
PNP, Normally Open (N.O.)
Interface / Communication
IO-Link
Wiring
3-Wire DC
Connection / Cable
PUR Cable, 2 m, 3-Wire
Supply Voltage
10 … 30 VDC
Current Type
DC
Max Output Current
200 mA
Housing Material
Stainless Steel V2A / 1.4305 / AISI 303 (Full Inox)
Body Length
22 mm
Enclosure / IP Rating
IP68 / IP69K
Operating Temperature
-25 … +85 °C
Switching Frequency (max)
1200 Hz
Weight
42 g
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
