Used

USED PFENING 36" IN-LINE FLOW-THROUGH CONVEYOR & SIFTER

California, United States
3,343Listings|150Followers
Overview
Pneumatic Conveyors

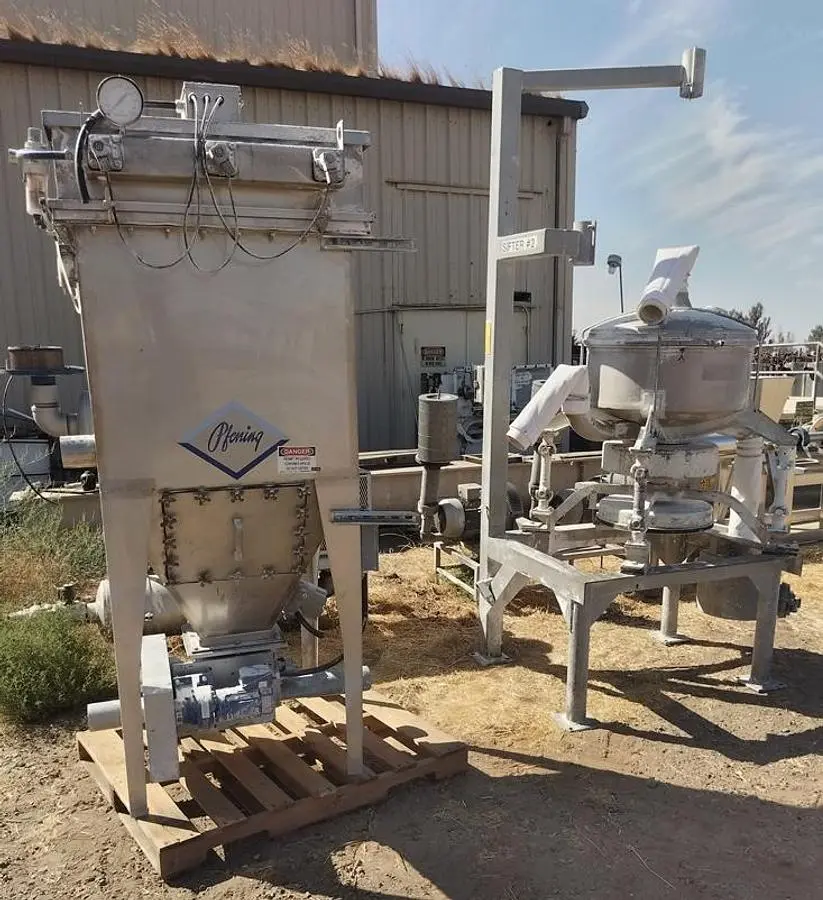

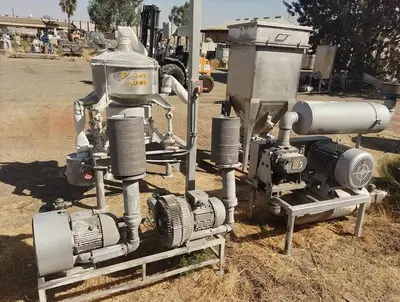

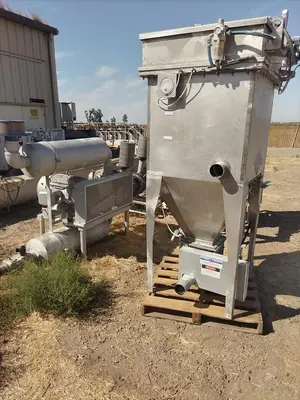

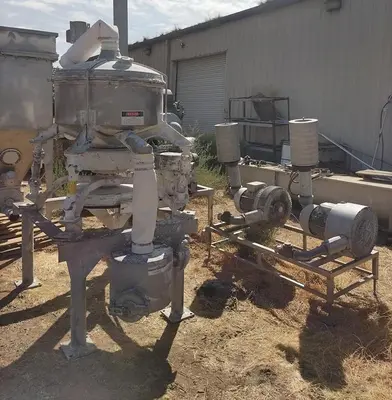

Pfening pneumatic conveying system with integrated in-line sifting and dust collection, previously used for transfer and screening of dry bulk ingredients from storage silos. System includes a Pfening stainless steel pneumatic in-line sifter, Pfening stainless steel dust collector/filter receiver with hopper-bottom discharge, Howden Roots rotary lobe conveying blower driven by a 40 HP motor, and (2) Nash-Elmo 6.3 kW regenerative blowers. Sifter features stainless steel construction, motor-driven screening assembly and flexible pneumatic conveying connections. Dust collector features stainless steel construction, upper filter housing, compressed-air filter cleaning components and hopper-bottom collection section. Includes associated support frames, piping and components as pictured.

Specs

Stock Number: 5991959
Manufacturer: Pfening
Model: 36" In-Line Flow-Through Conveyor & Sifter
Type: Pneumatic Conveying System
Sifter: Pfening Pneumatic In-Line
Dust Collector: Pfening Stainless Steel
Main Blower: Howden 40 HP Roots Rotary Lobe
Main Blower Motor: 1,775 RPM, 230/460V
Regenerative Blowers: (2) Nash-Elmo
Regenerative Blower Motors: 6.3 kW Each
Regenerative Blower Speed: 3,490 RPM
Previous Service: Dry Ingredient Handling
Basis: FOB
