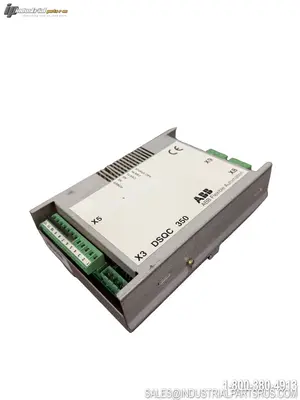

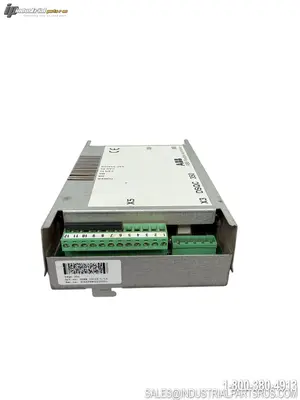

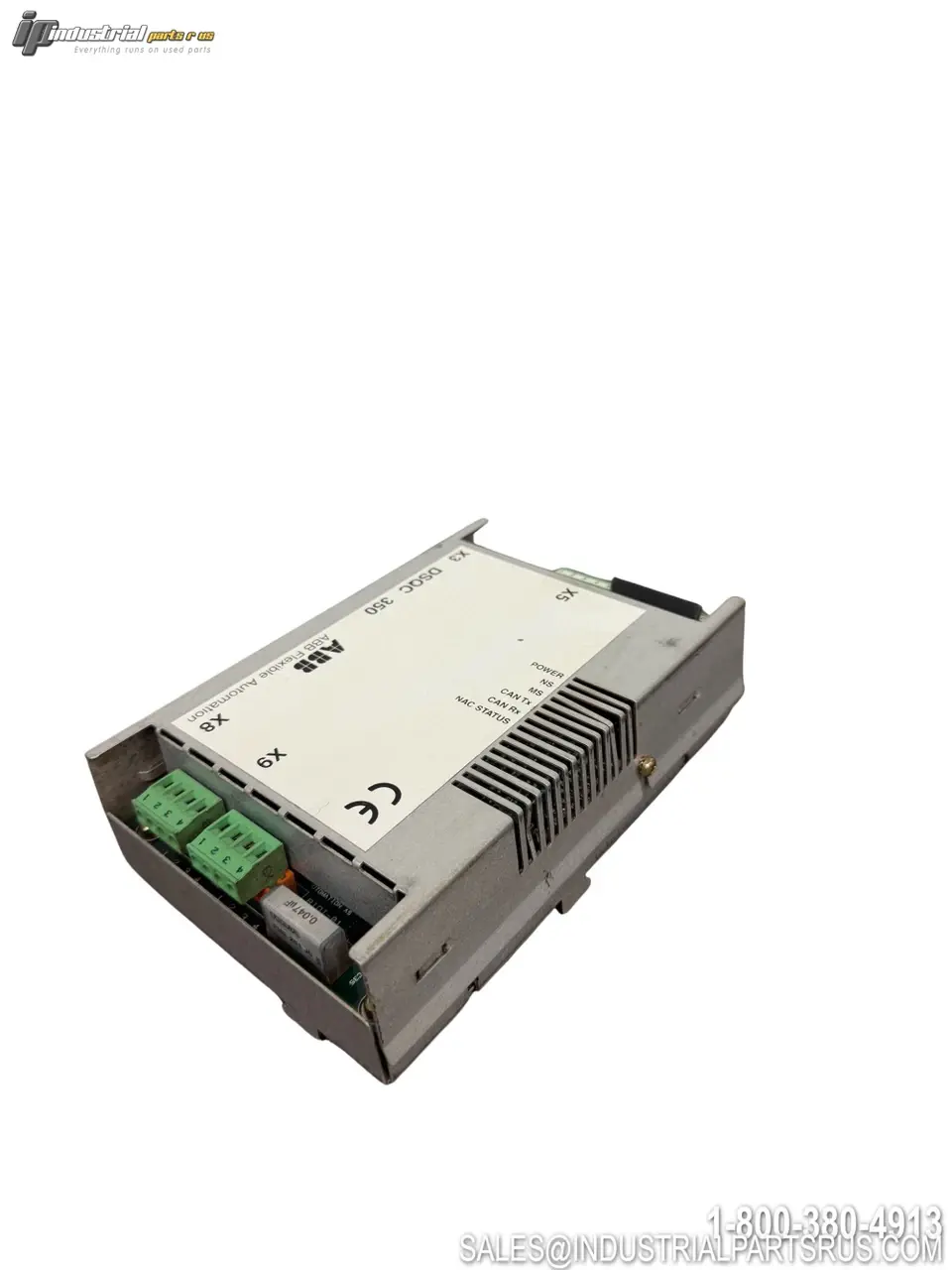

USED ABB DSQC 350 3HNE 00025-1/13

The ABB DSQC 350 (article number 3HNE 00025-1/13) is a DeviceNet/Allen-Bradley Remote I/O gateway module designed for use in ABB S4C and S4C+ robotic control systems. It functions as a slave gateway that bridges the ABB DeviceNet CAN fieldbus to the Allen-Bradley Remote I/O protocol, enabling seamless integration with Allen-Bradley PLCs and I/O infrastructure. The module supports up to 128 digital inputs and 128 digital outputs operating at 24 VDC and connects via the CAN/DeviceNet bus inside the robot controller cabinet.
Specification
Value
Brand
ABB
Manufacturer
ABB Flexible Automation (Asea Brown Boveri)
Model / Part Number
DSQC 350 3HNE 00025-1/13
Article Number (Base)
3HNE 00025-1
Revision
/13
Product Type
Communication Module — DeviceNet / Allen-Bradley Remote I/O Gateway
Function
Allen-Bradley Remote I/O Slave Gateway (DeviceNet to AB RIO protocol bridge)
Compatible Controllers
ABB S4C and S4C+ Robot Controllers
Communication Protocol (Robot Side)
DeviceNet (CAN bus)
Communication Protocol (Field Side)
Allen-Bradley Remote I/O (RIO)
Max Digital Inputs
128
Max Digital Outputs
128
I/O Voltage
24 VDC
DeviceNet Data Rate (CAN1)
500 Kbit/s (fixed)
DeviceNet Data Rate (CAN2)
125 / 250 / 500 Kbit/s (selectable)
Max Cable Length (DeviceNet)
100 m trunk + 39 m drop (CAN1); up to 500 m (CAN2)
Mounting Location
Inside or external to robot controller cabinet
Approximate Dimensions (W × H × D)
120 mm × 100 mm × 80 mm
Alternate Part Numbers
DSQC350, DSQC-350, 3HNE00025-1/13, 3HNE-00025-1/13
We warranty all items for 30 days from date of purchase.
