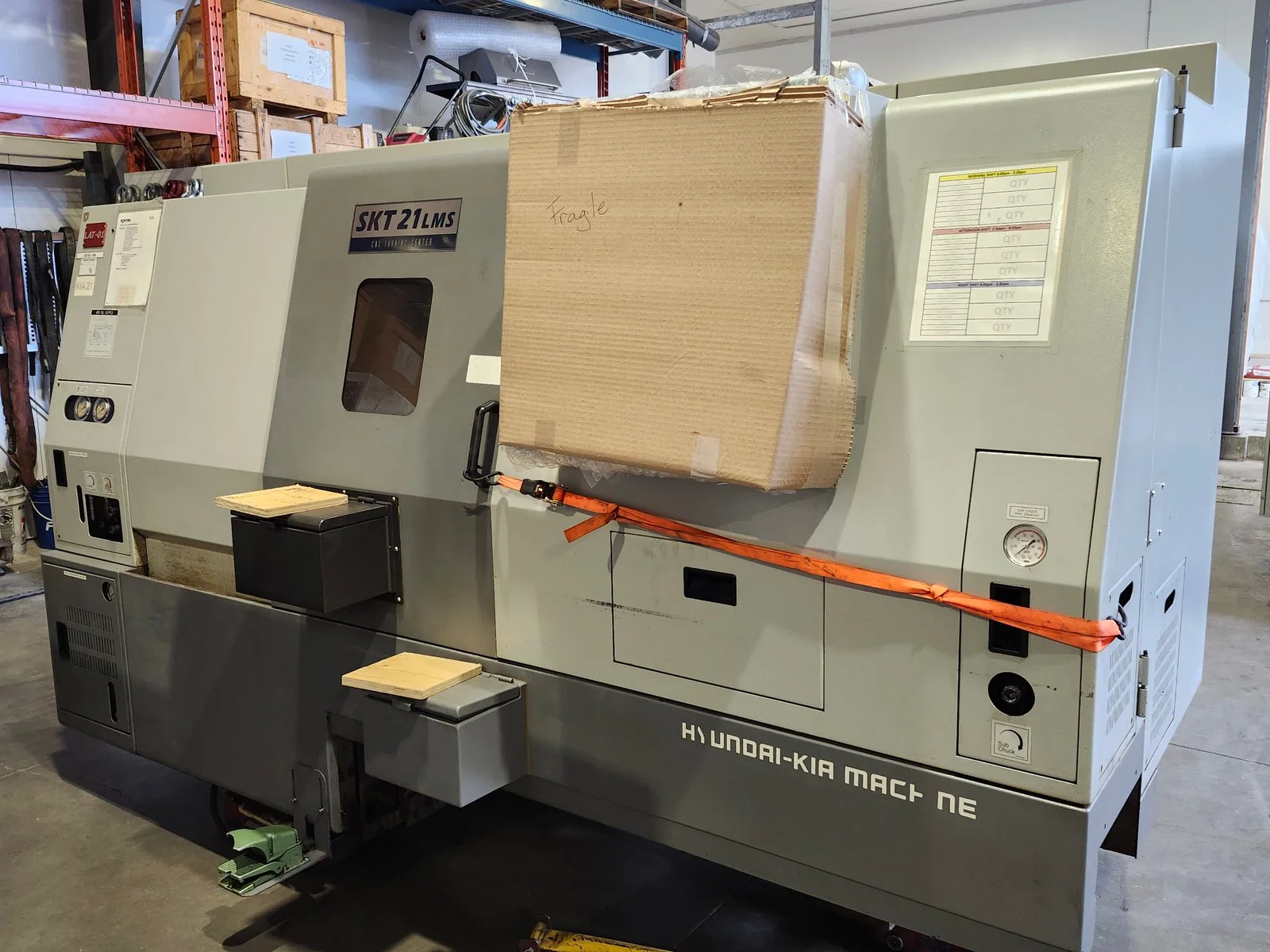

USED 2005 HYUNDAI SKT 21LMS

[2005 Hyundai SKT 21LMS]

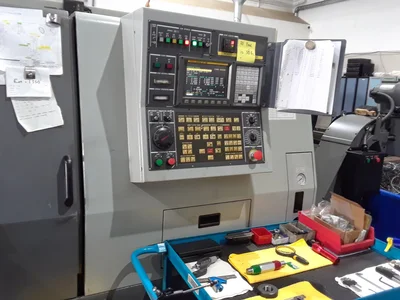

CNC Controller: Fanuc Std
Swing: 21.7" Std
Maximum Cutting Diameter: 13.8" Std
Maximum Workpiece Length: 20.9" Std
Travel X Axis: 8.7" Std
Travel Z Axis: 21.7" Std
Ways: Schneeberger Roller Guide Std
Spindles
Main Spindle: A2-6 Std

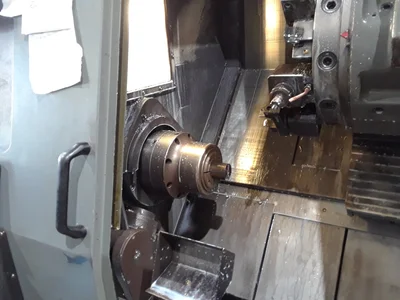

Second Spindle: Flat Nose Std
Max Bar Work Diameter – Left: 2.56" (Spindle Length 46.36") Std
Max Bar Work Diameter – Right: 1.375" Std
Max RPM – Left / Right: 4,000 / 6,000 rpm Std
C Axis – Left Spindle: C Axis Std
C Axis – Right Spindle: 5 Degree Indexing Std
Travel & Turret
Rapid Traverse X Axis: 1,417 ipm Std
Rapid Traverse Z Axis: 1,417 ipm Std

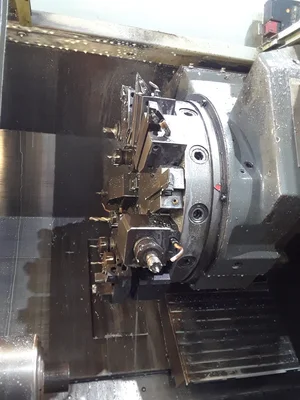

Turret: 12 Tools Std
Tool Size (Square Shank): 1" sq Std
Tool Size (Round Shank): 1.5" Std
Index Time – 1 Station: .28 sec Std
Machine Specifications
Chuck (Samwoo Kitagawa): 8" Main / 5.3" Second Std
Horsepower: 20 HP Std
Torque: 211.3 ft-lbs (L) / 17.4 ft-lbs (R) Std
Work Light: Yes Std
Weight: 9,480 lbs Std
Coolant System: Yes Std
Automatic Tool Setter: Yes Std
Standard Tooling Package: Yes Std
Parts Catcher: Yes Std
Tool Holders
VDI O.D. Holder – Front: 2 Std
VDI Face Holder: 1 Std
VDI Double O.D. Holder: 1 Std
VDI Double O.D. / I.D. Holder: 1 Std
VDI Double I.D. Holder: 2 Std
VDI I.D. Holder: 1 Std
VDI Live Tool Holder – Axial: 2 Std
VDI Live Tool Holder – Radial: 2 Std
Included Equipment
Air Blow: Yes Inc
Chip Conveyor: Included Inc
