USED 2008 KIWA KH 45

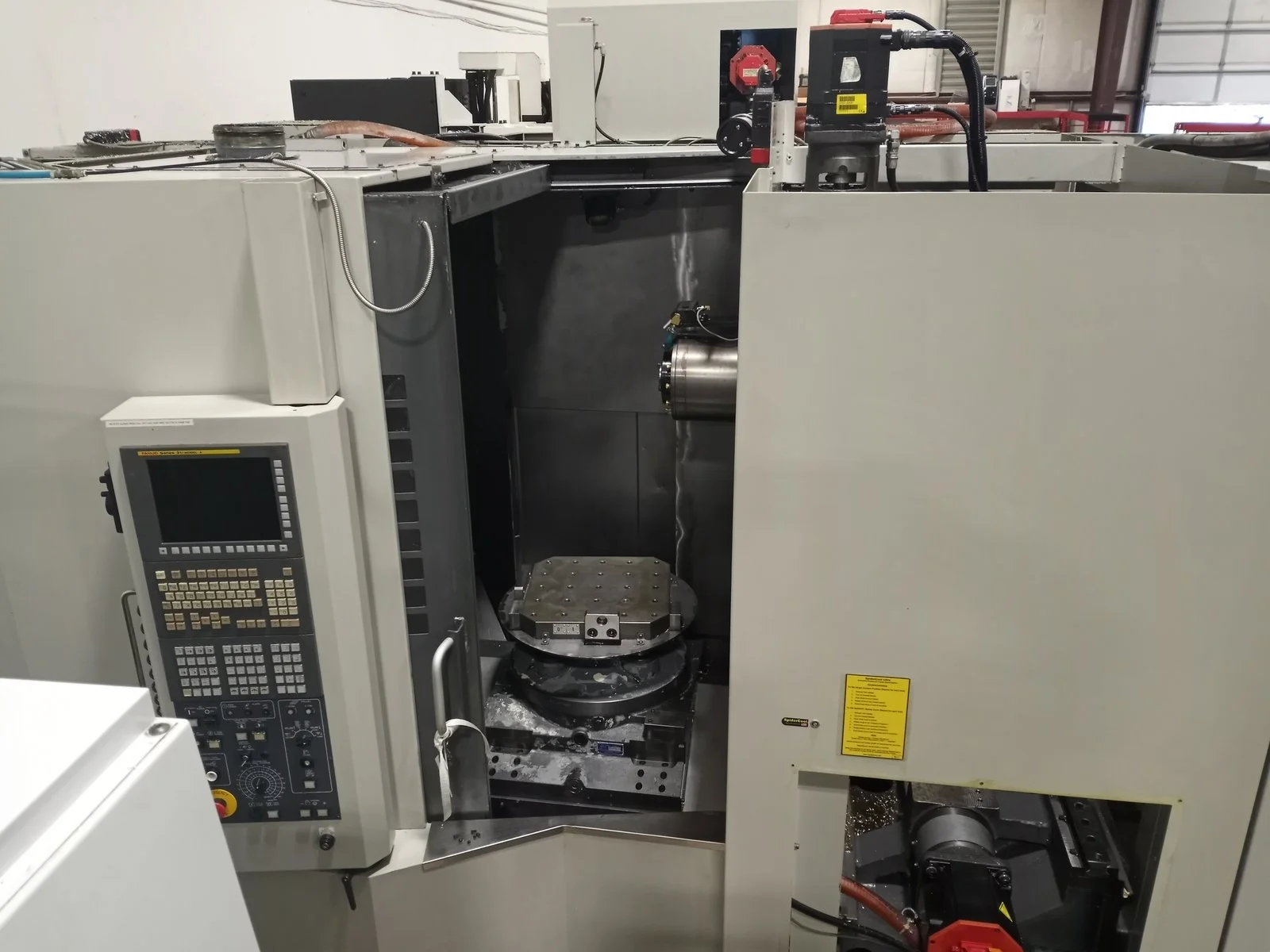

[Used 2008 KIWA KH45 Horizontal Machining Center]

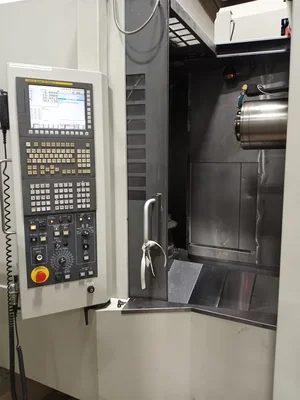

Controller: Fanuc 31i-MA Std
Table Size (L x W): 15.750" x 15.750" Std
Maximum Workpiece Weight: 1,100 lbs Std
Pallet Changer: 2 Pallets Std
Rotary Table: Full 4th Axis Std
Number of Main Spindles: 1 Std
Spindle Taper: CAT 40 Std
Horsepower (30-Minute Rating): 30 HP Std
Speed Ranges: 1 Std
Spindle Type: Fixed Std
Tooling System
Primary Tool Carrier: 60-Tool ATC Std
Tool Change Time: 0.90 sec, tool-to-tool Std
Maximum Tool Length: 15.700" Std
Maximum Tool Diameter: 2.800" with empty adjacent pockets Std
Maximum Tool Weight: 17.60 lbs Std
Axes & Travel
Number of Axes: 4 Std
X Axis Travel: 25.200" Std
X Axis Feed / Rapid Traverse: 1,181 / 2,362 ipm Std
Y Axis Travel: 24.000" Std
Y Axis Feed / Rapid Traverse: 1,181 / 2,362 ipm Std
Z Axis Travel: 26.800" Std
Z Axis Feed / Rapid Traverse: 1,181 / 2,362 ipm Std
B Axis Travel: 360° Std
B Axis Speed: 33 rpm Std
Machine Dimensions
Machine Dimensions (L x W x H): 95" x 179" x 109" Std
Machine Weight: 20,240 lbs Std
Spindle Nose to Table Edge: 30.7" Std
Spindle to Table Center: 3.9" Std
Equipped With
Chip Conveyor: Included Inc
