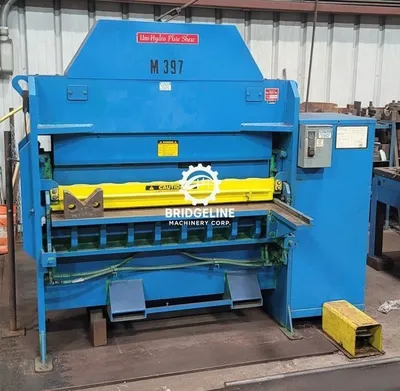

USED UNI-HYDRO 2551

GENERAL SPECIFICATIONS
.
More Photos Available Upon Request.
.
Manufacturer: Uni-Hydro
Model: 2551 / 1/4 x 51
Type: Hydraulic Power Squaring Shear
Rated Capacity: 1/4" x 51" Mild Steel
Maximum Cutting Length: 51"
Strokes Per Minute: 16 SPM
Blade Dimensions: 3/4" x 4" x 51"
Blade Cutting Edges: 4
Blade Rake: 1-1/4" Over 51"
Motor: 7.5 HP
Hydraulic Oil Capacity: 10 Gallons
Deck Height: 32"
Overall Dimensions: 80" W x 26" D x 72" H
Weight: Approximately 4,480 Lbs.
.
EQUIPPED WITH
.
36" Manual Back Gauge
24" Squaring Arm
Independent Hydraulic Hold-Downs
Center-Mounted Hydraulic Cylinder
Mechanical Pivot-Arm Linkage System
Three-Point Pressure Distribution
Fixed Low-Rake Blade Design
Electric Controls
Foot Switch Control
Four-Edge Shear Blades
Forklift Handling Provision / Overhead Lifting Eyelets

As-Is As Taken From Service
.
