NEW 2026 KENT HW-26120

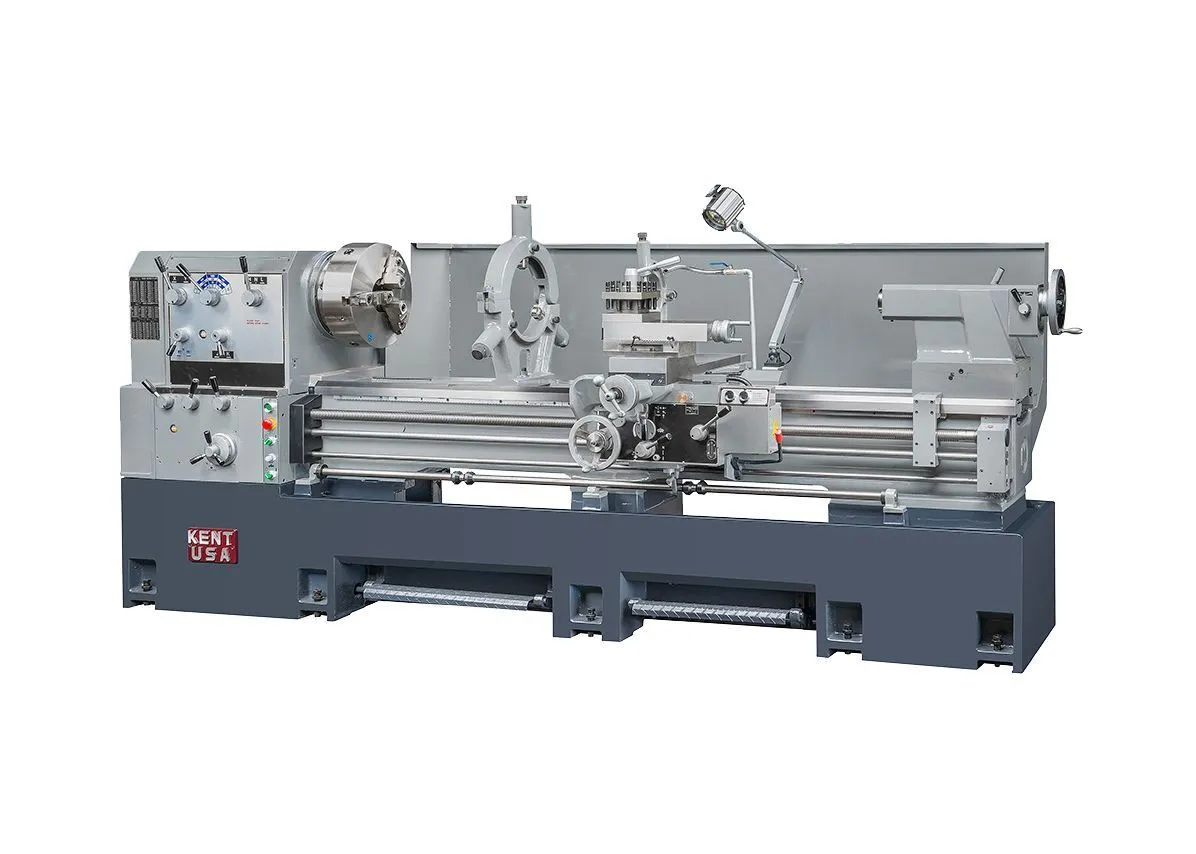

2026 KENT 26" x 120" Manual Lathe / Engine Lathe

Capacity
Swing Over Bed: 26 in.
Swing Over Cross Slide: 17.3 in.
Swing Over Gap: 35 in.
Distance Between Centers: 120 in.
Bed Width: 15.75 in.

Travels
Cross Slide Travel: 14.75 in.
Top Slide Travel: 8 in.
Tailstock Quill Travel: 6.5 in.

Spindle
Spindle Bore: 4.5 in.
Through-Hole Diameter: 4.5 in.
Spindle Nose: D1-11
Spindle Bore Taper: MT #7
Number of Spindle Speeds: 12
Spindle Speed Range: 10 to 1,000 RPM

Threading Capacity
Imperial Threads (Whitworth): 44 selections, 2-56 TPI
Metric Threads: 39 selections, 0.5-14 mm pitch

Feed Rates
Longitudinal Feed Range: 0.002 to 0.032 in./rev
Cross Feed Range: 0.001 to 0.0094 in./rev

Tailstock
Quill Diameter: 3.3 in.
Quill Taper: MT #5

Motors
Main Motor: 15 HP
Coolant Pump Motor: 1/8 HP

Standard Accessories
3-jaw chuck (15″)
Steady rest
Follow rest
Thread chasing dial
4-position tool post
4-position carriage stop
Coolant system with full-length splash guard

Optional Accessories
Digital Readout System
Aloris DA #5-SET (Tool post and 6 holders)
Royal spindle type live center
Zero-set 3-jaw chuck with back plate (Zero-set, 15″ D1-11)
Adaptor plate and rear 12″ 3 jaw chuck for back of spindle
Face plate (20″ D1-11)
Taper turning attachment
Micrometer carriage stop
