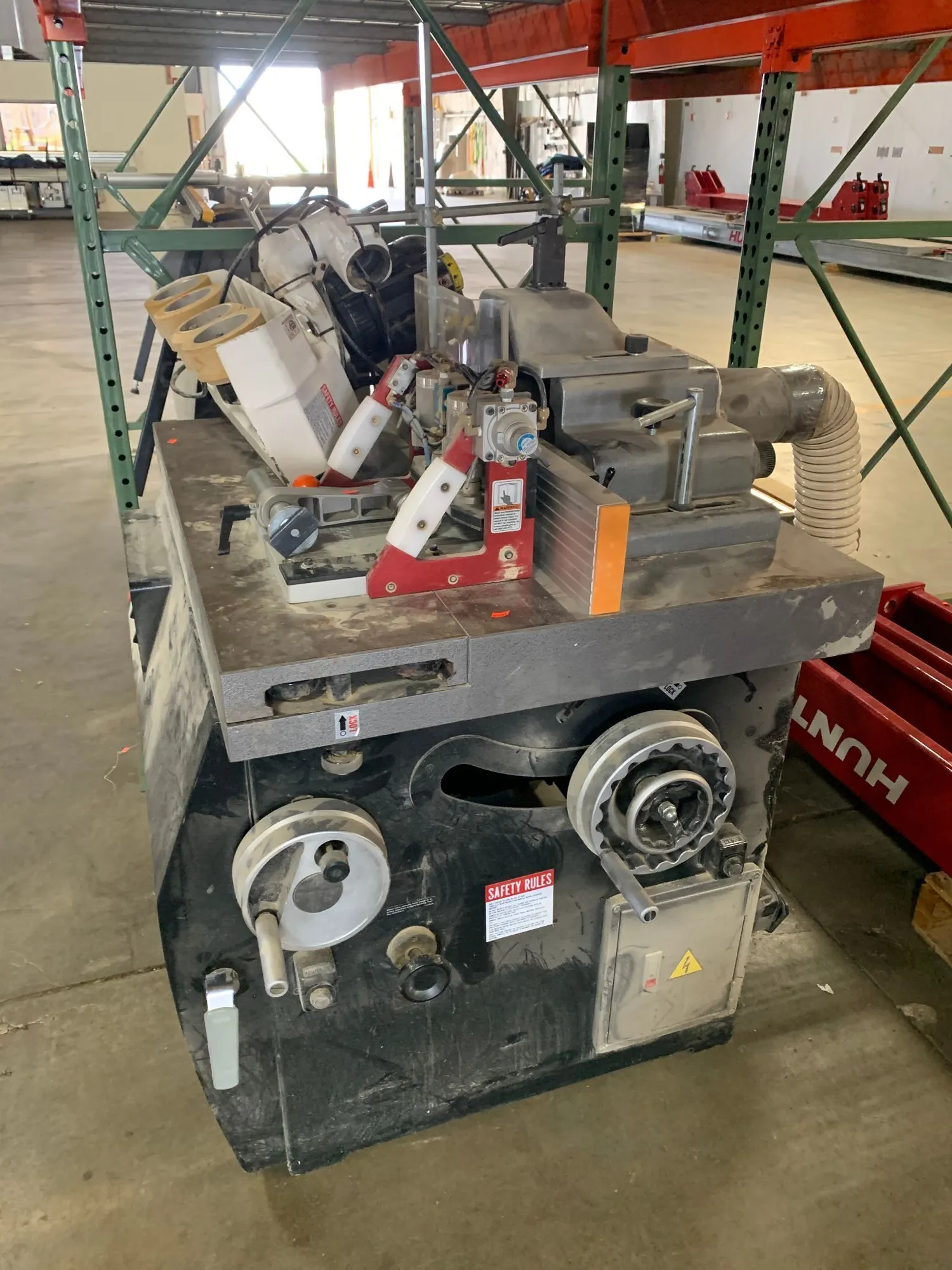

USED 2021 LAGUNA Laguna S|45T Industrial Shaper

The versatile 45° backward & 10° forward tilting spindle makes using a feeder much easier & keeps the cutting action close to the cast table rather than shaping from the top. Oversized cast table pre-drilled to accept most feeders & featuring sliding table with tenoning as standard. Complete with table & hold down clamp. The sliding table has a full 30” stroke from miter fence to center of spindle. Miter gauge adjusts +/- 45° The interchangeable spindle comes standard as 1-¼″, but other sizes including router collets are available. The fence is made from heavy cast iron & easily adjusts w micro-adjusters for both in/out feed. LED lights display the desired RPM. The S45T is available in both 1 phase & 3 phase. Other voltages also available upon request.

Hold Down Clamp: Included

Tenoning Table Adjustment: 7″ Slide To Spindle

Sliding Table Stroke: 19″ Right of Spindle

Sliding Table Stroke: 19″ Left of Spindle

Sliding Table Far Right: 30″ Spindle To Miter Gauge

Table Height: 35-⅜″

Capacity Under Nut: 5″/125mm

Spindle Stroke: 7″/180mm

Spindle: 1-¼″ Interchangeable

Max Tooling Diameter: 8-¼″/210mm Under Table

Max Tooling Diameter: 13″/335mm Above Table

Rotation: Forward/Reverse

Fence: Micro Adjust, Cast Body

Speeds: 3000/4000/6000/8000/10000 RPM

Readout: LED Lights For Speeds

Readout: Mechanical Tilt & Spindle Height

Feeder: Pre-drilled Left Back Corner

Router Collet: Accepts, Not Included

CAS Components

Weight (Net/Ship): 1056/1350 lbs

Shipping Dimensions (L x W x H): 49″ x 45″ x 50″
