USED SICK DSL-1205-GOM6C

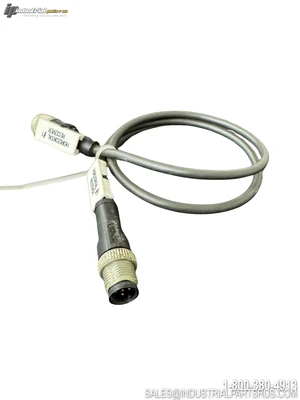

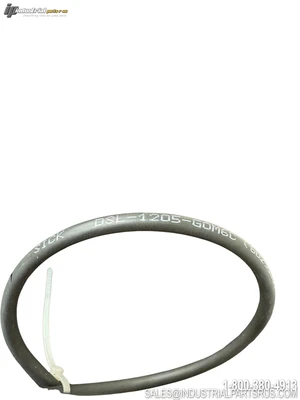

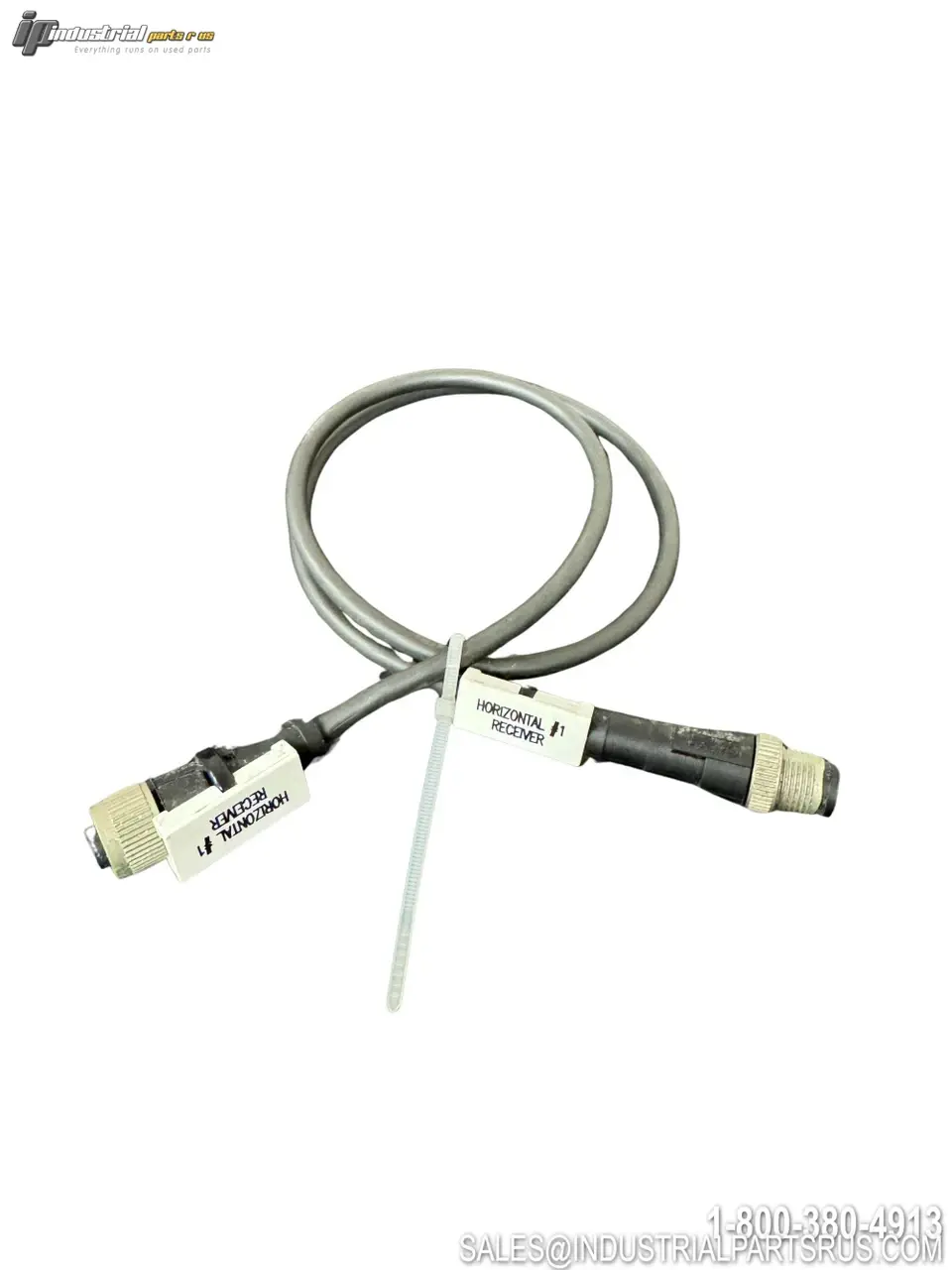

The Sick DSL-1205-GOM6C (part no. 6025930) is a double-ended sensor connection cable featuring M12 female straight to M12 male straight connectors, both 5-pin A-coded, with a 0.6-meter unshielded PUR halogen-free cable. It is designed for use in industrial sensor wiring applications, particularly for drag-chain (cable carrier) installations, and is compatible with SICK sensors and actuators using the standard M12, 5-pin A-coded interface. This product has been discontinued by SICK; successor products are available through SICK's official channels.
Specification
Value
Brand
Sick
Model / Part Number
DSL-1205-GOM6C
SICK Part No.
6025930
Product Family
DSL-1205 Series
Product Category
Connectors and Cables / Sensor Connection Cable
Connection Type Head A
Female connector, M12, 5-pin, straight, A-coded
Connection Type Head B
Male connector, M12, 5-pin, straight, A-coded
Number of Pins
5
Connector Coding
A-coded
Cable Length
0.6 m
Number of Wires
5-wire
Jacket Material
PUR (Polyurethane), halogen-free
Jacket Color
Black
Cable Diameter
5 mm
Conductor Cross Section
0.34 mm²
Shielding
Unshielded
Connector Material
TPU
Connector Color
Black
Locking Nut Material
Zinc die-cast, nickel-plated
Tightening Torque
0.4 Nm
Reference Voltage
≤ 60 V
Current Loading
4 A
Bending Radius – Flexible Use
> 10 × cable diameter
Bending Radius – Stationary
> 5 × cable diameter
Bending Cycles
≥ 4,000,000
Application / Suitability
Drag chain (cable carrier) use
Halogen-Free
Yes
Product Status
Discontinued
We warranty all items for 30 days from date of purchase.
