USED KEYENCE NX-50CL

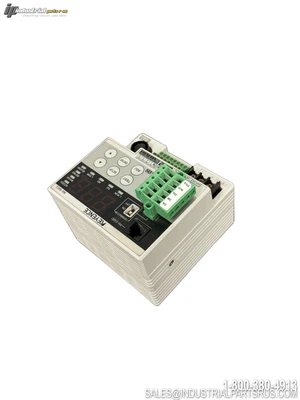

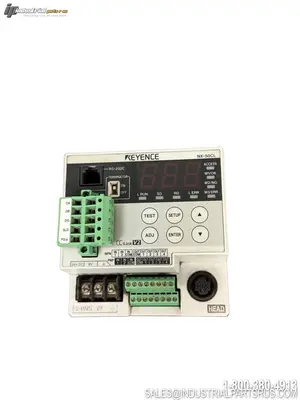

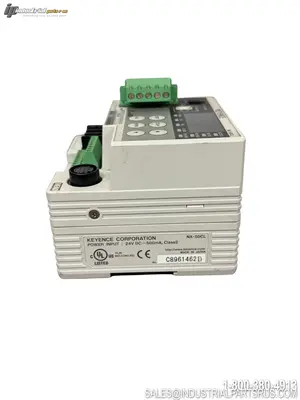

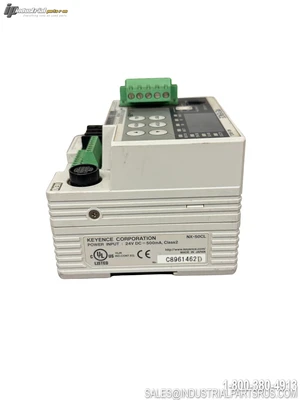

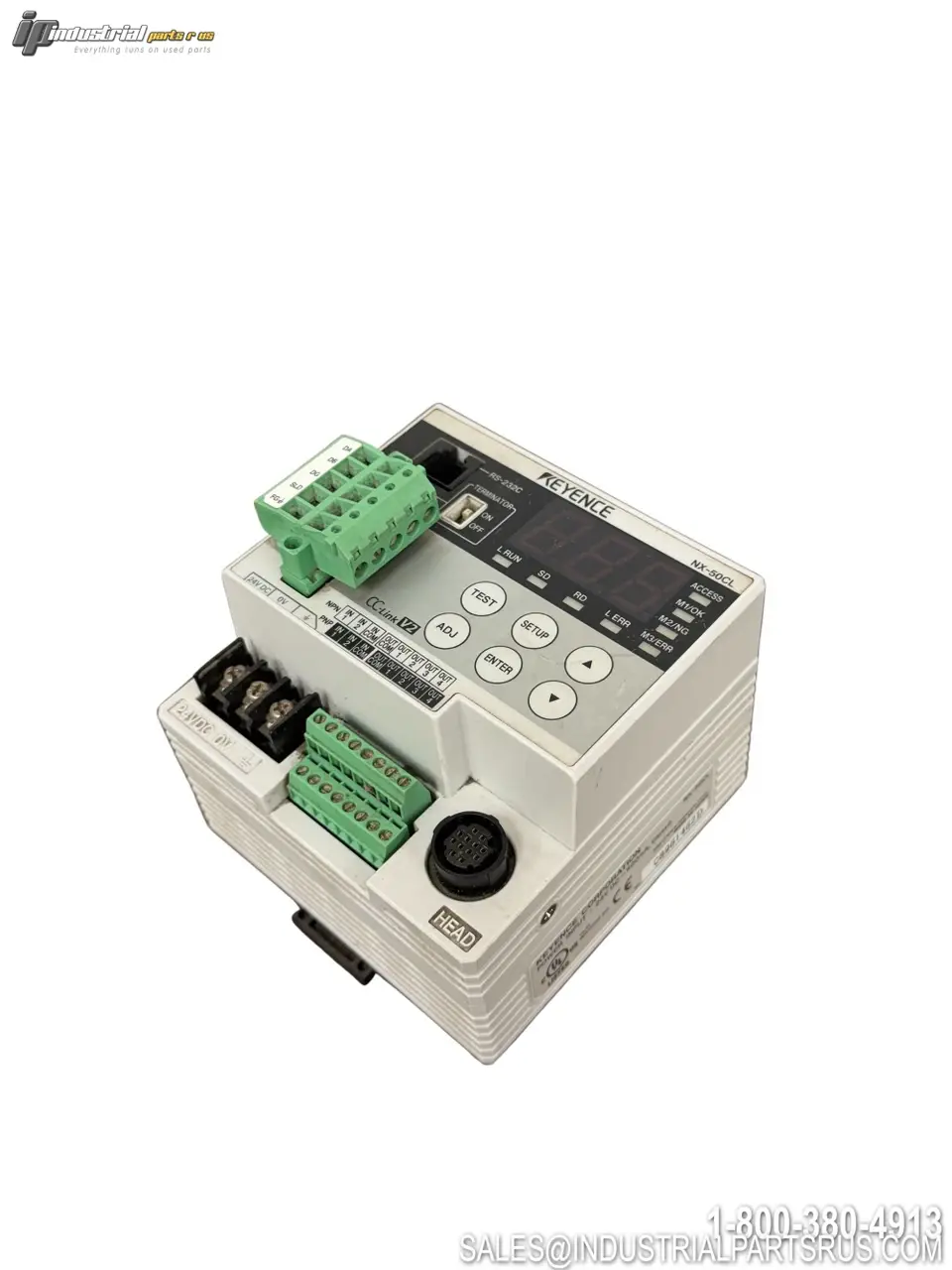

The Keyence NX-50CL is an industrial CC-Link communication controller designed to interface compatible Keyence equipment with an automation control network. The unit features a CC-Link V2 interface, RS-232C communication port, dedicated HEAD connection, digital inputs and outputs, front-panel display and setup controls, and status indicators for monitoring communication and operation.
Specification
Value
Brand
Keyence
Model / Part Number
NX-50CL
Product Type
CC-Link Communication Controller
Network Interface
CC-Link V2
Serial Interface
RS-232C
Power Input
24 VDC
Rated Current
500 mA
Power Classification
Class 2
CC-Link Terminals
DA, DB, DG, SLD, FG
Digital Inputs
2 (IN 1, IN 2)
Digital Outputs
4 (OUT 1–OUT 4)
I/O Configuration
NPN / PNP
Device Connection
Dedicated HEAD Connector
Controls
TEST, SETUP, ADJ, ENTER & Navigation Buttons
Status Indicators
L RUN, SD, RD, L ERR, ACCESS, M1/OK, M2/NG, M3/ERR
Additional Feature
CC-Link Terminator ON/OFF Switch
Certifications / Markings
UL Listed, CE
Manufacturer
Keyence Corporation
Country of Manufacture
Japan
We warranty all items for 30 days from date of purchase.
