Blohm Jung Vario 630-D CNC Surface Profile Grinder (2010),2 Motorized Rotary Disc Diamond Dressing Units. 20" x 12.5" Magnetic Chuck/Table, 9.3kW, 4200 RPM, Creep Feed Capable
| Table-W | 11.81" | 299.97 mm |
| Table-L | 23.6" | 599.44 mm |
| Horz/Vert | Horz | Horz |
| Power | 12.5 hp | 9.3 kW |
| Grinding Wheel Width | 1.97" | 50.038 mm |
| Grinding Wheel Dia. | 11.81" | 299.97 mm |
| Dimensions | 98" x 94" x 90.5" | 98" x 94" x 90.5" |
| Weight | 10,582 | 10,582 |

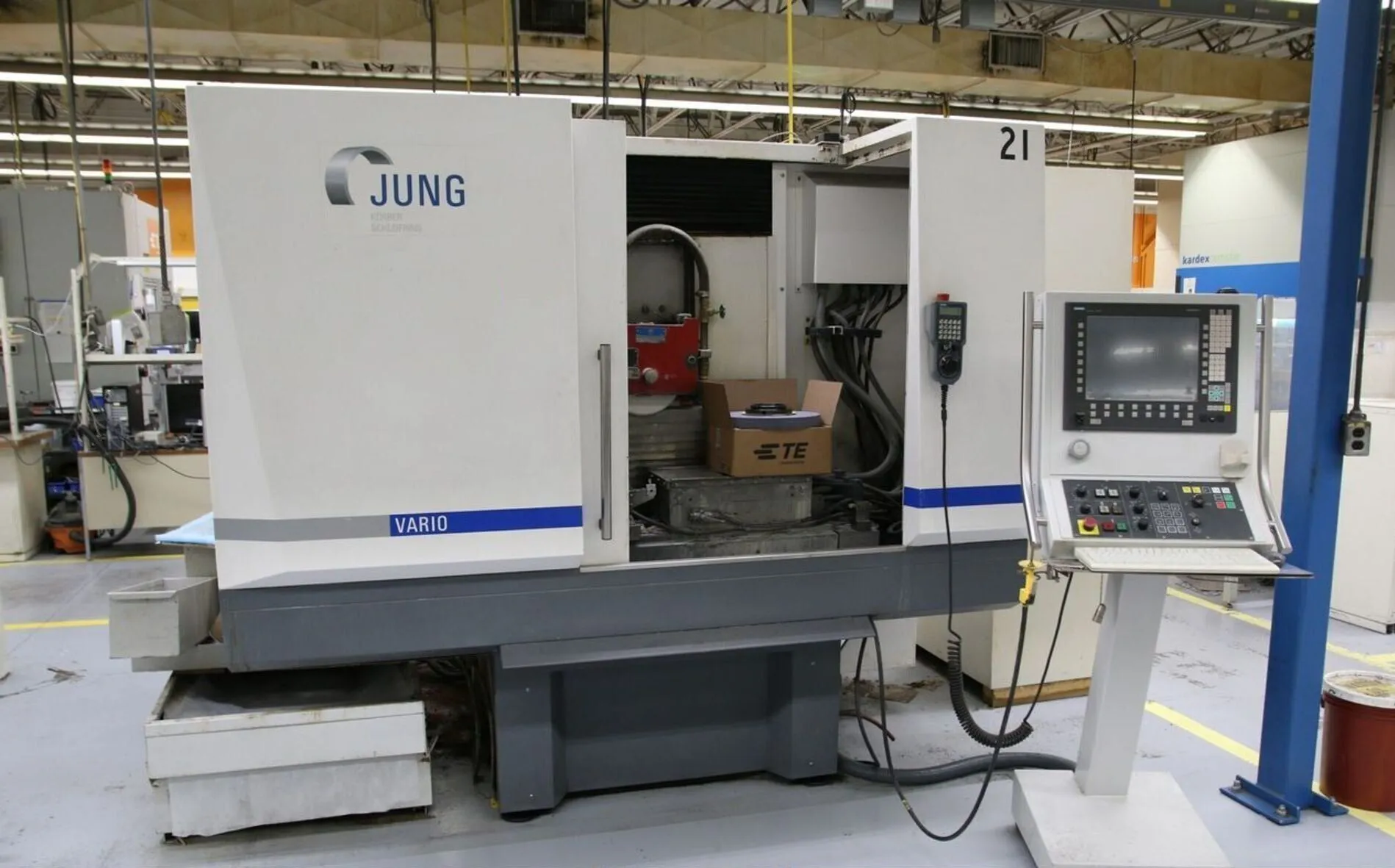

Blohm Jung Vario 630-D CNC Surface Profile Grinder (2010)
Y-axis travel: 485 mm
Z-axis travel: 335 mm
X-axis travel: 750 mm
Main Motor: 12.47kW
Speeds: 800-4200 RPM
Control: Siemens CNC
2 Motorized Rotary Disc Diamond Dressing Units. 20" x 12.5" Magnetic Chuck/Table, 9.3kW, 4200 RPM, plunge, transverse and creep feed grinding functions, single point dresser, Creep Feed Capable
