USED REB IVS-8

Manufacturer Information

Manufacturer: REB Inc.

Model: IVS-8

Type: Inline 8-Head Piston Filler / Depositor

Year of Manufacture: 2020

Controls: Allen Bradley PLC & HMI

Reservoir: 40-gallon stainless steel

🔹 Product Description

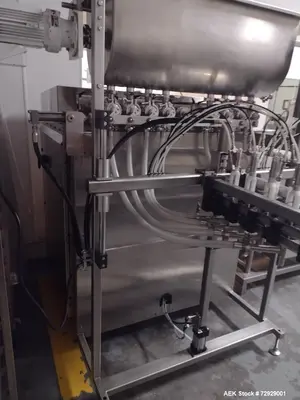

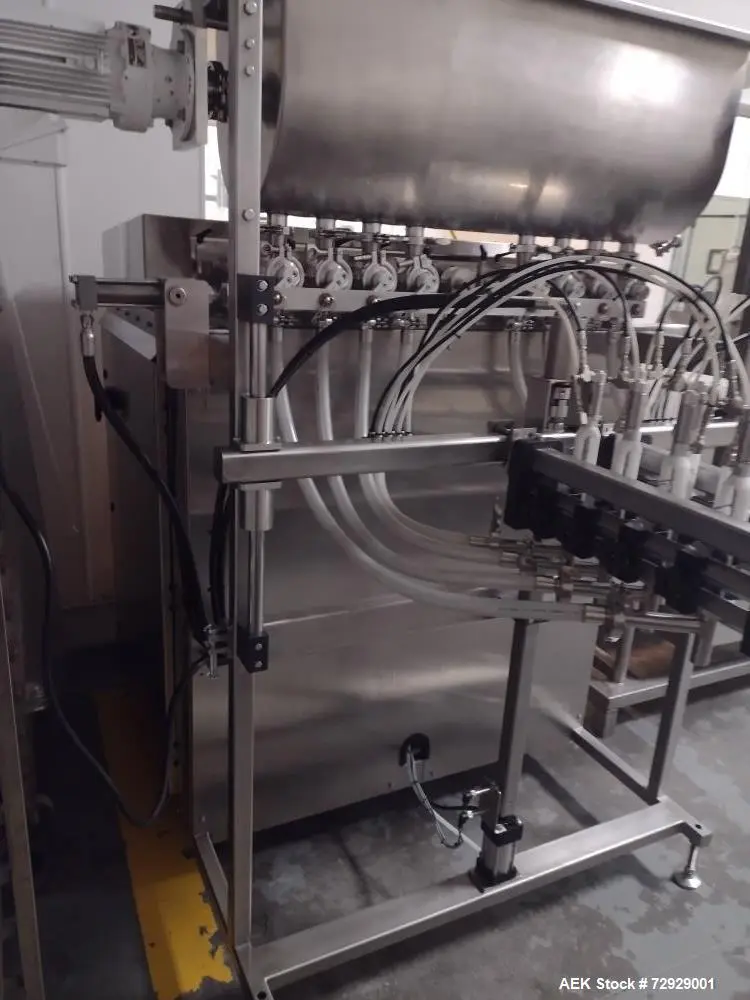

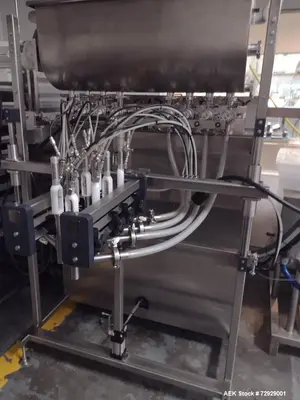

This Used REB Model IVS-8 Inline Piston Filler is a high-precision, high-speed depositor designed for medium- to low-volume fills of semi-viscous and viscous products. Built in 2020, this model features eight stainless steel piston heads with 1" diameter cylinders, supporting a fill volume range of 0.5 oz to 4.3 oz (15ml to 127ml).

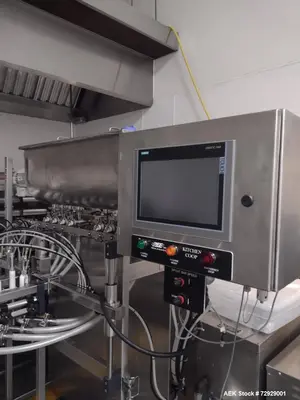

Equipped with positive shut-off nozzles and powered by an Allen Bradley PLC with touchscreen HMI interface, it delivers accurate dosing with an error margin of ± 0.5%. The system includes a 40-gallon stainless steel reservoir and is capable of reaching speeds up to 127 containers per minute (CPM). Previously used to package breakfast mix.

🔹 Specifications

Model: IVS-8

Filler Type: Inline Piston Depositor

Number of Heads: 8

Cylinder Diameter: 1"

Fill Volume Range: 0.5 oz to 4.3 oz (15ml to 127ml)

Speed Capability: Up to 127 CPM

Accuracy: ± 0.5% of fill weight

Construction: 316 Stainless Steel contact parts

Reservoir Capacity: 40-gallon stainless steel tank

Nozzles: Positive shut-off for clean fills

Controls: Allen Bradley PLC

Operator Interface: Allen Bradley HMI touchscreen

Last Product Run: Breakfast mix (semi-viscous)

Year Built: 2020

🔹 Applications
Perfect for mid- to high-speed dosing of semi-viscous or viscous food, health, cosmetic, and industrial products. Ideal for:

Food production (batters, mixes, sauces)

Cosmetic creams and gels

Pharmaceutical and nutraceutical liquids

Personal care products

Chemical pastes or thick fluids

Condiments, honey, nut butters (small doses)

🔹 Products It Can Be Used For

Breakfast or pancake mixes

Yogurt and dairy-based sauces

Mayonnaise and mustard portions

Lotion samples or cosmetic creams

Pharmaceutical syrups or gels

Nutritional supplement shots

Essential oil blends

Liquid soaps or detergents

Salad dressings (small fill sizes)

Liquid or paste-based food packets
