USED HEATCRAFT FCB10SM

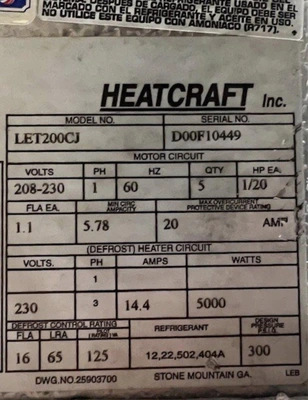

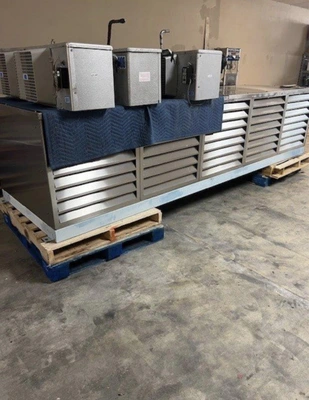

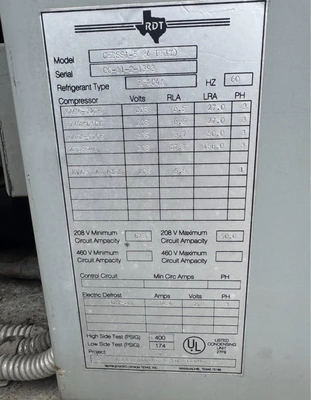

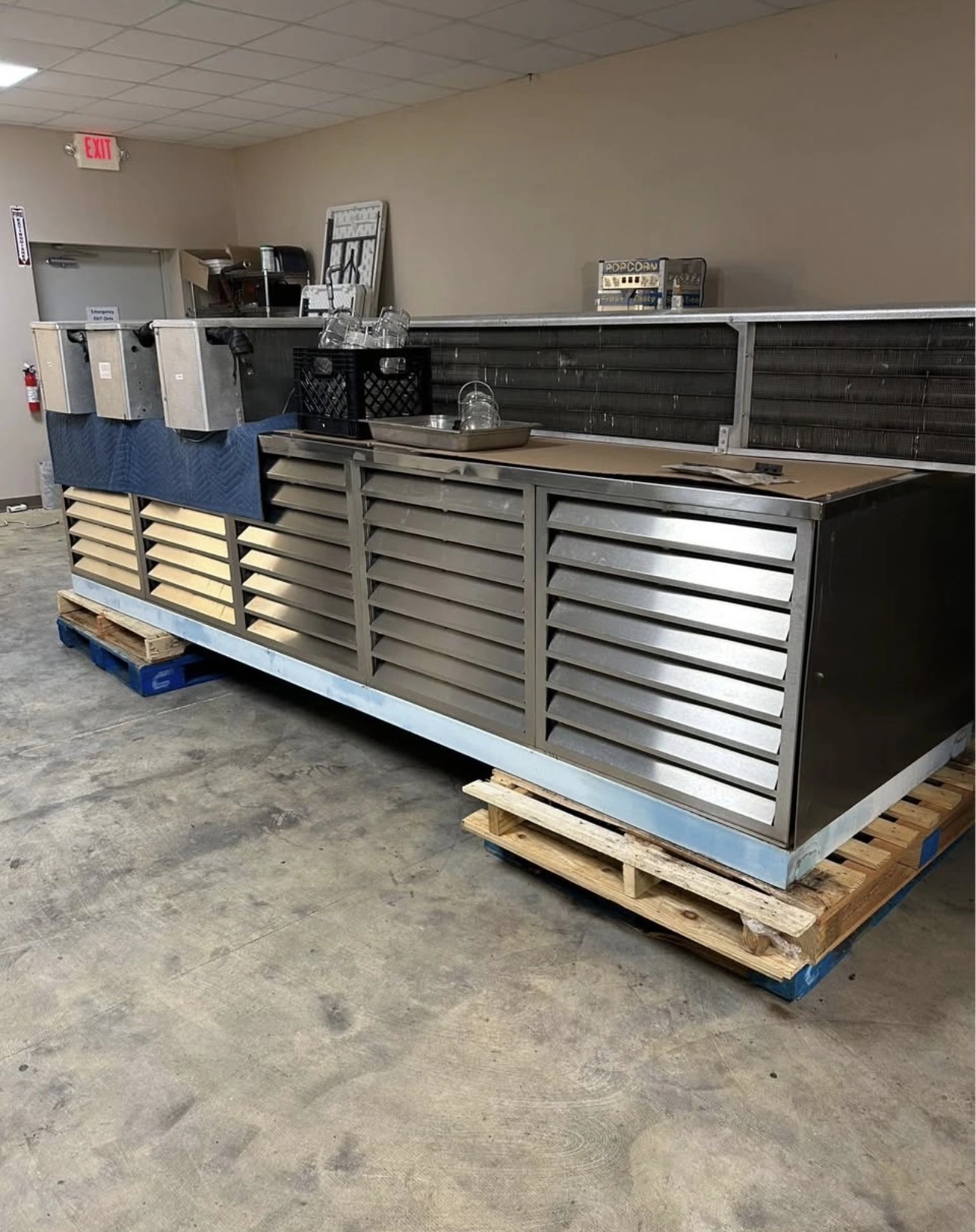

Multiple walk-in cooler and freezer compressor/condenser units, removed from service, mounted as one bank with a vented enclosure for roof mounting (see photo — units sit on a raised platform/curb, ready to lift onto a roof or rack). Unit 1 — RDT Condensing Unit (2 Fan) — Cooled 12' x 9' Walk-In Cooler (Qty 2) • Model: CHDSS1-5 (4 unit) • Serial: 00-11-2-1393 • Refrigerant: R-404A, 60Hz • Compressors: 2x KAGA-010E (208V, 6.5 RLA/27.0 LRA, 3PH), 1x KAKA-020E (208V, 8.7 RLA/50.0 LRA, 3PH), 1x ZF18K4E (208V, 27.7 RLA/156.0 LRA, 3PH) • Evap fan motors: 208V, 5.5 RLA, 1PH • 208V Circuit Ampacity: 62.0 min / 90.0 max • Electric Defrost: LET-200, 14.4A, 208V, 3PH • High side test: 400 PSIG / Low side test: 174 PSIG • UL Listed Condensing Unit 27F9 • Mfr: Refrigerated Design Texas, Inc., Waxahachie, TX Unit 2 — Heatcraft Condenser (2 Fan) — Cooled 19' x 8' Walk-In Freezer • Model: ADT130AK, Serial: T14D13013 • Motor: 115V, 1PH, 60Hz, Qty 2, 1/15 HP each • FLA: 1.0 ea. / MCA: 2.3 / MOPD: 20A • Refrigerant compatible: R-12, R-22, R-502, R-404A • Design Pressure: 300 PSIG • UL Listed Unit Cooler 848L, NSF7 Unit 3 — Heatcraft Condenser (5 Fan) — Cooled 19' x 14' Walk-In Cooler • Model: LET200CJ, Serial: D00F10449 • Motor: 208–230V, 1PH, 60Hz, Qty 5, 1/20 HP each • FLA: 1.1 ea. / Min Circ Ampacity: 5.78 / Max Overcurrent: 20A • Defrost Heater: 230V, 3PH, 14.4A, 5000 Watts • Refrigerant compatible: R-12, R-22, R-502, R-404A • Design Pressure: 300 PSIG Unit 4 — Heatcraft Condenser (2 Fan) • Model: ADT130AJ, Serial: D00G07437 • Motor: 115V, 1PH, 60Hz, Qty 2, 1/20 HP each • FLA: 2.1 ea. / Min Circ Ampacity: 4.73 / Max Overcurrent: 20A • Refrigerant compatible: R-12, R-22, R-502, R-404A • Design Pressure: 300 PSIG • UL Listed Unit Cooler 848L, NSF7 (1997)
