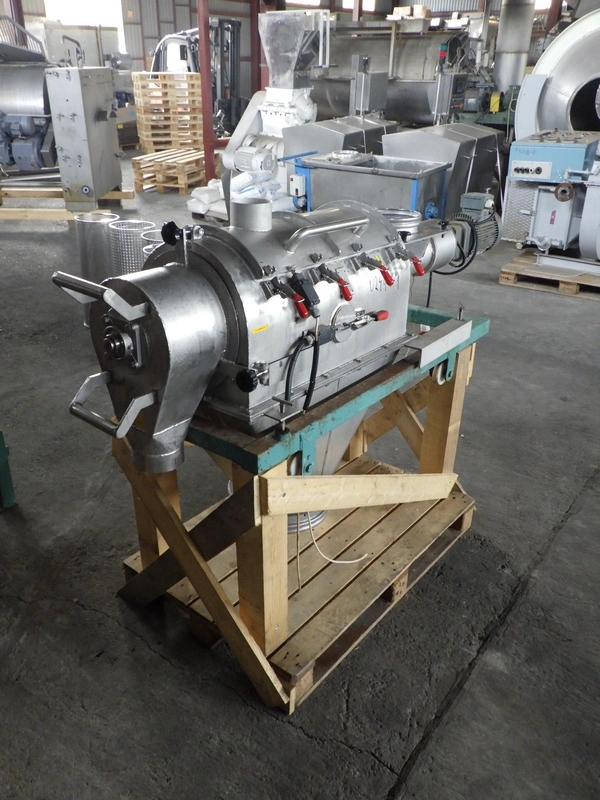

Jauhetekniikka Cylindrical Rotary Siefter

Used cylindrical rotary sifter by Jauhetekniikka (FI). Screen insert has internal dimensions: diameter 293 mm x length 775 mm. Product inlet has diameter 216 mm. Feeding via screw into screening chamber. Stainless steel shaft with three horizontaly bolted bars is driven by el motor 3 kW, 2800/553 rpm, 230/400 V, 50 Hz. Sifted product outlet has diameter 310 mm, outlet of not sifted particles has diameter 133 mm. Screening chamber has inspection manway with dimensions: width 297 mm x length 595 m, with lid closed on 4 clamps. On side walls there are two additional inspections manways - each with diameter 100 mm. Siefter is mounted on mobile carbon steel cart. Last time used in food industry. Shipping dims: L 220 cm x W 80 cm x H 160 cm.
