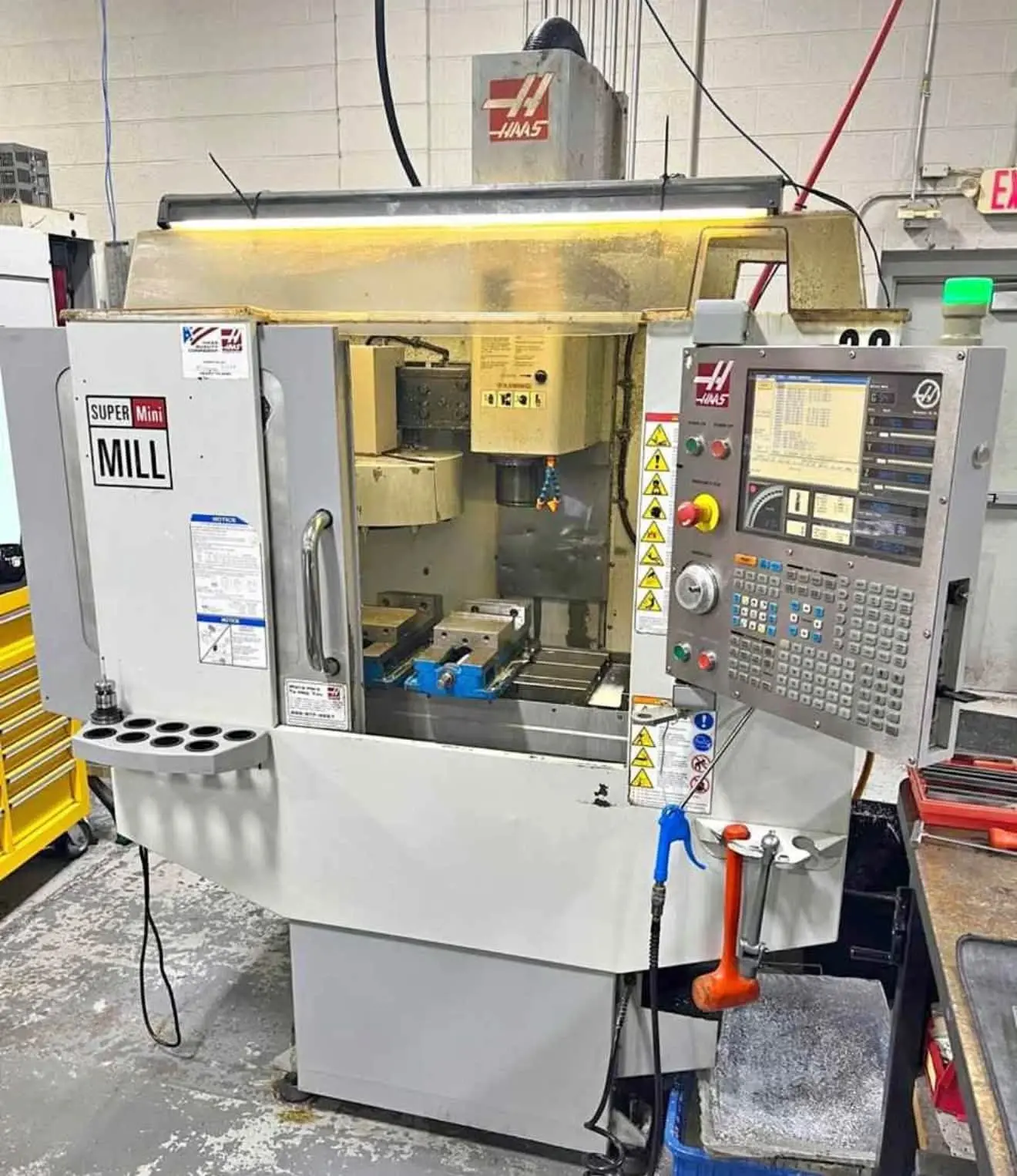

USED 2008 HAAS SUPER MINI MILL
Overview
Used HAAS Super Mini Mill features Renishaw probe, 16"x12"x10" travel, 15 HP spindle, 10,000 RPM, 10 ATC, max load 500 lbs, 28.75"x12" table. Requires 3-phase power, 90psi air.
Specs
Table to get this under a 7 ft. garage door
X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 28.75" x 12"
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Dimensions: 68" x 104" x 98"
Weight: 7,200 LBS
Equipped With
It requires 3-phase power and 90psi air to run
It comes with a Renishaw probe and rigid tapping
