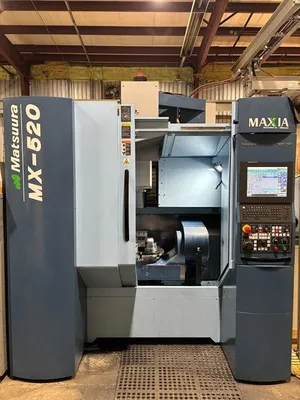

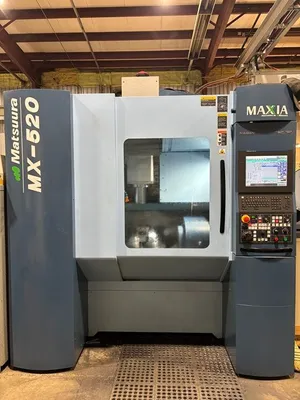

USED 2019 MATSUURA MX-520
Specs
Specifications (subject to buyer verification):
Table Size: 500 mm
X Travel: 630 mm
Y Travel: 560 mm
Z Travel: 510 mm
Spindle Taper: Cat 40 - Big Plus
Max Spindle Speed: 20,000 RPM
Spindle Motor: 25 HP
ATC Tool Capacity: 60 tools
Rapid Traverse X: 30 m/min
Rapid Traverse Y: 30 m/min
Rapid Traverse Z: 30 m/min
Max Table Load: 200 kg
5-Axis Capable: Yes

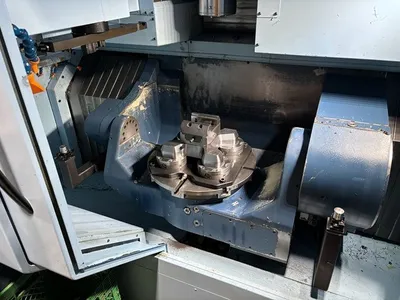

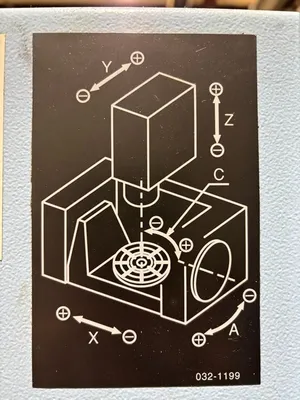

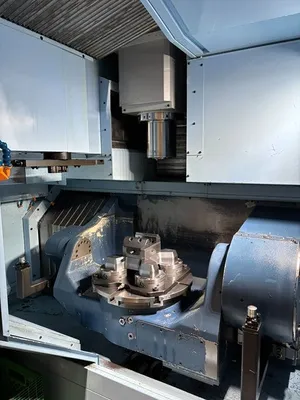

Axis Configuration: Trunnion (Table/Table)
Simultaneous Axes: 5-Axis Simultaneous (Full)
Trunnion / Rotary Table Diameter: 500 mm
A-Axis Travel: -125 Deg to +10 Deg
C-Axis Travel: Full 360 Deg
Rotary Table Max Load: 200 kg

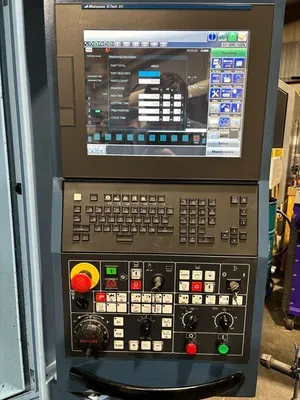

CNC Control: Matsuura G-Tech 31i
Coolant Type: Flood, Through Spindle, Bed Wash, High Pressure
Coolant Pressure: 300 psi
Machine Weight: 9,500 kg
Equipped With
Equipped With (subject to buyer verification):

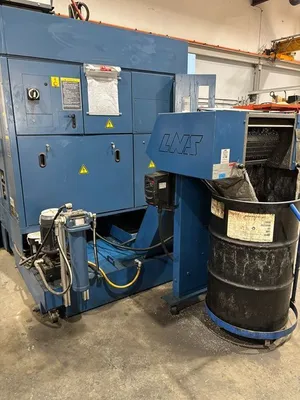

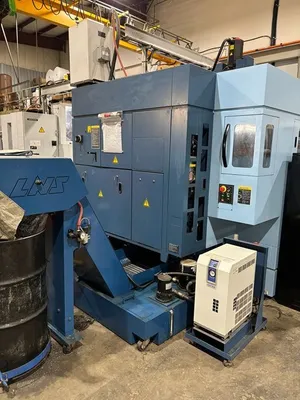

Rear Discharge Chip Conveyor

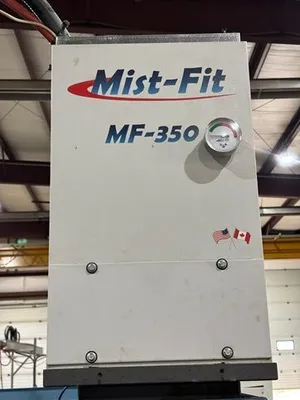

Mist-Fit (MF-350) Coolant Mist Extractor,

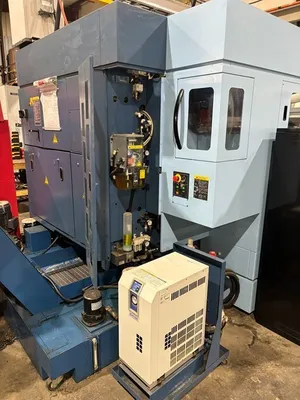

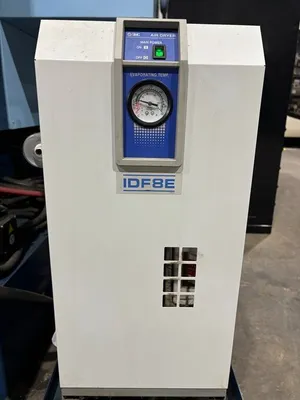

SMC - Air Drying Unit - External,

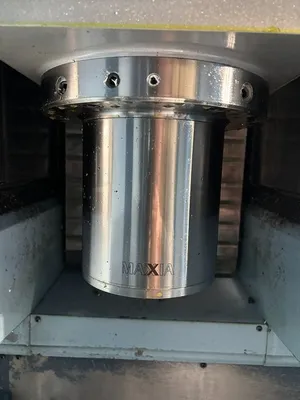

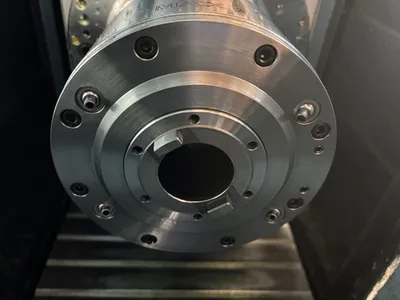

20,000rpm Spindle, 20-25 HP, 108Nm Torque,
Glass Scales for all 5 Axes - X, Y, Z, B, C,
Renishaw RMP-60 In Process Measurement Probe,

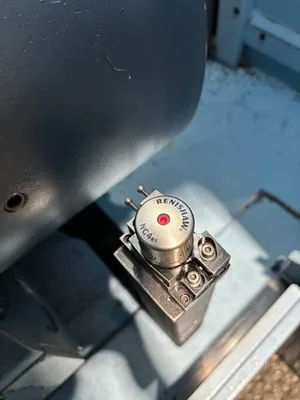

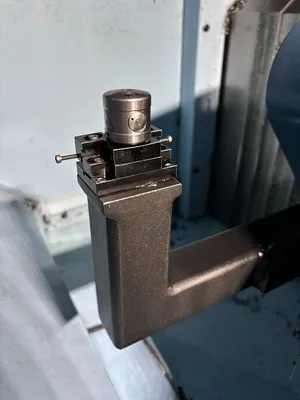

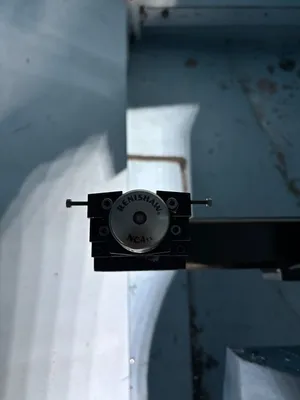

Renishaw NC-4 Laser Tool Breakage/Measurement System,

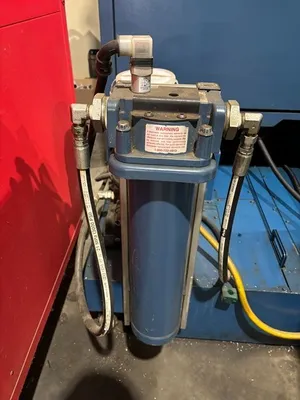

High Pressure NOP Coolant Pump at 300PSI with 20 Microns filtration,
eZ-5 Kinematic Function - Including Calibration Sphere,
Matsuura/Fanuc High Speed, High Precision, and 5 Axis Value Software
Spindle Cartridge Replaced 12 months ago, Documentation available.

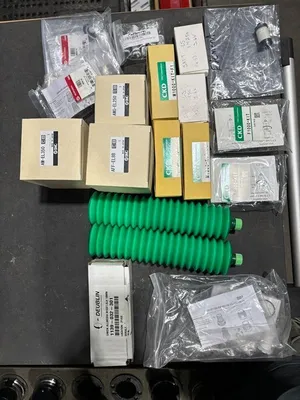

Complete set of all Consumable Parts – Grease Canisters, High Pressure Coolant Filters, Air Filters, Batteries, Hydraulic Filters, Etc
Always run with Velum fan protection on all cooling fans and cooling systems.

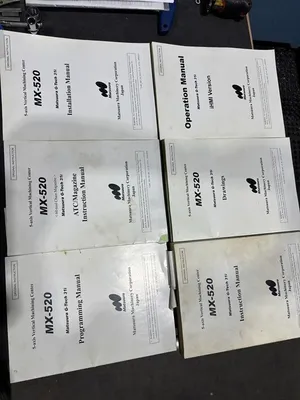

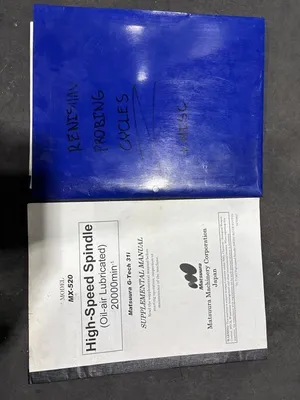

Recently Serviced, Clean and Ready to Run, Manuals Included, Maintenance Records Available
Hours: 11,050 hrs
