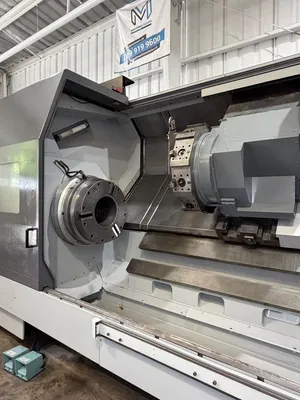

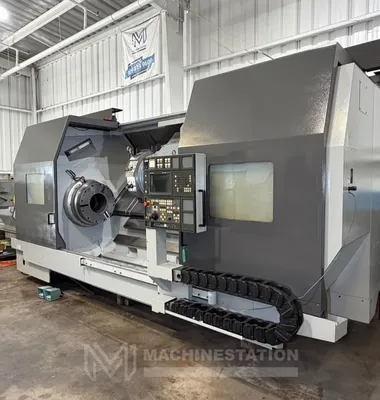

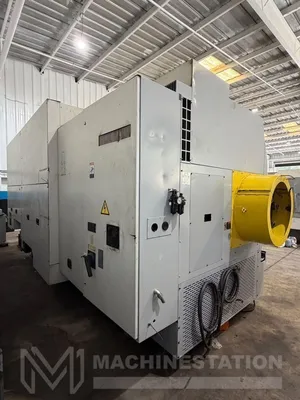

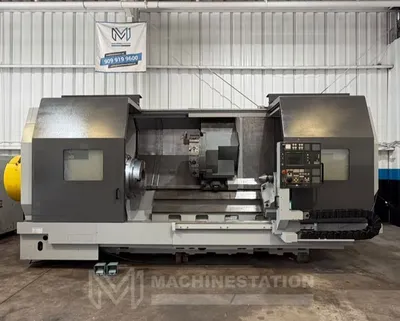

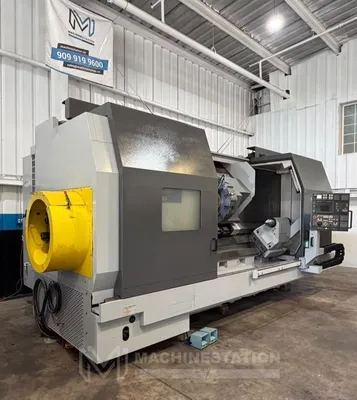

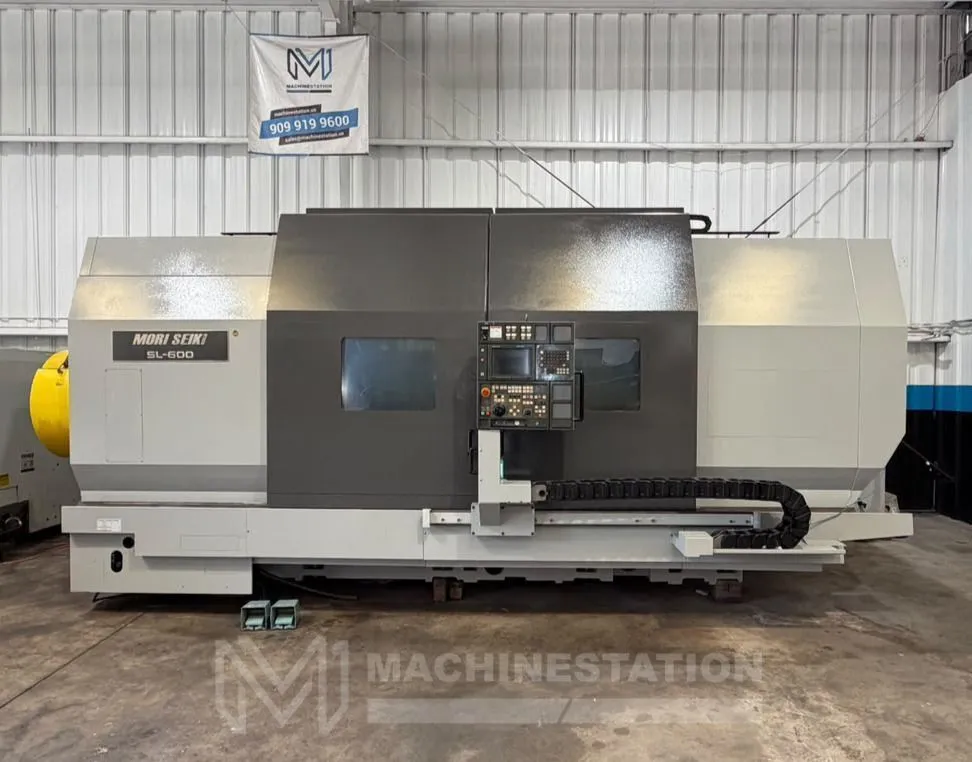

USED 2000 MORI SEIKI SL-600C/2000

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

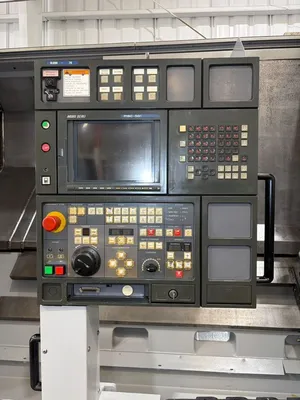

Mori Seiki MSC-501 (Fanuc) CNC Control
Rigid Tapping

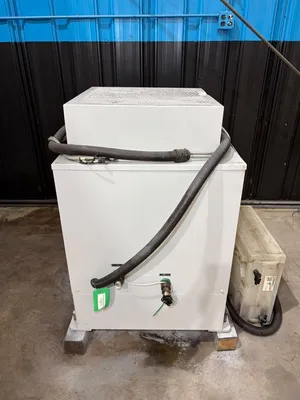

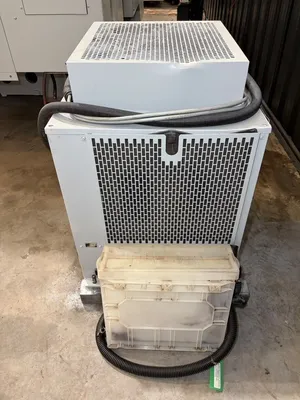

Coolant Tank

Capacity:
Max Turning Diameter: 35.4 inch
Max Turning Length: 78.7 inch
Swing Over Bed: 39.1 inch
Swing Over Cross slide: 28.9 inch
Distance Between Centers: 90.6 inch

Travels:
X Axis Travel: 19.1 inch
Z Axis Travel: 84.6 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 787 IPM

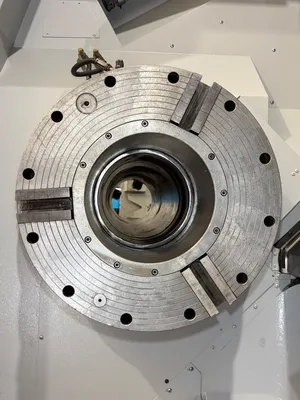

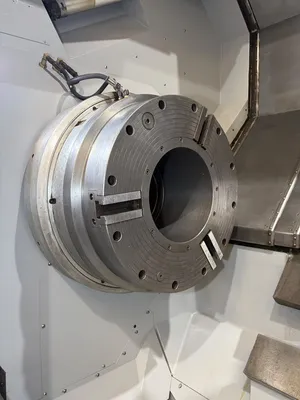

Spindle:

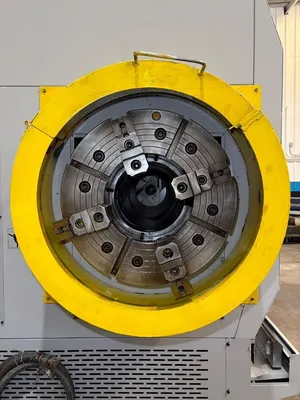

Spindle Nose: A1-20
Spindle Bore: 10.8 inch
Spindle Speed: 1000 RPM
Spindle Motor: 60/50 HP

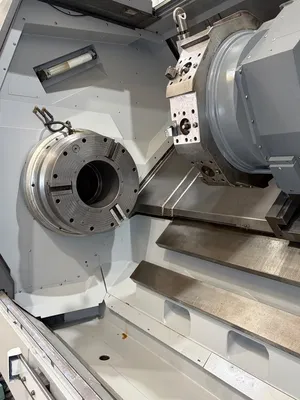

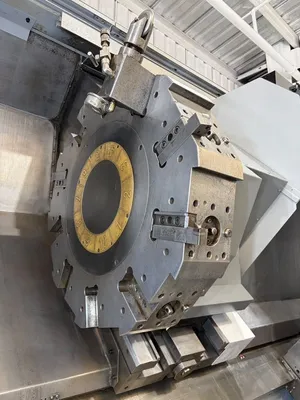

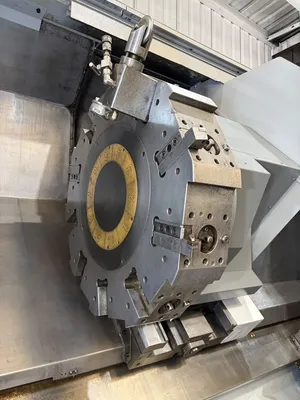

Turret:
Turret Capacity: 10 Stations
Shank height for square tool: 1.25 inch
Shank diameter for boring bar: 206 inch
Turret Index Time: 0.4 Second

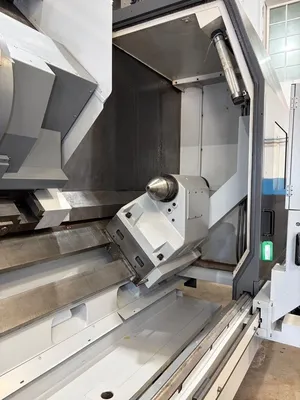

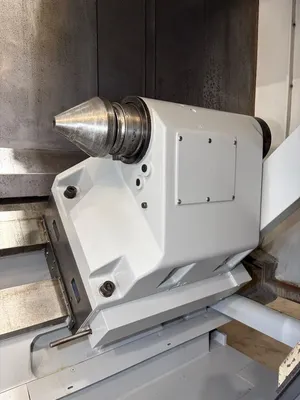

Tailstock:
Tailstock Taper: MT-5
Quill Diameter: 5.9 inch
Quill Travel: 5.9 inch
Tailstock Body Travel: 82.7 inch

General:

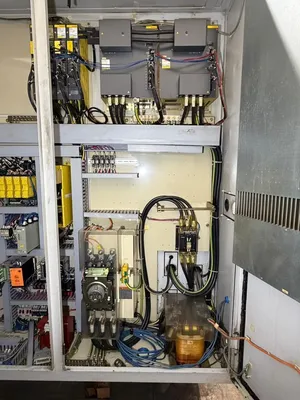

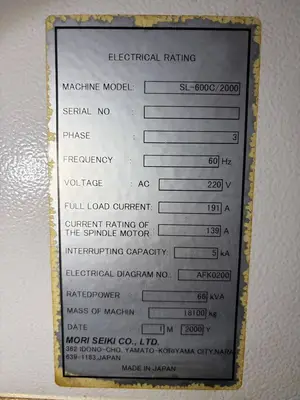

Power: 66 kva / 220v / 3-Phase / 60 Hz
Dimensions: 275 inch X 146 inch X 114 inch High Approx.
Weight: 39,900 lbs Approx.
