USED 2008 FANUC R-2000iB/210F + R-30iA
Overview

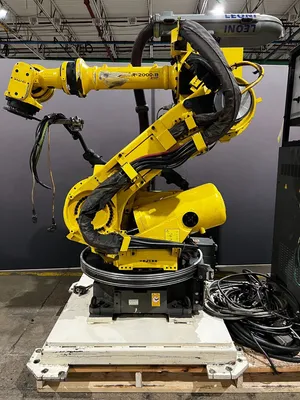

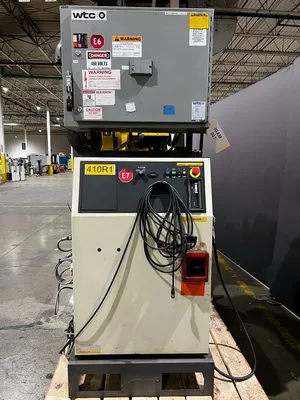

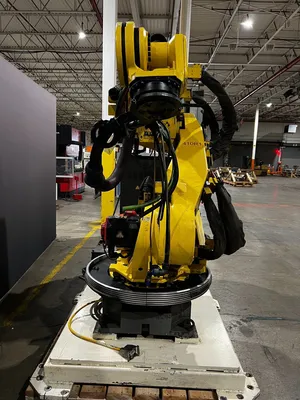

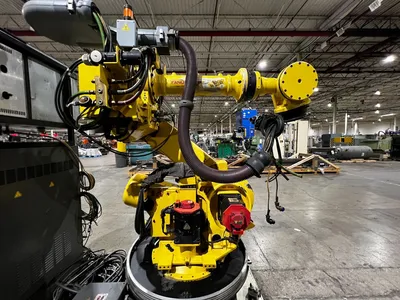

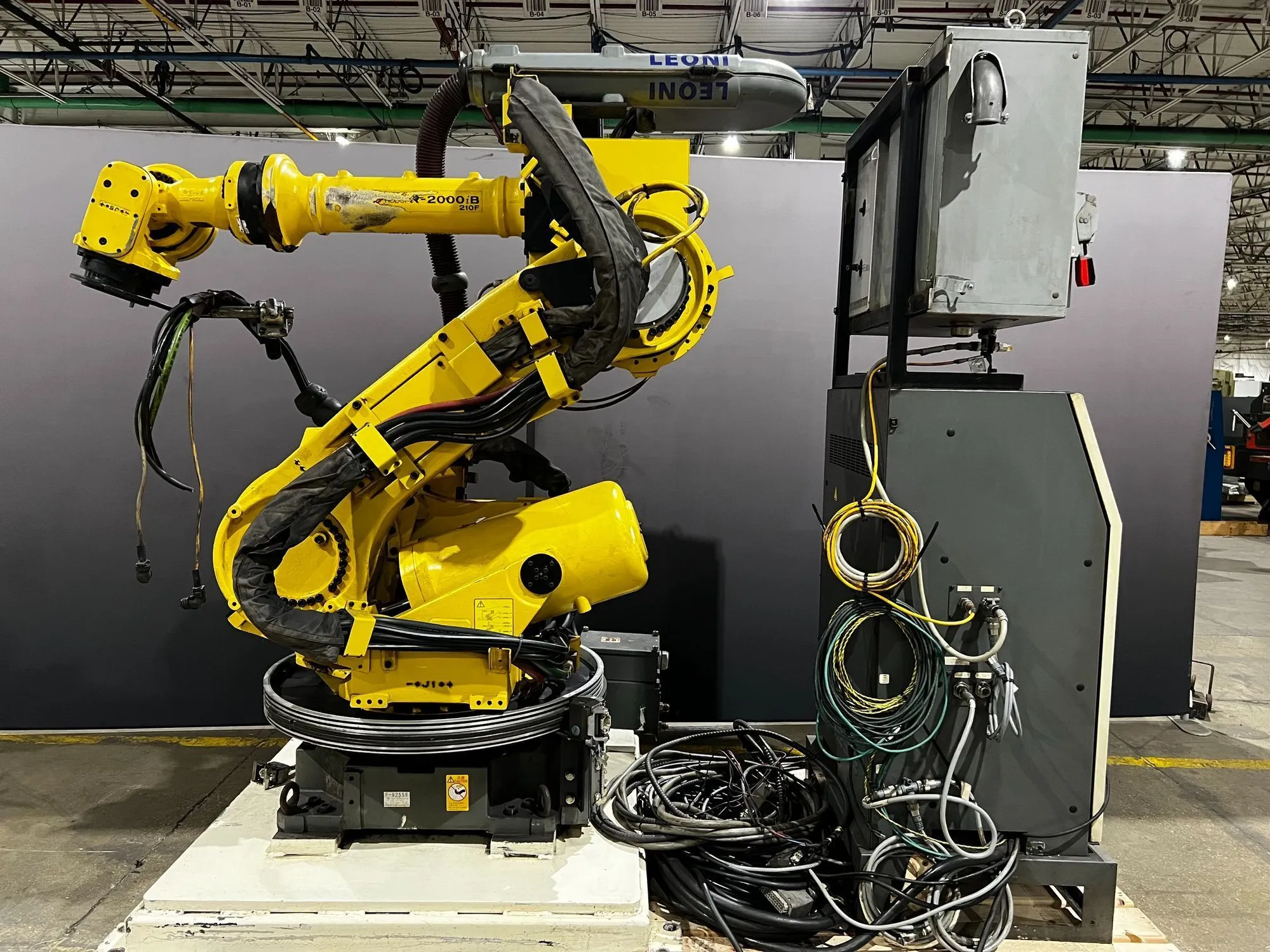

This listing is for a USED FANUC R-2000iB/210F complete with R-30iA controller, teach pendant, and WTC 5003 weld inverter. The R-2000iB/210F is a six-axis articulated spot welding robot with a 210 kg payload capacity and 2655 mm reach for welding, material handling, and automated manufacturing applications.
Specs
IDENTIFICATION
Manufacturer: FANUC

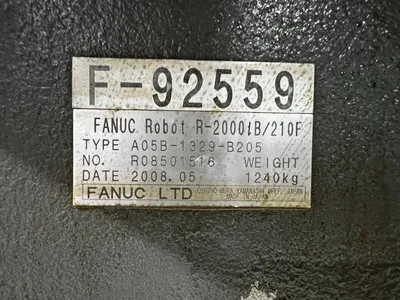

Robot Model: R-2000iB/210F
Robot Type Number: A05B-1329-B205

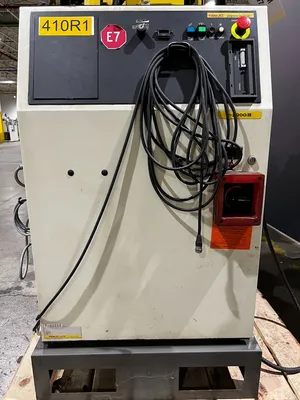

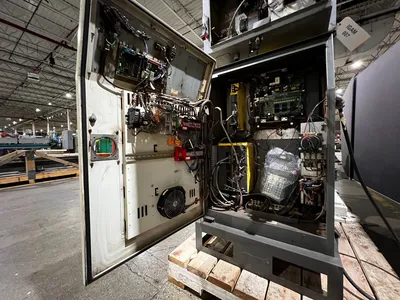

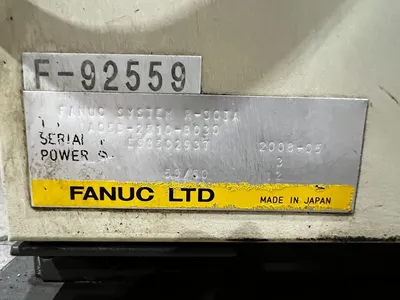

Controller Model: R-30iA
Controller Type Number: A05B-2510-B030

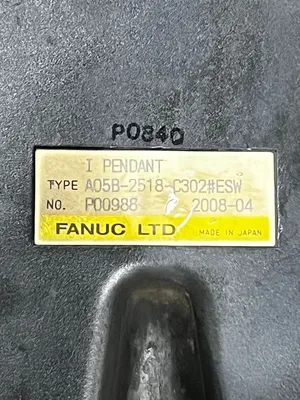

Teach Pendant Model: iPendant
Teach Pendant Type: A05B-2518-C302#ESW
Condition: USED
Robot Serial Number: R08501516
Controller Serial Number: E08502937
Teach Pendant Serial No.: F00988
YOM: 2008
Country of Manufacture: Japan
ROBOT
Robot Family: R-2000iB Series
Robot Configuration: 6-Axis Articulated Robot
Application Package: Spot Welding
Mounting Style: Floor Mounted
Controller Family: R-30iA
PERFORMANCE
Rated Payload: 210 kg
Maximum Reach: 2655 mm
Repeatability: ±0.2 mm
Controlled Axes: 6
J1 Motion Range: 360°
J2 Motion Range: 185°
J3 Motion Range: 368°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
Robot Weight: 1240 kg
CONTROLS & INSTRUMENTATION
Controller: R-30iA

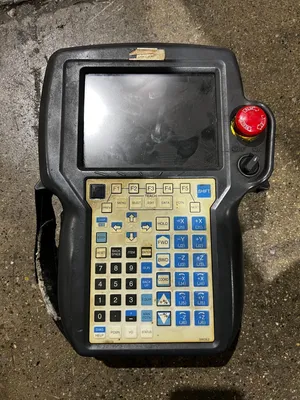

Teach Pendant: Included
Teach Pendant Type: iPendant
Programming Interface: Teach Pendant
Diagnostics: Integrated
Status Monitoring: Integrated
ELECTRICAL
Robot Power: 3 Phase
Frequency: 50/60 Hz
WTC Input Voltage: 480 VAC
WTC Input Phase: 3 Phase
WTC Input Frequency: 60 Hz
WTC Maximum Power: 54 kVA
WTC Control Voltage: 120 VAC
WTC Control Load: 500 VA
Interrupting Capacity: 85 kA

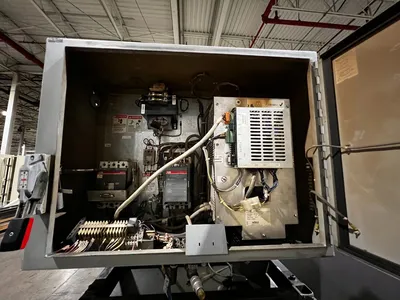

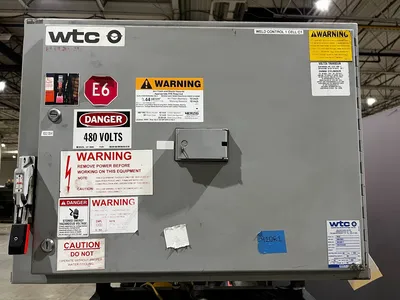

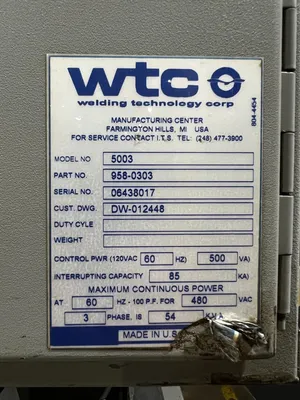

WELDING PACKAGE
Weld Inverter Manufacturer: WTC
Weld Inverter Model: 5003
Weld Inverter Part Number: 958-0303
Weld Inverter Serial Number: 06438017
Dress Package: Installed
Cable Management: Leoni
Welding Equipment: Installed
CONSTRUCTION
Robot Structure: Articulated Industrial Robot
Automatic Lubricator: PLI Smart Lubrication System
Tooling Interface: Installed
Utility Package: Installed
Finish Color: FANUC Yellow
INSTALLATION
Robot Included: Yes
Controller Included: Yes
Teach Pendant Included: Yes
Weld Inverter Included: Yes
Robot Cables Included: Yes
Dress Package Included: Yes
Positioner Included: Not specified
Safety Fencing Included: Not specified
