1500 L Vertical Stainless Steel Mixing Tank With Dissolver Agitator
Overview
Description

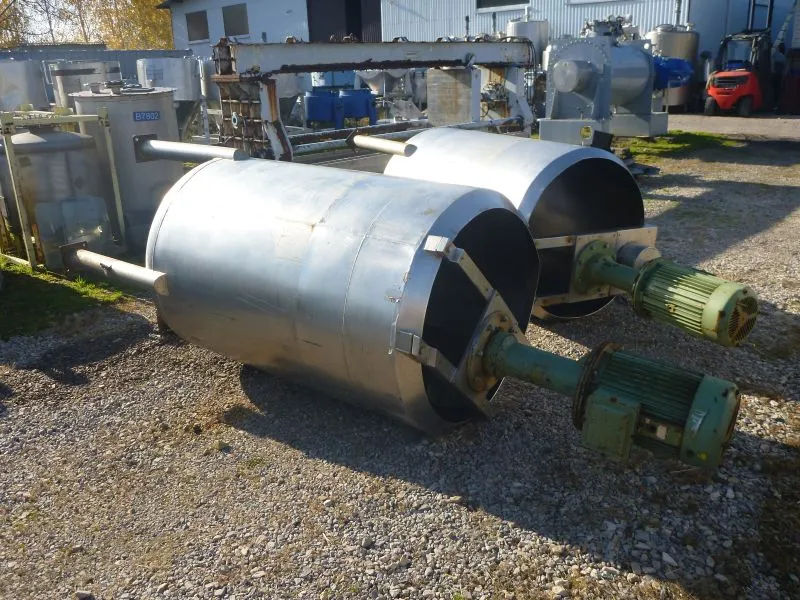

Used vertical stainless steel mixing tank with total volume 1500 l. Tank has internal dimensions: diameter 109 cm x length of straight side of wall 156 cm. Top open with mounted stainless steel agitator, equipped with toothed disc head. Agitator is directly driven by el motor 15 kW, 2905 rpm, 380 V, 50 hz. Toothed disc has diameter 200 mm. Bottom welded, elipsoidal, with central discharge outlet, equipped with manually operated ball valve. Tank is mounted on 4 stainless steel legs.
Specifications
| Capacity | 396.3 gal | 1,500.2 L |
|---|---|---|
| Diameter | 3.58' | 1,091.2 mm |
| Height | 5.12' | 1,560.6 mm |
| Type of stainless | stainless steel | stainless steel |
| Type Of Heads | toothed disc head | toothed disc head |
| Vertical/Horizontal | vertical | vertical |
| Legs/Lugs/Skirt | 4 stainless steel legs | 4 stainless steel legs |
| Dimensions | 3.576218 ft x 5.117709 ft | 3.576218 ft x 5.117709 ft |
