USED PATTERSON KELLEY 10 CUBIC FOOT

Manufacturer Information
Patterson-Kelley (P-K)
Patterson-Kelley is a recognized manufacturer of industrial mixing and blending equipment, including twin-shell or V-type blenders used for dry powder and granular material processing.
This 10 cubic foot Patterson-Kelley Twin Shell V-Blender features 304 stainless steel construction, a milled interior finish, dual 18" charging ports, an 8" butterfly-valve discharge, and an approximately 2 HP direct-drive system.
Description
Available for sale is a used Patterson-Kelley 10 cubic foot Twin Shell V-Blender constructed of 304 stainless steel.

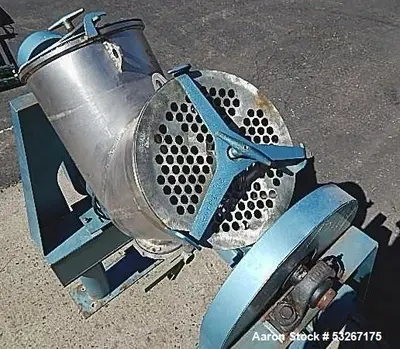

The blender is rated for a maximum material density of 135 lb./cu. ft. and features two 18" top charge ports for material loading. Finished product exits through an 8" bottom discharge equipped with a butterfly valve.

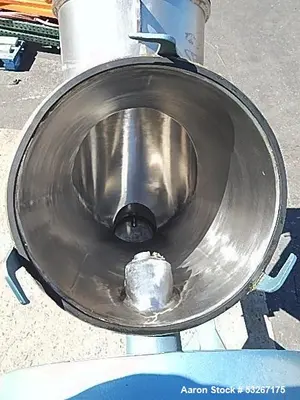

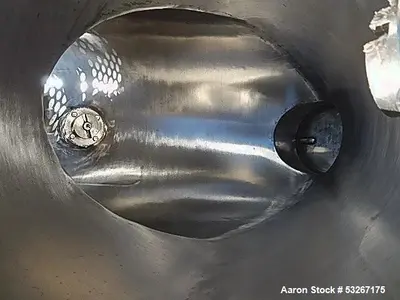

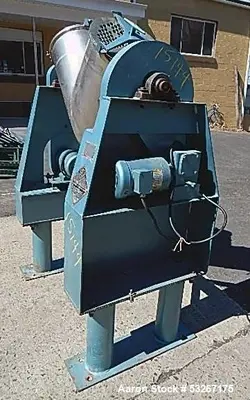

The vessel interior has a milled finish. The blender is direct driven by an approximately 2 HP right-angle gear drive with an electric brake and is supported by Dodge pillow block bearings.

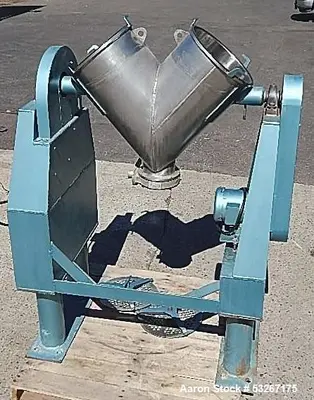

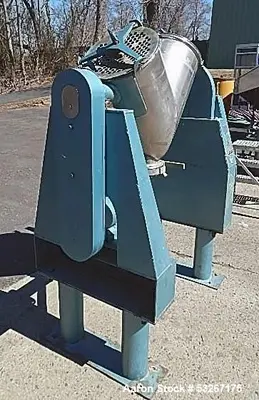

The complete blender is mounted on a carbon steel stand, providing approximately 48" of clearance from the bottom discharge valve to the floor for positioning drums, bins, conveyors, or other compatible downstream material-handling equipment.
Overall dimensions are approximately 91" long x 30.5" wide x 101" tall.
Specifications

Specification
Details

Manufacturer
Patterson-Kelley

Equipment Type
Twin Shell / V-Blender

Condition
Used

Capacity
10 Cubic Feet

Construction
304 Stainless Steel

Maximum Material Density
135 Lb./Cu. Ft.

Interior Finish
Milled

Top Charge Ports
(2) 18"

Bottom Discharge
8"

Discharge Valve
Butterfly Valve

Drive
Direct Drive

Motor
Approx. 2 HP

Gear Drive
Right-Angle Gear Drive

Brake
Electric Brake

Bearings
Dodge Pillow Block

Stand
Carbon Steel

Discharge Clearance
Approx. 48" to Floor

Overall Length
Approx. 91"

Overall Width
Approx. 30.5"

Overall Height
Approx. 101"

Typical Applications

Dry powder blending
Granular material blending
Batch mixing
Ingredient homogenization
Powder formulation
Pharmaceutical processing
Nutraceutical processing
Food ingredient blending
Chemical powder processing
Specialty material blending
Plastics additive blending
Industrial dry-material processing

Products This V-Blender Could Be Used For

Pharmaceutical powders
Nutraceutical powders
Powdered food ingredients
Spices and seasonings
Dry flavor blends
Chemical powders
Pigments
Plastic additives
Granulated materials
Mineral powders
Specialty dry formulations
Other compatible free-flowing powders and granules

Actual batch size is normally less than the vessel's total 10 cu. ft. volume and depends on the product's bulk density, flow characteristics, required fill percentage, and blending performance. Suitability should be verified for the intended product and process.
Frequently Asked Questions

What is the capacity of this Patterson-Kelley V-Blender? The blender has a stated total volume of 10 cubic feet.

What is the maximum material density rating? The supplied specifications state a maximum material density of 135 lb./cu. ft. This rating should not be interpreted as a recommended batch weight without considering the appropriate operating fill volume.

How is material loaded and discharged? The blender has two 18" top charge ports and an 8" bottom discharge with a butterfly valve.

What type of drive does the blender use? It is direct driven by an approximately 2 HP right-angle gear drive with an electric brake and incorporates Dodge pillow block bearings.

How much clearance is beneath the discharge? The carbon steel stand provides approximately 48" between the bottom valve and the floor, allowing space for compatible receiving equipment.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for this Patterson-Kelley V-Blender.
