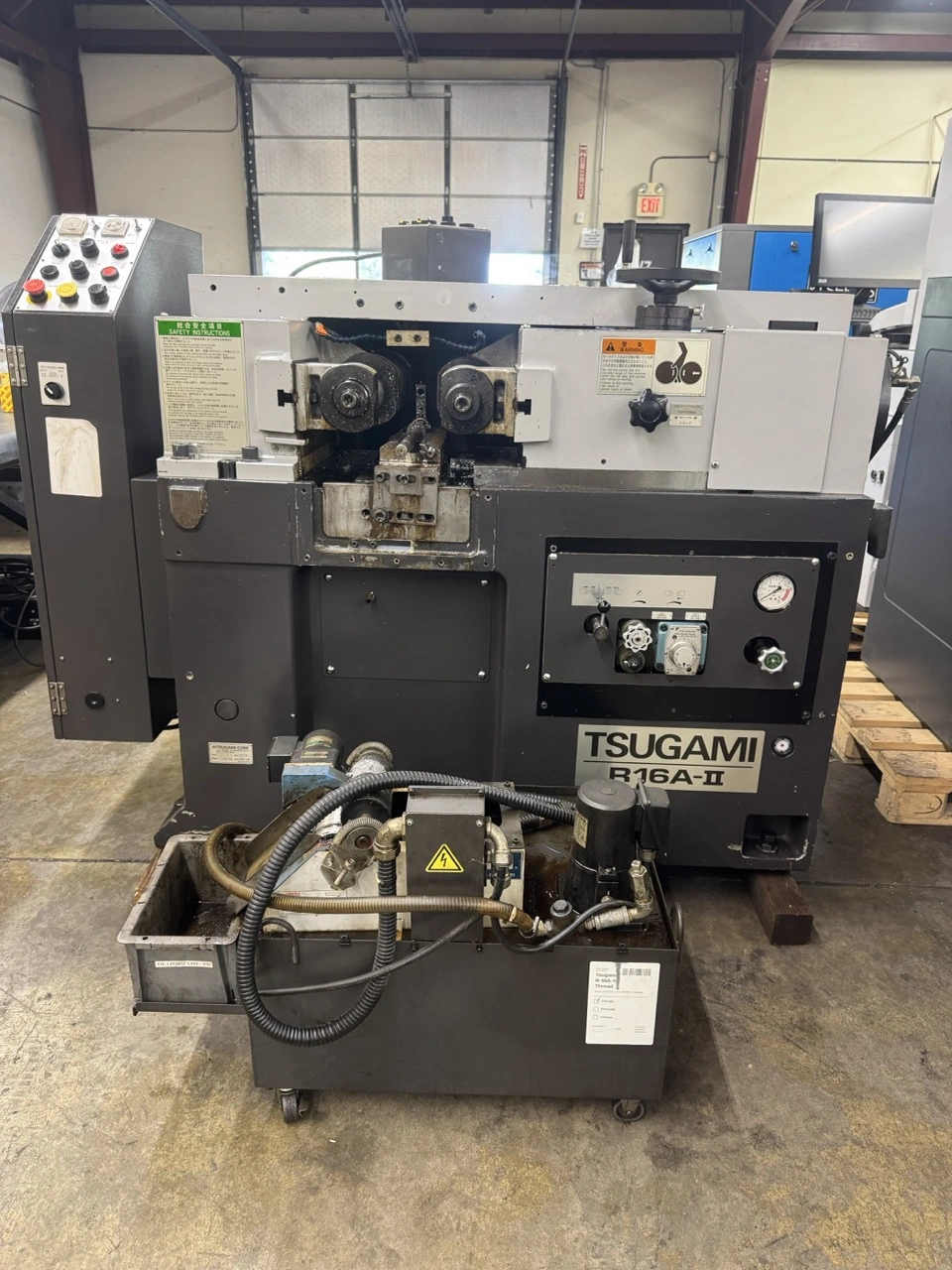

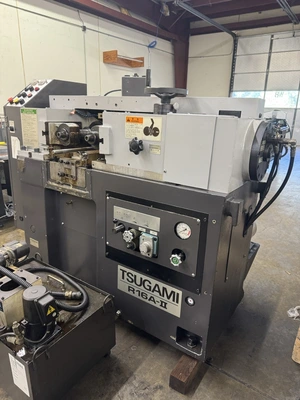

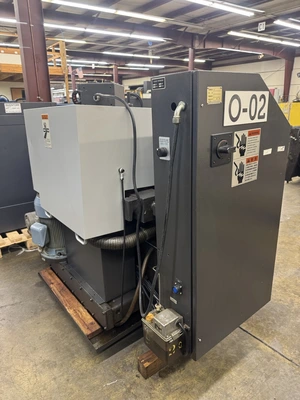

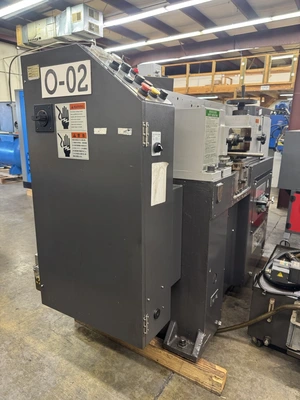

USED 2015 TSUGAMI R-16A-II-THREAD

2015 Tsugami R16A-II heavy-duty two-die precision thread rolling machine featuring up to 16 tons of rolling force, 75 mm maximum in-feed rolling diameter, 150 mm maximum rolling length, and four selectable spindle speeds for high-accuracy production of threads, splines, serrations, and formed profiles.
Specifications
Manufacturer: Tsugami
Model: R16A-II
Year: 2015
Machine Type: Precision Thread & Form Rolling Machine
Configuration: Two-Die Cylindrical / In-Feed Thread Roller
Country of Manufacture: Japan
Capacity
Maximum Rolling Force: 160 kN / approx. 16 Tons
Maximum Rolling Diameter: 75 mm / 2.95″
Maximum In-Feed Thread Length: 150 mm / 5.91″
Maximum Thread Pitch: 5 mm
Rolling Method: In-Feed
Number of Rolling Dies: 2
Maximum Rolling Die OD: 200 mm
Rolling Die Bore / Spindle Diameter: 54 mm / 2.13″
Spindle
Spindle Speeds: 16 / 30 / 48 / 71 RPM
Maximum Spindle Speed: 71 RPM

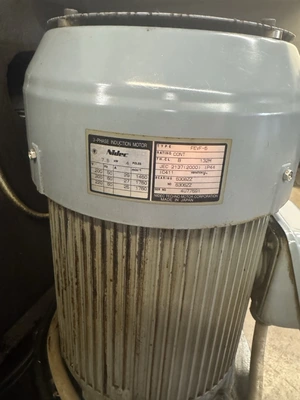

Spindle Drive: approximately 5 HP on documented 2015 configuration
Heavy-duty opposed rolling spindle design
Features

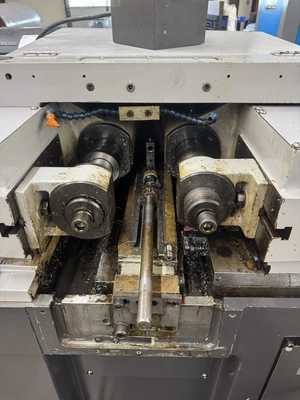

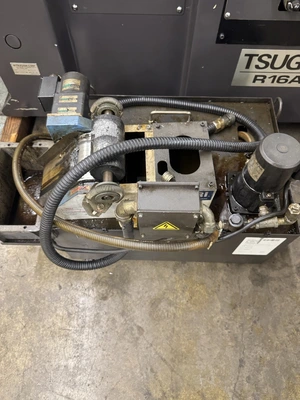

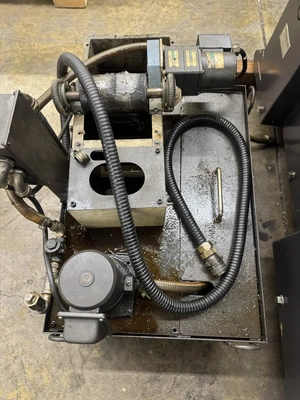

Hydraulic two-die thread rolling system
Precision in-feed rolling

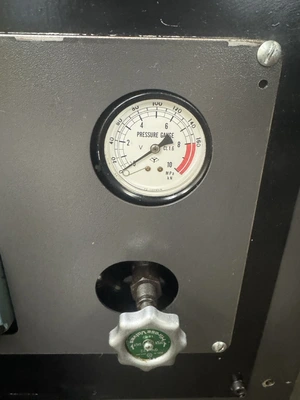

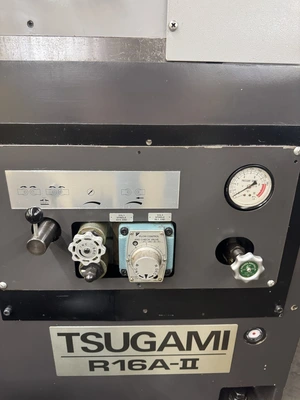

Adjustable rolling pressure
Adjustable spindle position
Center workrest capability
Designed for high-accuracy, repeatable production
Compatible with R15A tooling components including rolling dies, support blades and centers
Suitable for threads, splines, serrations, knurling and other cold-formed profiles
Approximate Dimensions & Weight
Floor Space: approximately 65″ x 54″
Manufacturer literature dimensions: approximately 69″ x 43″ x 51″
Machine Weight: approximately 5,700–5,950 lbs.
