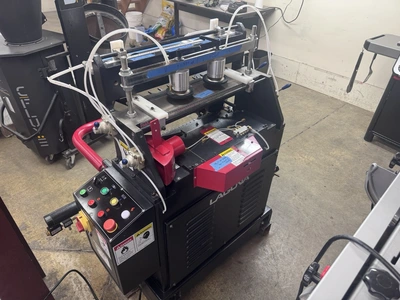

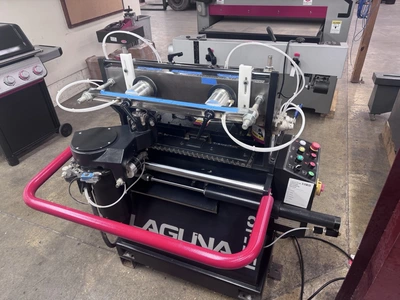

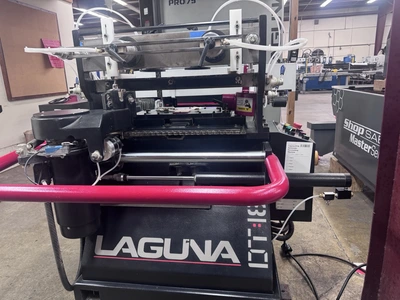

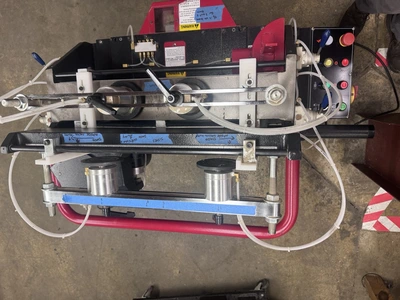

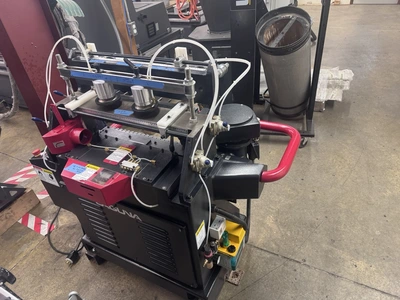

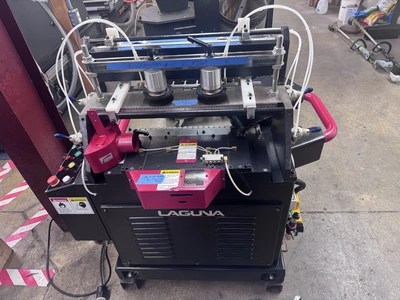

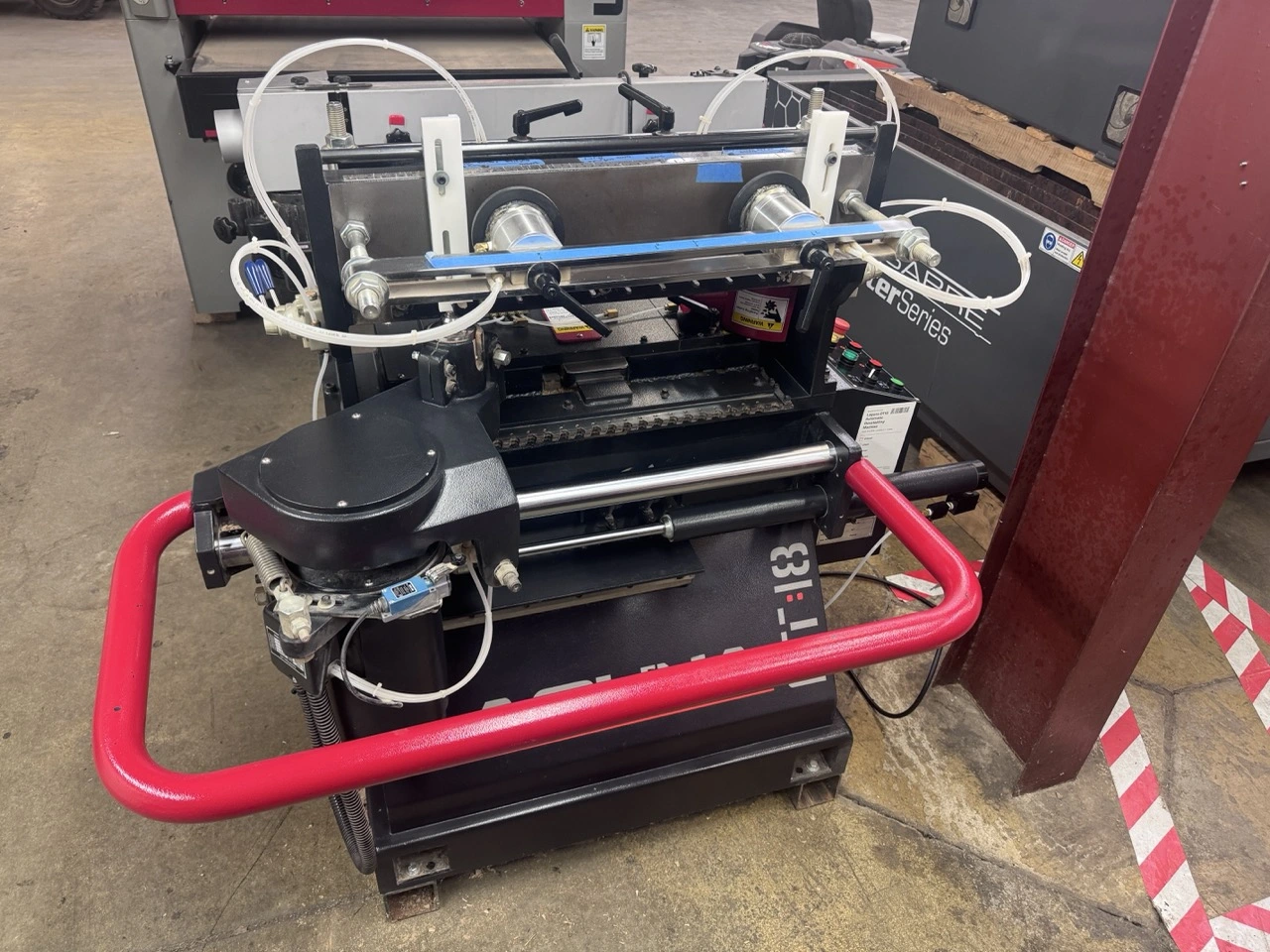

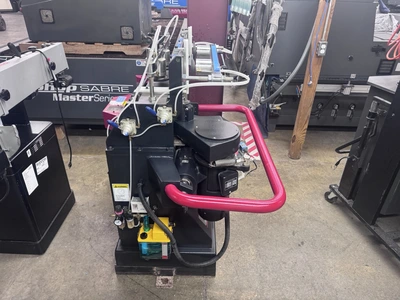

USED 2023 LAGUNA DT18 AUTOMATIC DOVETAILLING MACHINE

Capacity: ” Ø

2024 Laguna DT18 automatic dovetail machine featuring a high-speed 21,500 RPM spindle, four independently controlled pneumatic clamps, simultaneous pin-and-tail cutting capability, and up to 59″ x 16″ workpiece capacity for efficient high-production drawer, cabinet, and furniture manufacturing.
Specifications
Manufacturer: Laguna Tools
Model: DT18
Year: 2024
Machine Type: Automatic / Semi-Automatic Dovetail Machine
Application: Cabinetry, drawers, furniture and woodworking production
SKU: MDT182203
Motor & Spindle
Main Motor: 2 HP

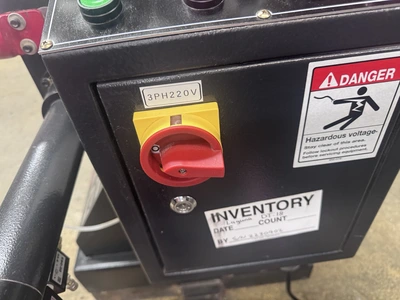

Voltage: 220V
Phase: 3-Phase
Spindle Speed: 21,500 RPM
Collet-style cutter chuck
High-speed dovetail cutting spindle
Workpiece Capacity
Maximum Workpiece Size: 59″ x 16″
Tenon Thickness Range: 1/8″ – 2-23/64″
Tenon Width Range: 15/64″ – 23/32″
Tenon Depth Range: 25/64″ – 1-3/16″
Cutter Vertical Adjustment: Up to 1-3/16″
Clamping & Operation

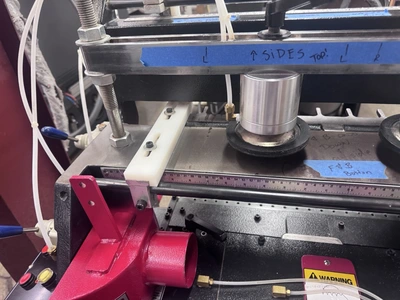

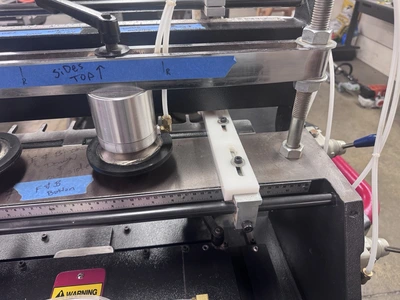

4 independently controlled pneumatic clamps
Pins and tails can be machined separately or simultaneously
Capable of machining two joints in a single cycle

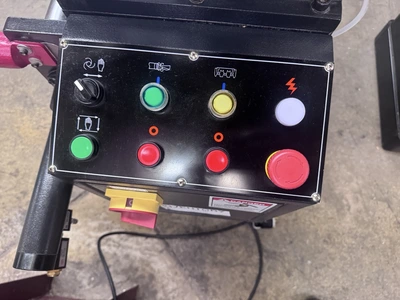

Centralized operator control panel
Adjustable dovetail spacing
Individual adjustment scales for repeatable setups

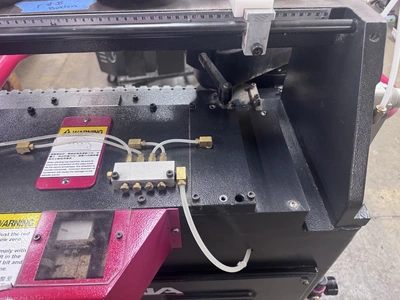

Pneumatic workpiece clamping
Automatic cutting cycle
Production
Approximate Production Capacity: 40–50 drawer boxes per hour, depending on workpiece and operator
Designed for production cabinet and furniture shops
Suitable for solid wood and common cabinet materials
Air & Dust Collection
Required Air Pressure: 71 PSI

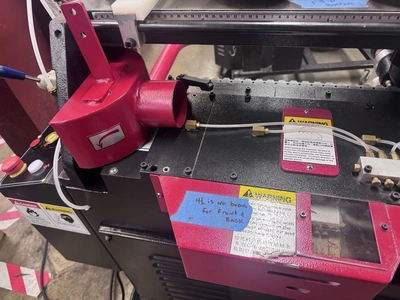

Dust Collection Port: 4″
Dimensions & Weight
Machine Base: approximately 42″ x 22″
Overall Machine Size: approximately 56″ x 36″
Shipping Dimensions: approximately 60″ x 50″ x 50″
Machine Weight: approximately 1,320 lbs.
Approximate Shipping Weight: 1,685 lbs.
