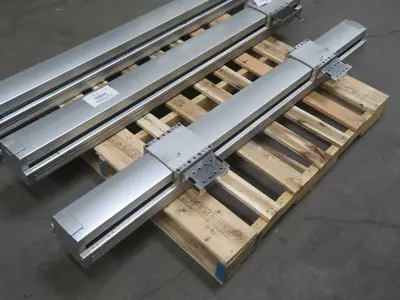

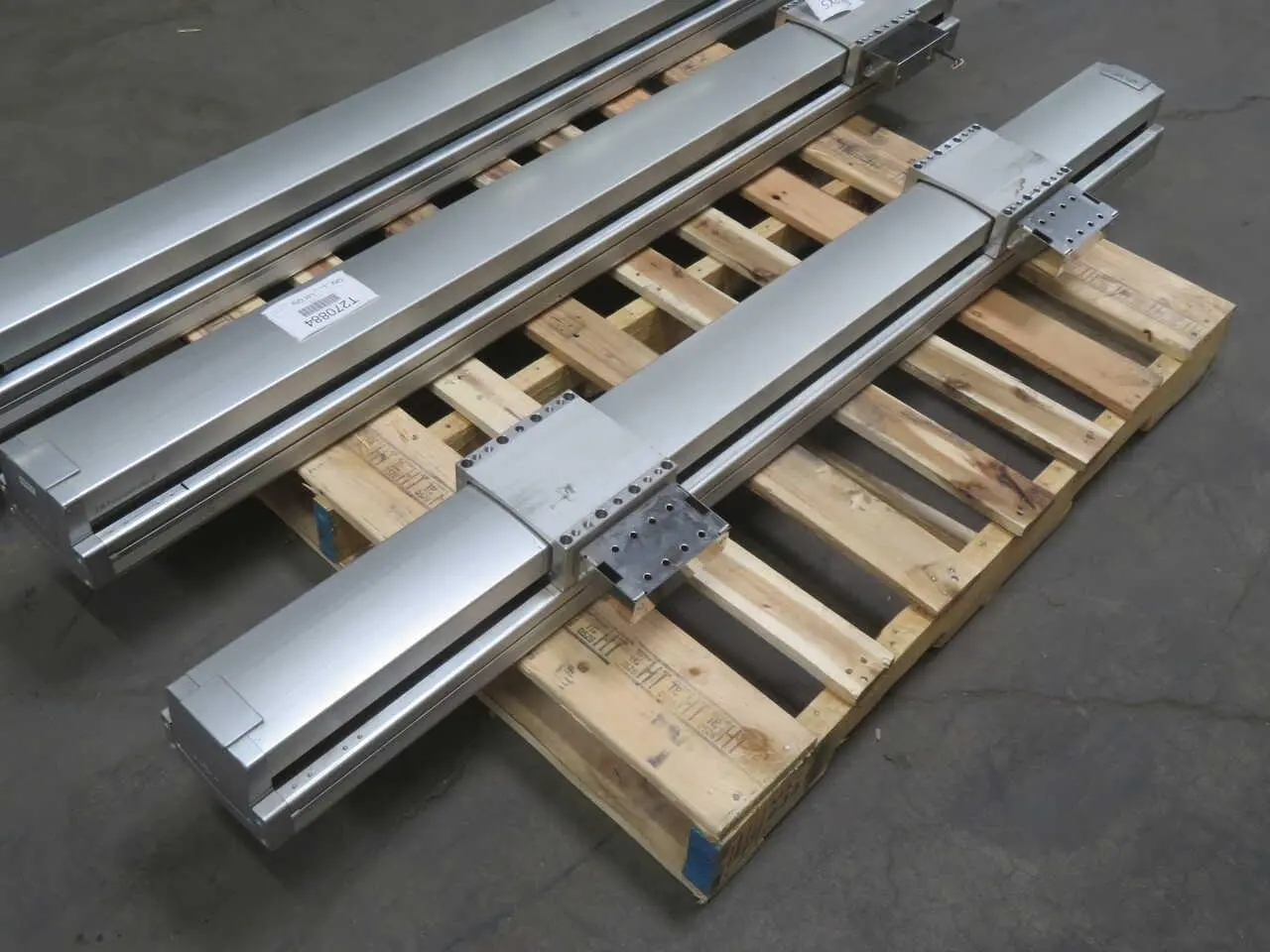

USED IAI NS-LZMM-I-400-20-850-T2-X07-AQ-B-ET1-RT

THE IAI NS-LZMM-I-400-20-850-T2-X07-AQ-B-ET1-RT IS A LARGE VERTICAL TYPE SINGLE-AXIS ROBOT ACTUATOR FEATURING A MULTI-SLIDER CONFIGURATION WITH A MAIN UNIT WIDTH OF 145MM. DRIVEN BY A 400W AC SERVO MOTOR, THE UNIT OPERATES ON A THREE-PHASE INPUT VOLTAGE OF 0-230VAC AT 3.6A. IT FEATURES A LARGE NUT ROTATION TYPE MECHANISM WHERE THE BUILT-IN HOLLOW-SHAFT MOTOR ROTATES THE NUT INSTEAD OF THE BALL SCREW, ALLOWING FOR HIGH-SPEED LINEAR MOVEMENT AND REDUCED VIBRATION OVER A LONG STROKE. UTILIZING A 20MM LEAD BALL SCREW, IT DELIVERS A STROKE LENGTH OF 850MM AND OFFERS A MAXIMUM SPEED OF 1300MM/S WITH A POSITIONING REPEATABILITY OF ±0.01MM. THE SYSTEM PROVIDES A RATED THRUST OF 340.1N, A MAXIMUM HORIZONTAL PAYLOAD CAPACITY OF 80KG, AND A RATED ACCELERATION OF 0.3G. THIS MODEL IS CONSTRUCTED WITH AN ALUMINUM BASE TREATED WITH WHITE ALUMITE AND INCLUDES DIRECT-ACTING INFINITE CIRCULATION LINEAR GUIDES. IT COMES EQUIPPED WITH STANDARD FEATURES AND OPTIONS INCLUDING AN AQ SEAL LUBRICATING UNIT FOR AN EXTENDED MAINTENANCE-FREE PERIOD, A BRAKE (B) AS STANDARD EQUIPMENT FOR VERTICAL CONFIGURATIONS TO PREVENT THE SLIDER FROM FALLING WHEN POWERED OFF, A STANDARD CABLE TRACK MOUNTING DIRECTION 1 OPTION (ET1), AND A GUIDE WITH A BALL-RETAINING MECHANISM (RT). THE ACTUATOR IS COMPATIBLE WITH T2 SERIES CONTROLLERS, SUCH AS THE SCON, SSEL, OR XSEL-P/Q SYSTEMS, FOR PRECISE PROGRAM CONTROL OR POSITIONER OPERATIONS.
