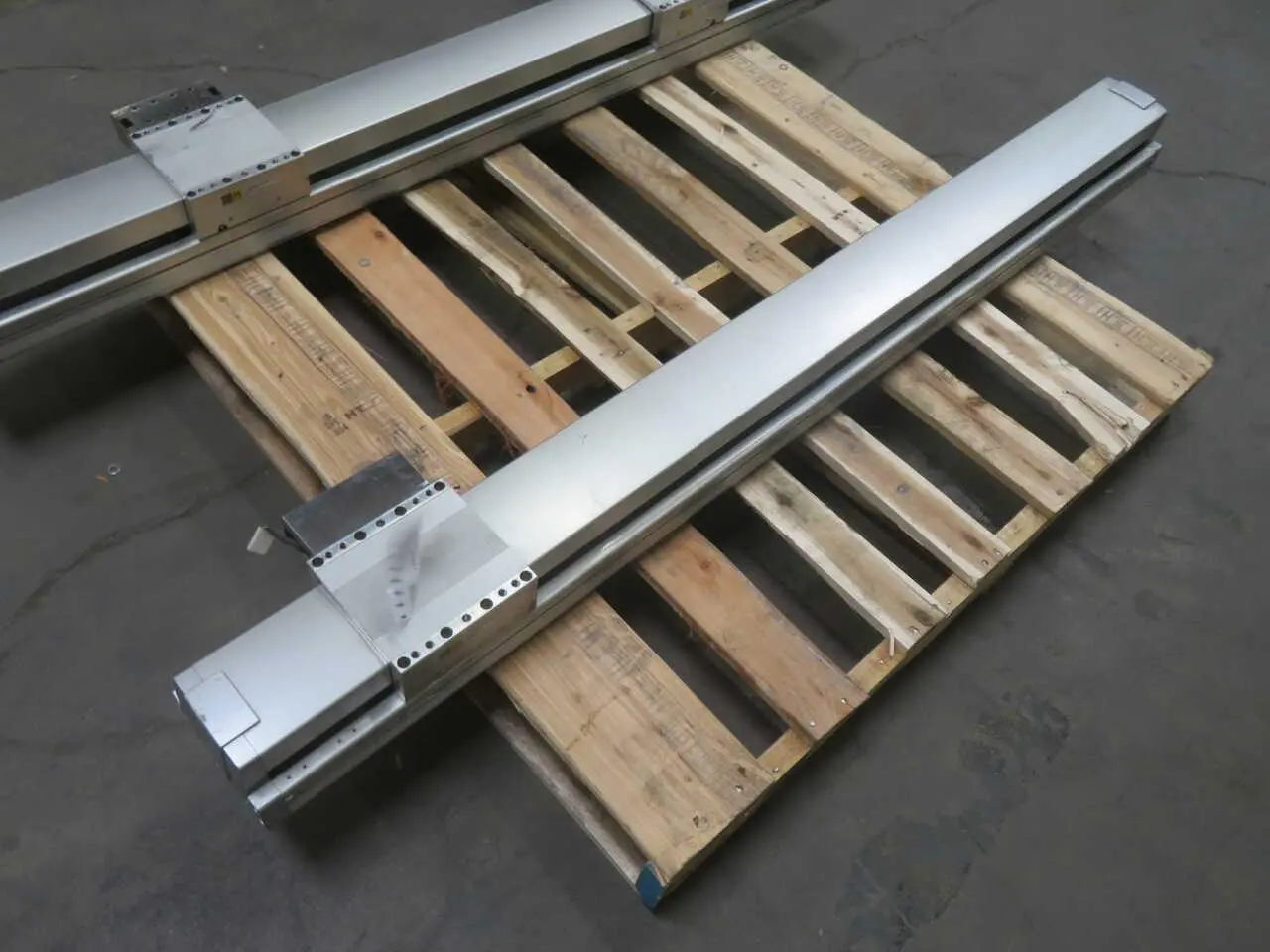

USED IAI NS-LXMS-1-400-20-1200-T2-X07-A0-CT3-RT-SP

THE IAI NS-LXMS-1-400-20-1200-T2-X07-A0-CT3-RT-SP IS A LARGE NUT-ROTATING TYPE, SINGLE-AXIS LINEAR ROBOT ACTUATOR DESIGNED FOR HORIZONTAL INDUSTRIAL AUTOMATION APPLICATIONS REQUIRING A SINGLE SLIDER CONFIGURATION. DRIVEN BY A 400W AC SERVO MOTOR, THIS HIGH-RIGIDITY UNIT FEATURES AN ALUMINUM BASE WITH A WHITE ALUMITE TREATMENT AND INTEGRATED GUIDE RAILS. IT UTILIZES A 20MM LEAD BALL SCREW MECHANISM TO ACHIEVE A MAXIMUM STROKE LENGTH OF 1200MM AND DELIVERS A MAXIMUM HORIZONTAL PAYLOAD CAPACITY OF 80KG ALONGSIDE A TOP SPEED OF 1300MM/S. THE ACTUATOR FEATURES A BODY WIDTH OF 145MM TO 150MM AND PROVIDES A POSITIONING REPEATABILITY OF ±0.01MM WITH A RATED ACCELERATION OF 0.3G. THIS CONFIGURATION INCLUDES AN AQ SEAL FOR ENHANCED ENVIRONMENTAL PROTECTION AND GUIDE LUBRICATION, A CT3 STANDARD CABLE TRACK MOUNTING SETUP, AND A GUIDE EQUIPPED WITH A BALL-RETAINING MECHANISM (RT). IT COMES EQUIPPED WITH A SPECIFIED 7-METER ROBOT CABLE (X07) AND IS DESIGNED FOR COMPATIBILITY WITH T2 SERIES CONTROLLERS, SUCH AS THE XSEL, SSEL, OR SCON PLATFORMS, TO SUPPORT PRECISE PROGRAMMATIC OR POSITIONER CONTROL.
