Used

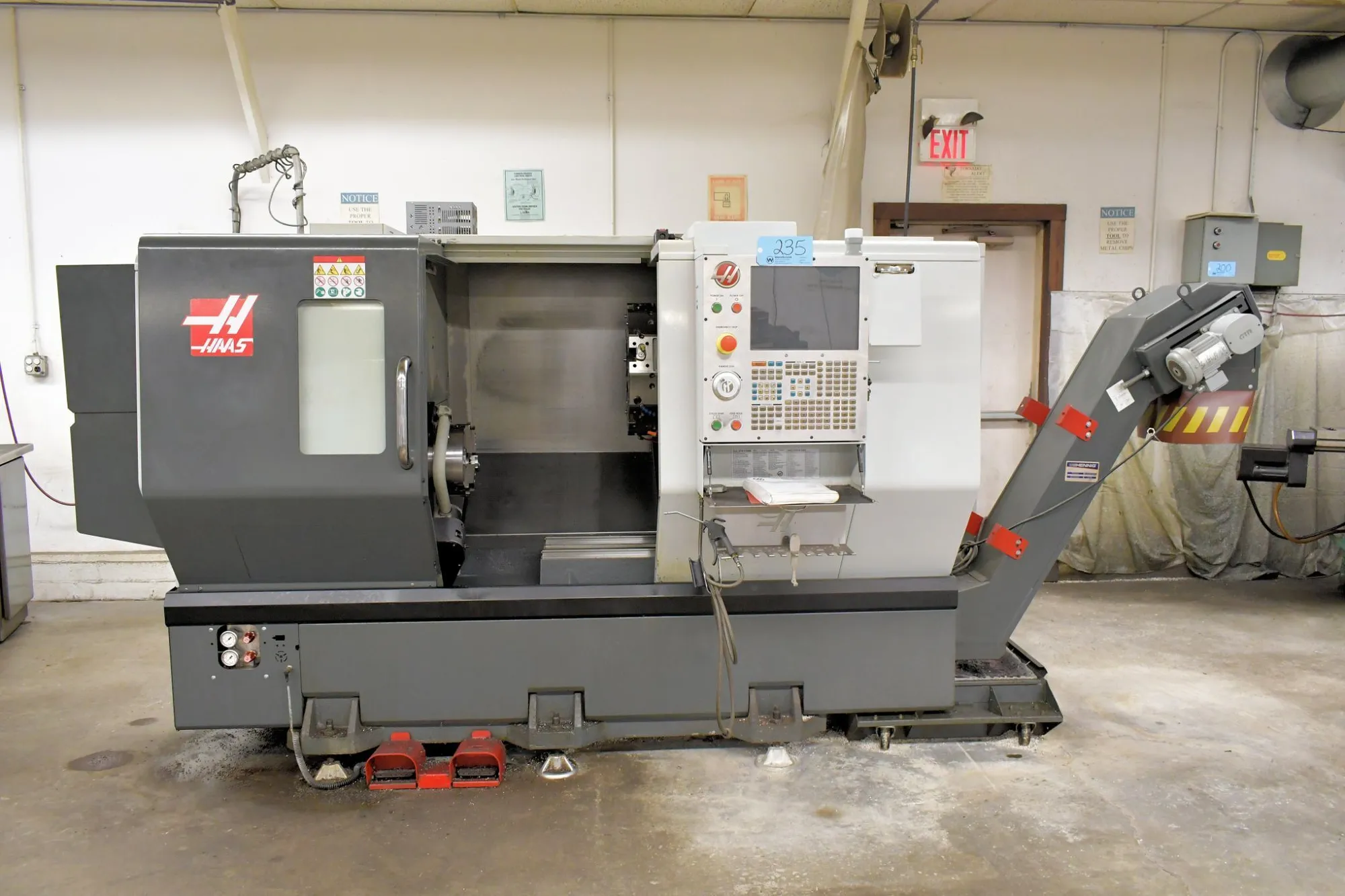

USED 2016 HAAS ST-25

Michigan, United States
12Listings|2Followers
Overview
CNC Lathes

LOT 235: 2016 Haas Model ST-25 CNC Turning Center, s/n 3106680; Haas CNC Control, 31.75" Max Part Swing, 20.75" Max Swing Over Cross Slide, 13.0" Max Cutting Diameter, 21.0" Max Cutting Length, 3.0" Bar Capacity, 30 HP Spindle, 3,400 RPM Spindle Speed, A2-6 Spindle Nose, 3.5" Spindle Bore, 12-Station BOT/VDI 40 Hybrid Turret, 9.3" X-Axis Travel, 21.0" Z-Axis Travel, 945 IPM X/Z Axis Rapid Traverse, 10" 3-Jaw Chuck, Tailstock, Hennig Motorized Discharge Chip Conveyor, 55-Gallon Coolant Tank, Foot Switch, Work Light (Located in Machine Room)

Surplus Assets of Precision Devices-Specializing in Precision Instrumentation for Surface Texture & Roundness Measurement - DAY 1 Timed Online Auction

https://www.bidspotter.com/en-us/auction-catalogues/bscwes/catalogue-id-bscwes10094

Specs
Swing
31.7"
805.18 mm
Machining Length
22.5"
571.5 mm
Chuck Size
10"
254 mm
Bar Capacity
3"
76.2 mm
Power
30 hp
22.4 kW
Max RPM
3,400 RPM
3,400 RPM
Turning Dia
15.5"
393.7 mm
