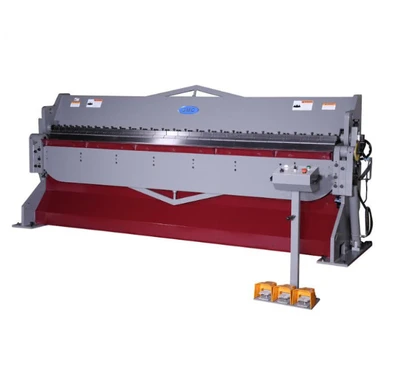

GMC Machinery 6’ x 10 Gauge Heavy Duty Box & Pan Brake GMC-HBB-0610
Overview
Features
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment (front and back)
reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
A wide guide body ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
Standard Equipment
Assorted fingers
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
Specs
Max Bending Length: 6’
Capacity Mild Steel: 10 Ga
Capacity Stainless Steel: 12 Ga
Bend Angle Degree: 135°
Max Box Depth: 6”
Large Beam Opening: 3”
Oil Tank: 15 Gal
Main Motor: 5 HP
Machine Weight: 4,350 lbs
Overall Dimensions: 110 x 43 x 69
