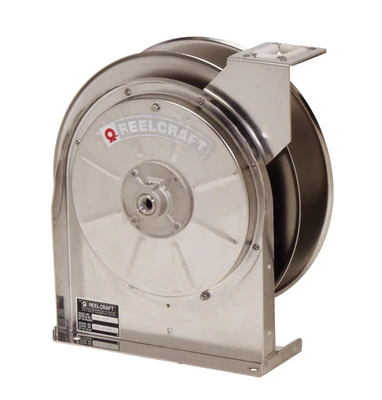

Reelcraft HS18000-M 1/2 x 200ft 3000 psi SS - No Hose

Medium Pressure Stainless Steel Reel Hand Crank Air/Water/Oil
Reelcraft's stainless steel hose reels will increase the life of expensive chemical fluid transfer and wash down hoses. By properly storing hose when not in use, occupational safety will improve by eliminating the tripping hazard of unstored hose and sanitation will improve. Stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless steel hose reels. Swivels include Viton O-rings. Hose not included on all stainless steel reels. Series HS 18000 has four 7/16 (11mm) diameter mounting holes.

Features
Full-flow stainless steel shaft and swivel assures maximum product delivery.
Heavy duty brackets to eliminate bending due to angular hose pull
Banded drive spring gives smooth automatic hose retrieval
Multi-position guide arm permits wall, floor, ceiling, pit or truck mounting
Nylon guide rollers reduce hose drag and abrasion
Pos-i-latch will maintain the desired working length of hose. Mechanism assures a positive latch of the hose
All reels are permanently factory lubricated
7000 Series offers weatherproof gasketed spring motor, assures maximum service life
Vibration-proof self-locking fasteners assures assembly integrity
304L grade of stainless steel
Passivated for electro polish finish

Applications
Restaurants
Car Washes
Laboratories
Dairies
Marinas
Grocery Stores
Photo Finishing
Meat Packing Plants
Chemical Plants
Printing Industry
Pharmaceutical
Food Processing
Ships

Specifications: Series: H
Grade: Stainless
Drive: Hand Crank
Weight (lbs): 36
Hose I.D. (in): 1/2"
Hose O.D. (in): 0.85
Hose Inlet Size (in): 1/2 NPT(F)
Hose End (in):
Reel Outlet (in): 1/2 NPT(F)
Hose Length (ft): 200
Hose Included: No
Max Temperature (Fahrenheit): 210
Pressure (psi): 3000
Primary Application: Oil
Secondary Application: Water
