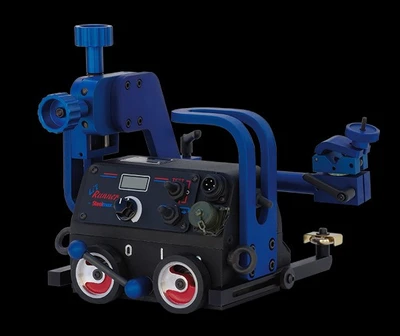

SteelMax Li'l Runner Portable Fillet Welding Carriage (Standard Version - up to 40 IPM)

Li'l Runner Portable Fillet Welding Carriage

(Standard Version - Up to 40 IPM)


Increase your production and reduce your welding costs with
the Li’l Runner Automatic Fillet Welding Carriage. By providing
constant, non-stop travel at a regulated speed, Li’l Runner
produces consistent high-quality welds in a fraction of the time
required by hand welding. The regulated travel speed creates
weld bead geometry which is exact to your specifications,
reducing costly over welding and decreasing filler metal usage
by as much as 60%. Li’l Runner will produce quality welds
faster and with less cost than hand welding. At just over 17 lbs
(8 Kg), this compact, portable tractor can be carried anywhere.

The Li’l Runner Welding Carriage is available in three unique versions:
(i) the standard version (up to 40 IPM); (ii) the high speed version (up to 86 IPM)
which can be used for cutting and welding applications; and
(iii) the dual power version (battery powered with a line power adapter).
The Li’l Runner family of carriages offer a broad range of capabilities in one
of the smallest fillet welders on the market today.

FEATURES
Compact, lightweight design with durable cast aluminum housing
Positive magnetic traction permits out of position use
Magnetic adhesion on/off lever permits easy set up and adjustment on work piece
Maintenance-free, 4-wheel planetary gear drive system
Digital LED display for presetting of travel speed
Rapid clamp torch holder mechanism for different types of MIG/MAG torches
Precise cross-slide torch adjustment
Integrated automatic arc initiation
Self-guiding roller arms eliminate the need for track
PRIMARY BENEFITS
Increased arc time – no starts and stops
Reduce wasted filler metal – eliminates over welding
Consistent heat input reduces distortion
Precise travel speed and torch angle reduces weld defects and costly rework
Improves work environment – reduces fatigue and repetitive stress – removes operator from heat and fumes
