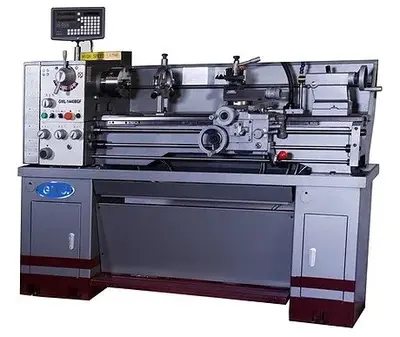

GMC Machinery 14” x 40” Single Phase High Speed Precision Gap Bed Tool Room Engine Lathe GML-1440BGF-1
Overview
GMC Machinery 14” x 40” Single Phase High Speed Precision Gap Bed Tool Room Engine Lathe GML-1440BGF-1
Standard Features
ISO 9001 certified
With free SINO DRO installed

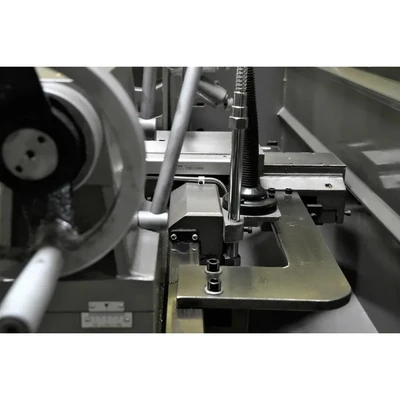

With free Taper Attachment installed
Full Geared-head precision Engine Lathe with foot brake
Quick-change gearbox with fast and easy threading set up
Heavy Duty main motor 3HP, 220V, 1 phase
Spindle bore 1 1/2”
Heavy Duty spindle D1-4
Heavy Duty guideway width 7 1/2”
8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm
56 kinds of inch threads, and 44 kinds of metric threads
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year warranty for parts
Included Equipment:
Free SINO DRO installed
Free Taper Attachment installed
6” 3-jaw chuck with set reversible jaws
8” 4-jaw chuck with set reversible jaws
10” Face plate

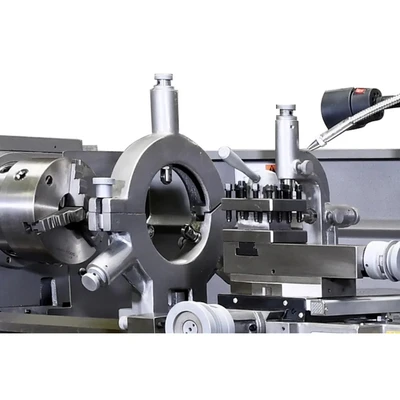

3 ¾” large steady rest
2” follow rest
Foot brake
Coolant system
Halogen work light
4-way tools post
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chas
Specs
Max. swing over bed: 14"
Max. length of workpiece/Max. length of cutting: 40"
Max. swing over cross slide: 8 1/4"
Width of Bed: 7 1/2"
Spindle bore: 1 1/2" D1-4
Taper of spindle center: M.T. #5 (MT5/MT3)
Spindle speeds: 70-2,000 RPM / 8 steps
Longitudinal feeds: 0.00168-0.11750 IPR, 24 kinds
Cross feeds: 0.00046-0.03231 IPR, 24 kinds
Inch threads: 4-112 TPI, 56 kinds
Metric threads: 0.1-7.0 mm , 44 kinds
Diametral Pitch threads: 16-112 DP, 32 kinds
Module threads: 0.1 – 1.75 mm , 34 kinds
Max. travel of top slide: 4 1/4"
Max. travel of cross slide: 7 1/4"
Spindle speeds, 8 steps: 70/115/190/300/460/755/1255/2000 rpm
Diameter of tailstock quill: 1 1/2"
Max. travel of tailstock quill: 4"
Taper of tailstock quill center: MT3
Main motor: 3HP, 220V, 1phase
Coolant pump: 1/16HP, 220V, 1phase
Net weight: 1,730 lbs.
Overall dimensions, LxWxH: 70" x 35" x 59"
