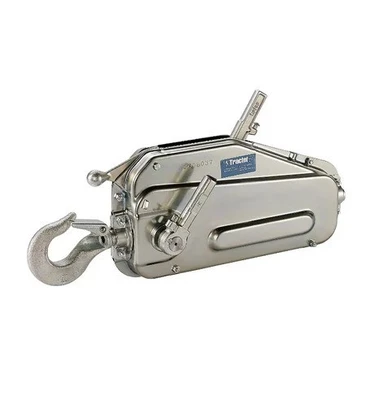

Tractel Griphoist/Tirfor TU28 Heavy Duty w/out Wire Rope

The griphoist®/tirfor® lifting and pulling hoist is safe, reliable and efficient. Suitable for many applications, the griphoist®/tirfor® is a lever-operated wire rope hoist using a separate wire rope. One-man operated, using a telescopic operating handle, it can work in any position and over any height of lift. It can replace conventional winches and other hoists for many applications. Best uses are when doing long pulls or when requirements call for increasing capacity.
It is possible for lifting and pulling applications to increase the capacity of the griphoist®/tirfor® by using multiple sheave blocks without the user being directly in front of load.
Light and compact, the griphoist®/tirfor® T500 series is easy to handle, provides a high mechanical advantage and is economical.
MULTIPLE OPERATION
Works in any position: horizontal, vertical or angled
Unlimited length of wire rope
Increase the nominal capacity with multiple sheave blocks
Long length of wire rope much easier to handle than chain
SIMPLE
Fast and easy installation and use
Simple to install or remove the wire rope
Continuous operation without jerking
Reduced maintenance with simple cleaning and regular lubrication
Change from forward to reverse operation by transferring the operating handle from one lever to another
HEAVY DUTY
High mechanical advantage
Both ranges will operate in the most difficult conditions
SAFE AND RELIABLE
The load is always permanently controlled in the utmost precision: when operation stops, the load is distributed on two jaw blocks
Each hoist is equipped with overload shear pins
APPLICATIONS
Construction
Public works
Civil engineering
Bridges
Steel structures
Industry
Escalators, elevators
Electricity and telecommunications
Oil and chemical industries
Entertainment
STANDARDS
UL certified for man-riding
MODEL TU28
Nominal capacity 4,000 lbs. for material handling
3,000 lbs. for man-riding
Wire rope dia. 7/16 in.
Effort on control lever - Forward 119 lbs.
Effort on control lever - Reverse 44 lbs.
Rope Travel - Forward 2-13/64 in.
Rope Travel - Reverse 2-3/4 in.
Min. wire rope breaking strength 20,000 lbs.
Wire rope weight N/A
Unit weight 41 lbs.
Replacement Handle 18
Shear pin (Pack of 10) 8836
