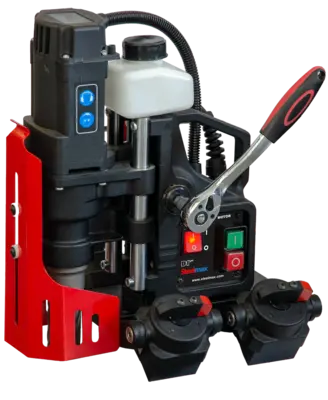

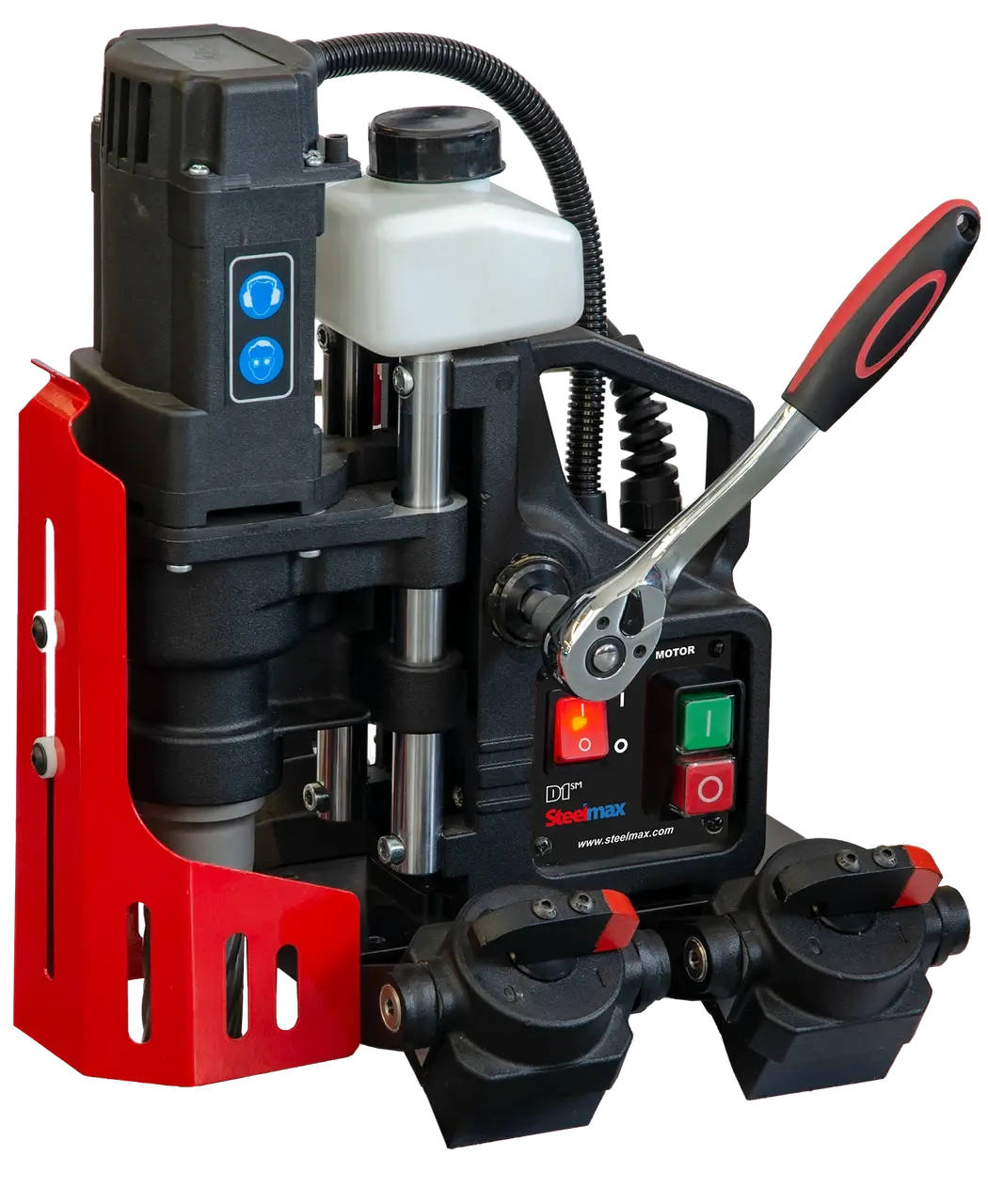

Steelmax D1-SM Swivel Base Magnetic Drilling Machine

The D1-SM swivel base magnetic drill has all the features
that make the D1 the go to drill for fabricators with the added
ability to easily drill holes on convex (min. diameter 12”) and
concave surfaces (min diameter 40”). Four individual swivel
magnets adjust to the surface, allowing the machine to work
on uneven work areas. Each magnet is equipped with variable
holding force features allowing easy machine positioning while
the magnets are partially engaged. The magnets work without
electricity making a great safety solution for your drilling needs.
FEATURES:
1-3/8" (36 mm) diameter x 2" (51 mm) depth of cut
Ultra compact and light weight: 14-3/4" working height (with coolant bottle) and only 22 pounds
Adjustable cutter guard with built-in chip breaker
Through spindle coolant system with removable reservoir
Maintenance free rail guide system for long life, minimal run-out and extreme accuracy
Automatic slug ejection system
Magnet is 1/3 smaller, lighter and stronger than competing models
Magnet uses only 50% power when motor is not under load
Designed for easy field service and repair
All aluminum parts are heat treated for rigidity
