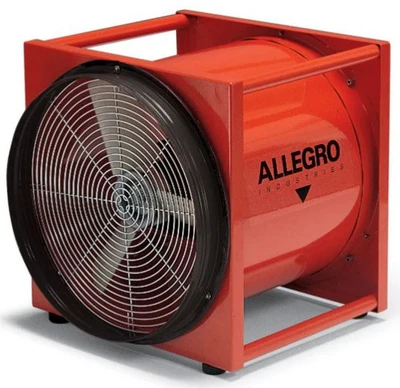

Allegro 16" Axial Explosion-Proof (EX) High Output Metal Blower 9515-50EX

ALLEGRO 9515-50EX - 16″ Axial Explosion-Proof (Ex) High Output Metal Blower

For applications requiring a maximum amount of airflow in hazardous locations

Powered by a 1 1/2 HP, 3450 RPM motor, this blower is designed for applications requiring a maximum amount of output. The housing is made from 16-gauge cold rolled steel and powder-coated in a "safety orange" color. It includes a 3-blade impeller, 125V plug, interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport, and a steel/zinc plated grill. NOTE: Explosion-proof blowers require an explosion-proof socket.

Features:

1-1/2 HP

Available in both US and International wiring configurations

Epoxy powder-coated in "safety orange"

Certified to CSA Standard C22.2 No 113.

16-gauge cold rolled steel housing

Integrated carrying handles

Meets Class I, Division 1 and 2, Groups C & D, Class II
Division 1 and 2 Groups F & G.

Made in USA

Anti-Static glass reinforced polyamide (PAGAS) three blade
fan with aluminum hub

Benefits:

Interchangeable flange for intake or exhaust side mounting

Blower delivers high output for drawing or pushing air for
added worker convenience

Integrated carry handles for easy transport to work site

Applications:

Construction

Industrial

Manufacturing

Confined Space



Country Of Origin
USA

Blower Motor Hp
1 1/2

Blower Cfm
4663.0

Blower M3 Per Hour
7922.0

Blower M3 Per Min
132.0

Blower Cfm 1 Bend Duct
2848.0

Blower M3 Per Hour 1 Bend Duct
4839.0

Blower Cfm 2 Bend Duct
2522.0

Blower M3 Per Hour 2 Bend Duct
4285.0

Blower Electrical Current
115V/208V-230V AC, 60 Hz

Blower Duct
Not Included

Blower Configuration
EX

Blower Housing
Metal

Blower Design
Axial

Blower Phase
Single

Fit For Hazardous Locations
Yes

Blower Diameter
16"/40.6cm

Blower Respiratory European Version 220v
No

CE Certified
No

Intertek CSA Certified
No
