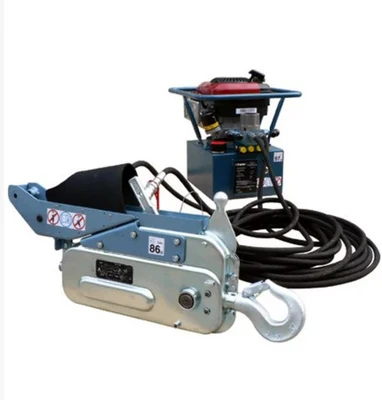

Tractel Hydraulic Griphoist/Tirfor TU28H Standard Equipment COMPLETE KITS-B

TU28H KIT-B tirfor® - 3.2 Ton / 7,040 lbs Capacity - Standard Equipment Kit - TU28H
This motorized hoist and winch combination adds increased power and speed while maintaining the portability and versatility that make the TU series of tirfor® wire rope hoists so useful to fire & rescue crews.

Operates using a hydraulic cylinder powered by either an electrical power pack or a gas-motor power pack (not included), and one, two, or four hoists can operate from a single power pack.

The hydraulic TU28 tirfor® can be used in numerous configurations and is the perfect solution for professional applications.

FEATURES
Lightweight
Fast and easy installation
No limitation of wire rope length
Reduced operator fatigue
Variable speed control
Overload protection
Includes

(1) 114299903 Power pack with 2-way control valve
(2) 6158 Set of two hydraulic hose 10 mm x 10 ft.
(2) 016499003 Griphoist®/Tirfor® TU28H hoist
(2) 003351990 Hydraulic ram VA2
Nominal capacity material handling:
(B) 7,040 lbs. (3,200 kg)
Maximum speed per hoist:
forward/lifting 6.5 ft. per min (2 m/min)
reverse/lowering 8.7 ft. per min (2.7 m/min)
APPLICATIONS
Construction
Pipe Laying
Steel Structures
Industry
Escalators & Elevators
Electricity
Bridges
Mines & Quarries
Shipbuilding
Rail & Road
Armed Forces
Civil Defence & Rescue
Agriculture
