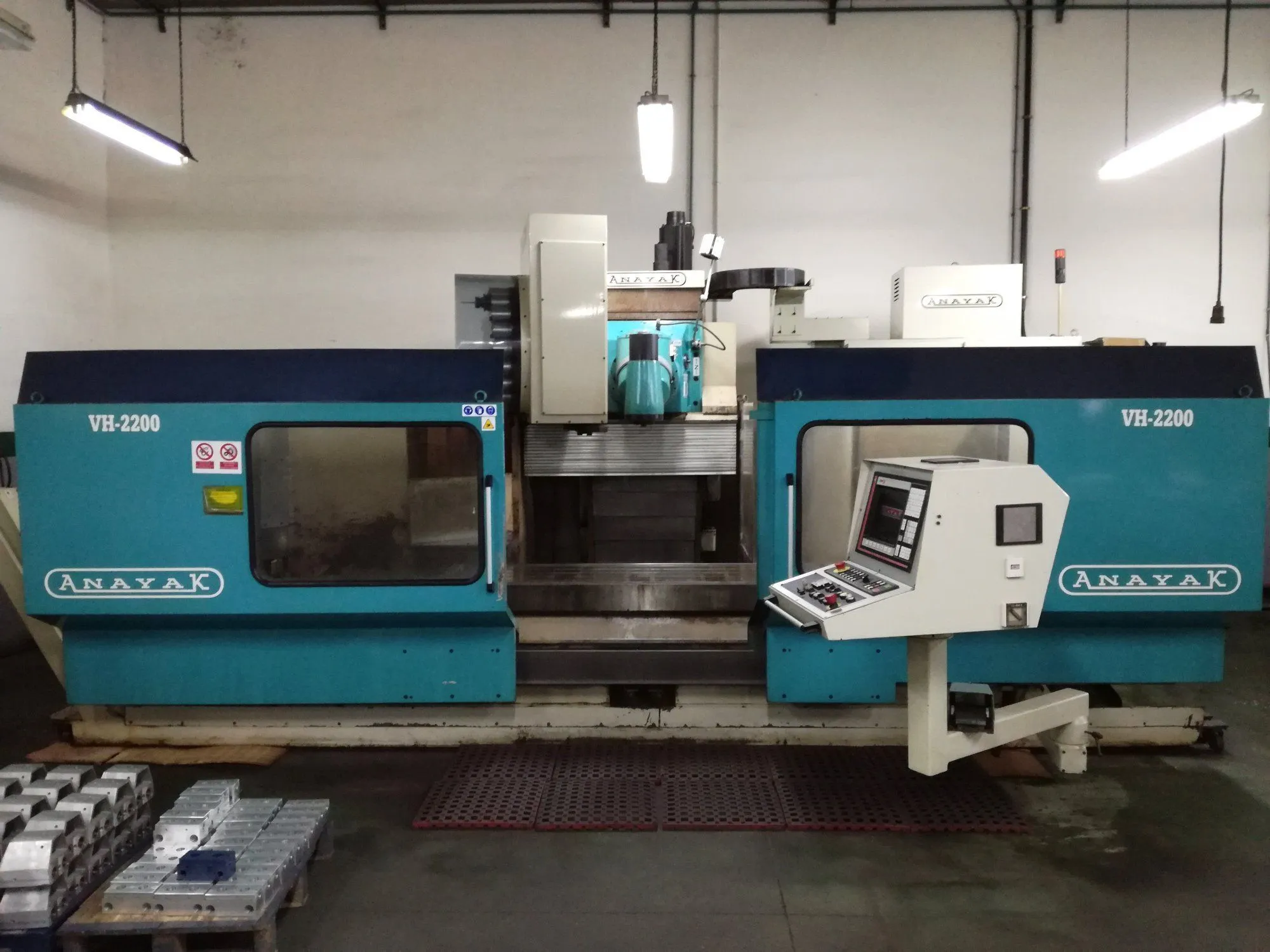

REBUILT ANAYAK Bed Type Vertical Machining Center, TRavels: X 78.4" Y 36.2" Z 35.4"
Who we are
EPMM (European Portal Milling Machines) is a company with more than 20 years of experience working with CNC machinery.
Since 2010, based on the experience we have accumulated, we also decided to start a new
project, creating our own brand and manufacturing CNC machinery for the most demanding
sectors, such as the automotive and aeronautical industries. We carry out projects tailored to
the needs of each client.
EPMM has two lines of business:
- Manufacturing of CNC machines.
- Rebuilding of CNC machines, always installing a new CNC, in order to offer a full
one-year warranty.
All our machines are customized to our customers' needs, and all our products meet the most
demanding quality requirements.
| X | 78.6" | 1,996.4 mm |
| Y | 36.2" | 919.48 mm |
| Z | 35.43" | 899.92 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| # ATC | 20 | 20 |
| Taper | 50 | 50 |
| Table-W | 29.5" | 749.3 mm |
| Table-L | 86.6" | 2,199.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (Heidenhain iTCN 620) | CNC (Heidenhain iTCN 620) |
| Dimensions | 195.3"L x 139.2"W x 121.2"H | 195.3"L x 139.2"W x 121.2"H |
| Weight | 26,400 lbs | 26,400 lbs |
TABLE
Dimensions 2200 x 750 mm
Number of T-slots 6
MAX. Work Load 6,000 lbs
Travel
X axis traverse 2,000 mm
Y axis traverse 920 mm
Z axis traverse 900 mm
Tool magazine
Automatic tool change 20 positions
HEAD
Horizontal and Vertical manual positioning Milling Head
Tool holder ISO-50 DIN 69871
Speeds 60 - 3.000 r.p.m.
Power
FEEDRATES
Travel speed in (X,Y,Z) 0 - 15 m/min
NUMERICAL CONTROL
Heidenhain Original TNC 426 Changed to iTCN 620
MACHINE PRECISION
Machine positioning precision and repeatability according to ISO-230-2 (UNE-15300-2)
WEIGHT AND DIMENSIONS
Net weight 11 Ton
Total power requeriments 38 Kw
