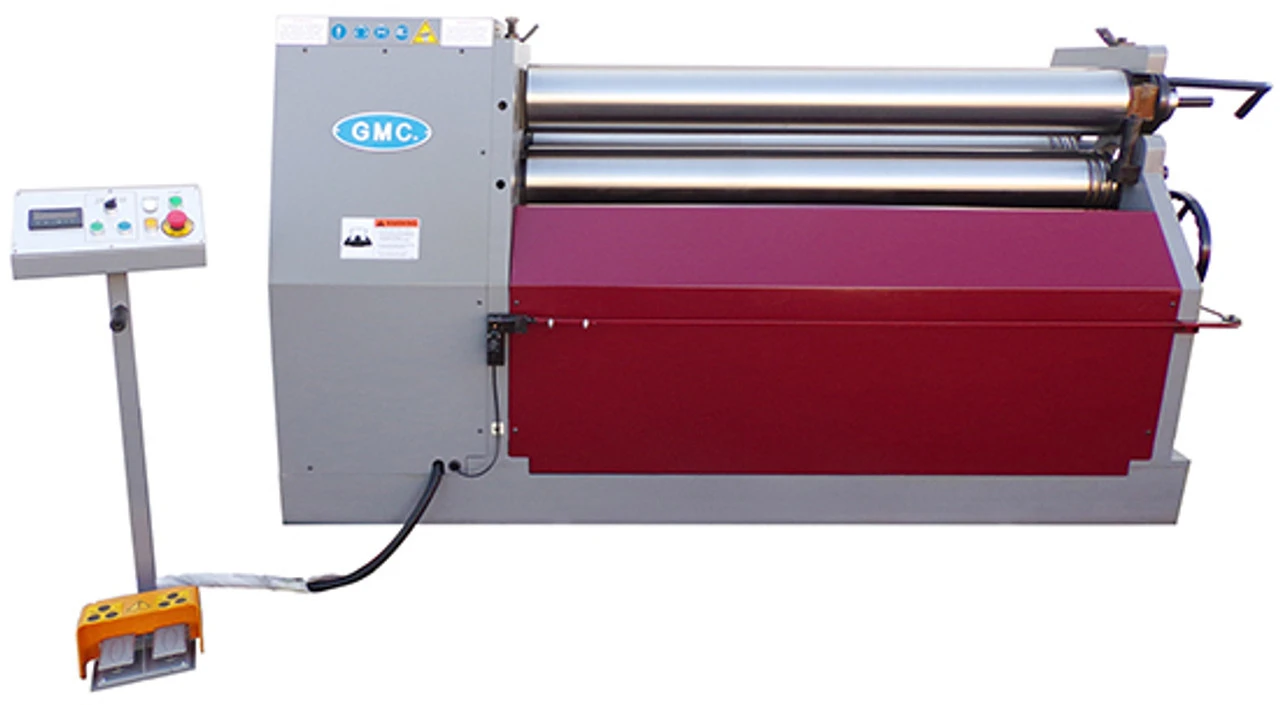

GMC Machinery 5’ x ¼” Hydraulic Plate Bending Roll
Overview
Features
ISO 9001 certified
Taiwan Machines
All three rollers are driven
All three rollers are hardened, up to 50-52 HRC
Easy swing –out top roller
Standard cone attachment installed
1 each LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high-grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V, (Option 460 V , 3 phase)
Standard Equipment
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Specs
Roll Capacity Mild Steel: 5’ x ¼”
Roll Capacity Stainless Steel: 5’ x 3/16”
Min Roll Dia.: 9-7/8”
Rolls Length: 5' 2"
Rolls Dia.: 7”
Pre-Bend: 0.18”
Roll Speed: 5 RPM
Rolls Opening: 1-1/2”
Oil Tank Cap: 25 Gal
Main Motor: 5.5 HP
Mach Weight: 6,850 lbs
Dimensions: 102 x 38 x 58
