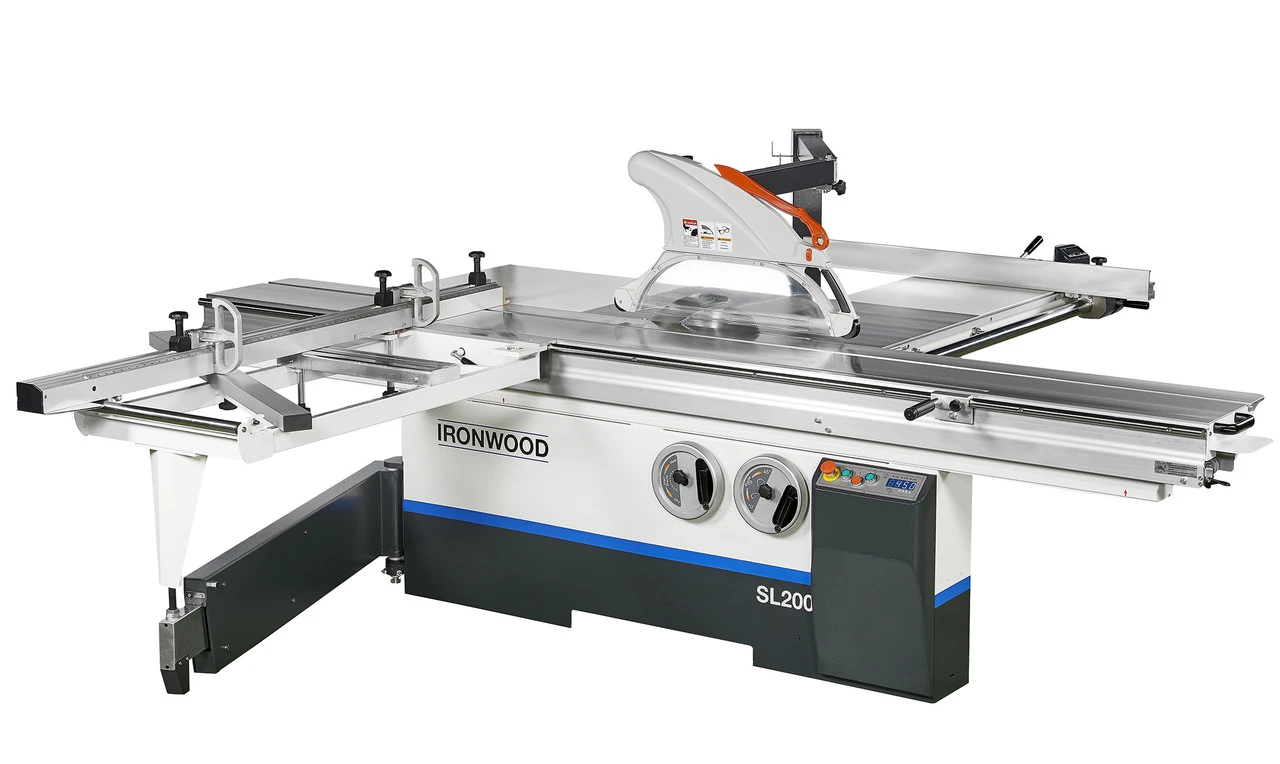

Stiles Machinery Ironwood 230V 7.5HP Sliding Table Saw SL200 3800

Ironwood’s SL Series of sliding table saws brings ultimate flexibility and versatility to an intuitive cutting solution. Designed to be a blend of innovation, dependability, and quality, the SL Series delivers the quality and precision required for the final chip-free cut, improving the results of subsequent machining (i.e. edgebanding, drilling, etc.). This reduces assembly time, as parts fit easier, material costs are reduced, and the need for other machinery can be eliminated. Ideal for panel and solid wood processing, the series is capable of making perfect miters, as well as rip, jointing, and cross cuts.
The SL Series features aircraft grade aluminum sliding tables manufactured in Europe with perfected vertical guidance for accurate square cuts over the full cutting length. The sliding table’s smooth and precise movement reduces operator fatigue and is totally maintenance free. The chrome hardened guiderails ensure that the sliding carriage traverses straight without lateral movement.
The rugged cast iron frame is robotically welded for absolute precision and strength to support heavy cutting operations. The saw unit is electronically balanced and precisely positioned to provide vibration-free running during the cutting process. In addition to its heavy-duty design, the Ironwood SL Series complies with the highest standards of international efficiency by using IE3 motors which reduce energy consumption over the life of the machine and improve global footprint.
Controls
Ironwood’s SL200 is efficient and versatile. Conveniently located on and off buttons are integrated into the machine base. Handwheels on the machine’s front faces let the operator easily adjust blade height and tilt. Tilting of the saw unit, variable up to 45.5°, is accurately achieved with digital read out display in the control panel.
Sliding Table

3800 mm sliding table for cutting length of 146" with crosscut fence mounted. Ironwood’s double-roller carriage features a direct vertical load transfer system to ensure smooth sliding table motion and straight, square, and chip free cuts
Large, hardened steel rollers guide the moving table with absolute precision between the hard-chromed guide bars
Integrated locking mechanism for locking the sliding table in the forward and middle positions

Maintenance-free system requires no oiling, ensuring years of easy movement and accurate cutting even after decades of hard work, dust, and dirt.
Additional sliding table lengths available by special order.
Saw Unit

Main Saw Drive System 5 kW (7.5 HP) high efficiency IE3 motor
Three motor spindle speeds, 3000, 4000, or 5000 RPM adjusted manually

Tilting Range Tilting range 0-45.5 degrees
Robust cast iron tilt trunnions incorporating the traditional tongue and groove connection system for precise and smooth tilting

Blade Guard

Blade guard Overhead blade guard includes two inserts for straight or angled cuts
Integrated extraction helps keep the shop floor clean

Scoring Unit

Two (2) Axis Manually Adjusted Scoring System 75kW (1HP), 8,000 RPM
120mm / 4.72" blades (included)
Manual Adjustment for height and kerf
Shims included for kerf adjustment

Scoring unit with manual raise, lowering, and lateral adjustment is ideal for absolutely chip free cutting of melamine, vinyl, high pressure laminate, and veneered particleboard, even when saw blade is tilted
Rip Fence Assembly

Manual Rip Fence with digital read out and fine adjustment 1300mm (51”) rip capacity
Precision fine adjustment for a high degree of accuracy
Hard chromed round bar for smooth fence movement
Swing away rip fence, to easily swing rip fence below table level for dividing large pieces

Battery operated digital read out is mounted directly onto the rip assembly Automatically adjusts to rip fence when switched from upfront to flat operations
Easily calibrated
Achieve superior and repeatable accuracy up to 0.1mm or 0.004”

Crosscut Miter Fence Assembly

Crosscut Miter Fence for square or miter cuts Crosscut fence with stops to 3200mm (126”)
Miter angle range can be adjusted over a range of 49°
Integral manual length compensation to keep flip stops accurate at angle
Fence can easily be slid from the front to back position without lifting, for various cutting operations
Includes two (2) adjustable flip stops

Machine Construction
CNC manufactured, robotically welded, five-sided torsion resistant base with integrated control cabinet
Easily accessible forklift slot for machine placement
Flat machine front for interference free saw operation
Additional Features
Electrics according to UL listings
Emergency stop buttons
Electric brake on main and scoring motors
Multiple riving knives included with the machine
Anodized aluminum parts
Scales with metric and inch dimensions
Main and scoring blades included
Clamping shoe for straight-line rip cuts
Tool kit and instruction manual
Three-year warranty mechanical
One-year warranty electrical
