SteelMax BM21 21 MM (13/16") Portable Beveling Machine (115v)

BM21 Portable Beveling Machine


Reduce your costs and lay the foundation for high-quality welds with the
Steelmax BM21 (and the BM21 SS specifically for use on stainless steel).
Inaccurate bevels and poor weld preparation are often the root cause of weld

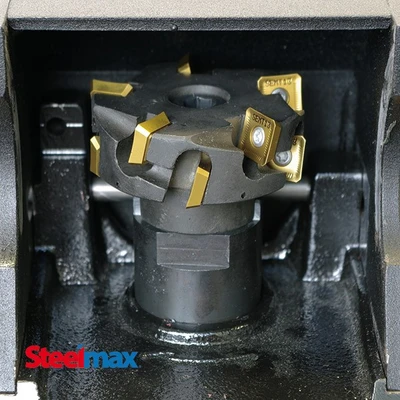

defects and excessive welding costs. Both machines utilize a high speed rotary
milling head with ten carbide inserts to produce precise bevel angles from
0 to 60 degrees that dramatically improve fit up and all subsequent welding
operations.
Unlike flame or plasma cut weld preparation, the BM21 (and BM21 SS)
produce no heat affected zone or distortion of the work piece. These portable tools
can be carried anywhere and eliminate time consuming and costly material handling
associated with moving plates around the shop to stationary burning and milling machines.

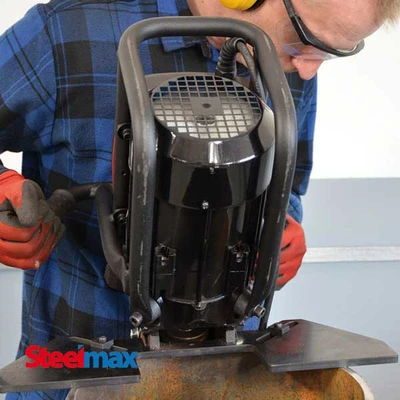

The BM21 features an ergonomic design that includes vibration dampening technology
to protect the operator and the machine during heavy continuous operation. Automatic
thermal overload protection circuitry protects the motor from premature failure, providing
a reliable tool that can withstand the toughest jobs. The BM21 can be used on plate
and pipe without any additional accessories.

FEATURES
Single milling head using 10 indexable carbide inserts produces weld-ready bevels quickly and efficiently with low operator effort
Fast and easy exchange of inserts with no need for special adjustment
Working range from 0 to 60 degrees with continuous angle adjustment
Simple bevel angle and bevel width setup
Advanced vibration isolation protects both the operator and the machine
Universal guide plate requires no additional accessories for beveling both plate and pipe
