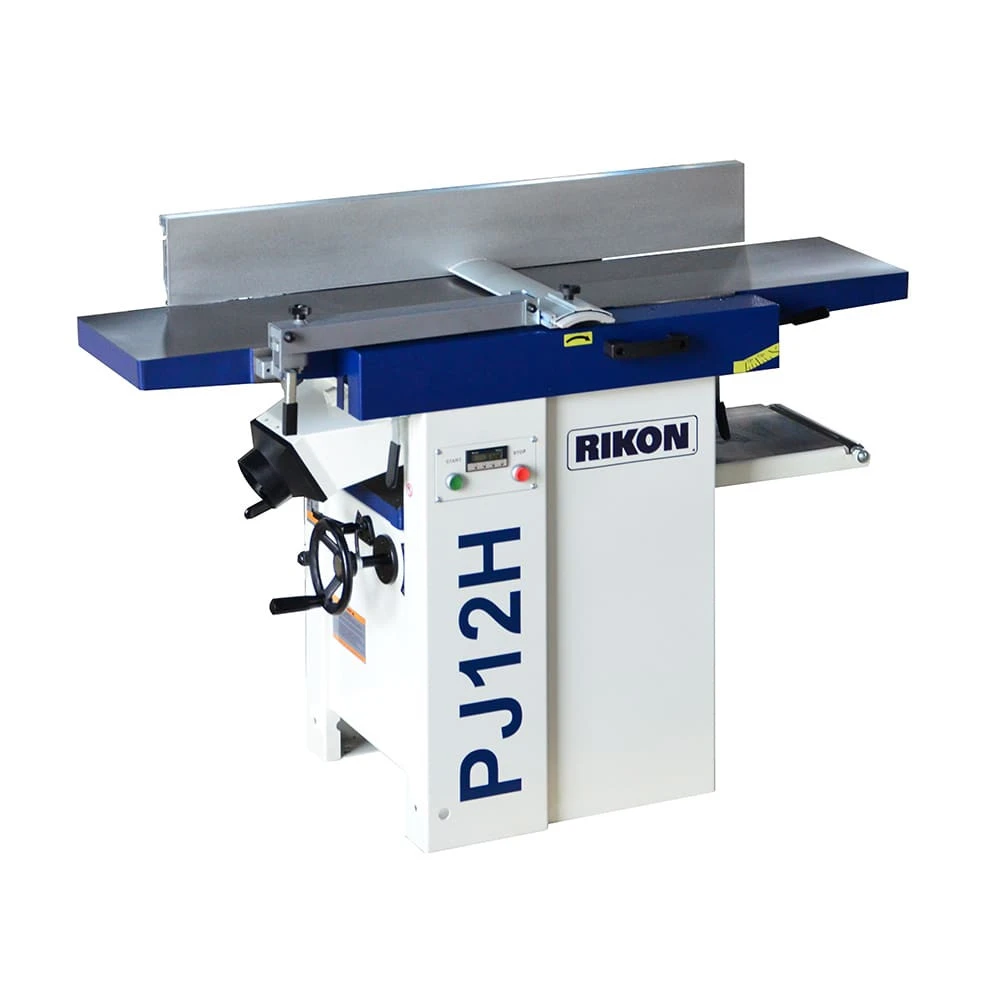

Rikon 12" Planer/Jointer with Helical Cutter head 25-212H
Overview
12” Planer / Jointer 25-212H is equipped with a larger 12” cutter head and powerful 3HP motors that make quick work in milling the hardest, or widest rough-sawn lumber. A favorite of production shops, the jointer and planer tables are made of heavy, cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head. The 25-212H has a 4-row, helical cutter head with 34 four-sided, carbide insert cutters. 220V motors require 3-wire electrical plugs to match your electrical receptacles.
Features:

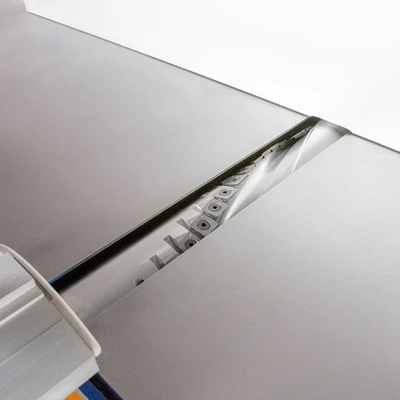

Helical cutter head with 34 carbide insert cutters. Each indexible insert has four pre-sharpened sides and can be easily changed/rotated if damaged or worn.
All metal construction with machined table surfaces
Jointer tables move for full access to cutter heads for knife insert changes
Sliding safety bar adjusts over jointer knives for best user protection
Height / Depth gauges clearly indicate cut settings
4” Dust port effectively removes chips when planning or jointing
Front located on/off switches for extra safe machine shut downs
Specs
Motor Horsepower: 3 HP
Motor Amps: 12
Motor Volts: 220V, 60 Hz
Motor RPM: 3,400
Cutterhead Speed: 5,500 RPM
Cuts Per Minute: 16,500 CPM
Number Of Carbide Inserts (4 Sided): 34
Carbide Insert Size: 15mm x 15mm x 2.5mm
Number Of Insert Rows: 2
Cutterhead Diameter: 2-1/2”

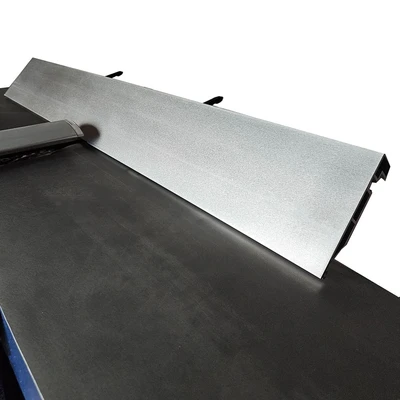

Fence Size: 43-1/4” x 6”
Fence Tilts: 90° to 135°
Fence Positive Stops: 90° and 45°
Planer Maximum Cutting Width: 12”
Planer Maximum Cutting Height: 8"
Planer Maximum Cutting Depth: 1/8”
Planer Wood Feed Rate: 23 SF/MIN
Planer Table Size: 13-1/8” x 21-1/2”
Jointer Maximum Cutting Width: 12”
Jointer Maximum Cutting Depth: 1/8"
Jointer Table Size: 12“ x 27”
Jointer Table Height from Floor: 35- 1/2"
Overall Height: 39-1/2”
Overall Width: 31”
Overall Depth: 55-3/4”
Overall Base Size: 21-1/2” x 19”
Dust Port: 1@4”
Overall Net Weight: 509 lbs.
Warranty: 5 years
