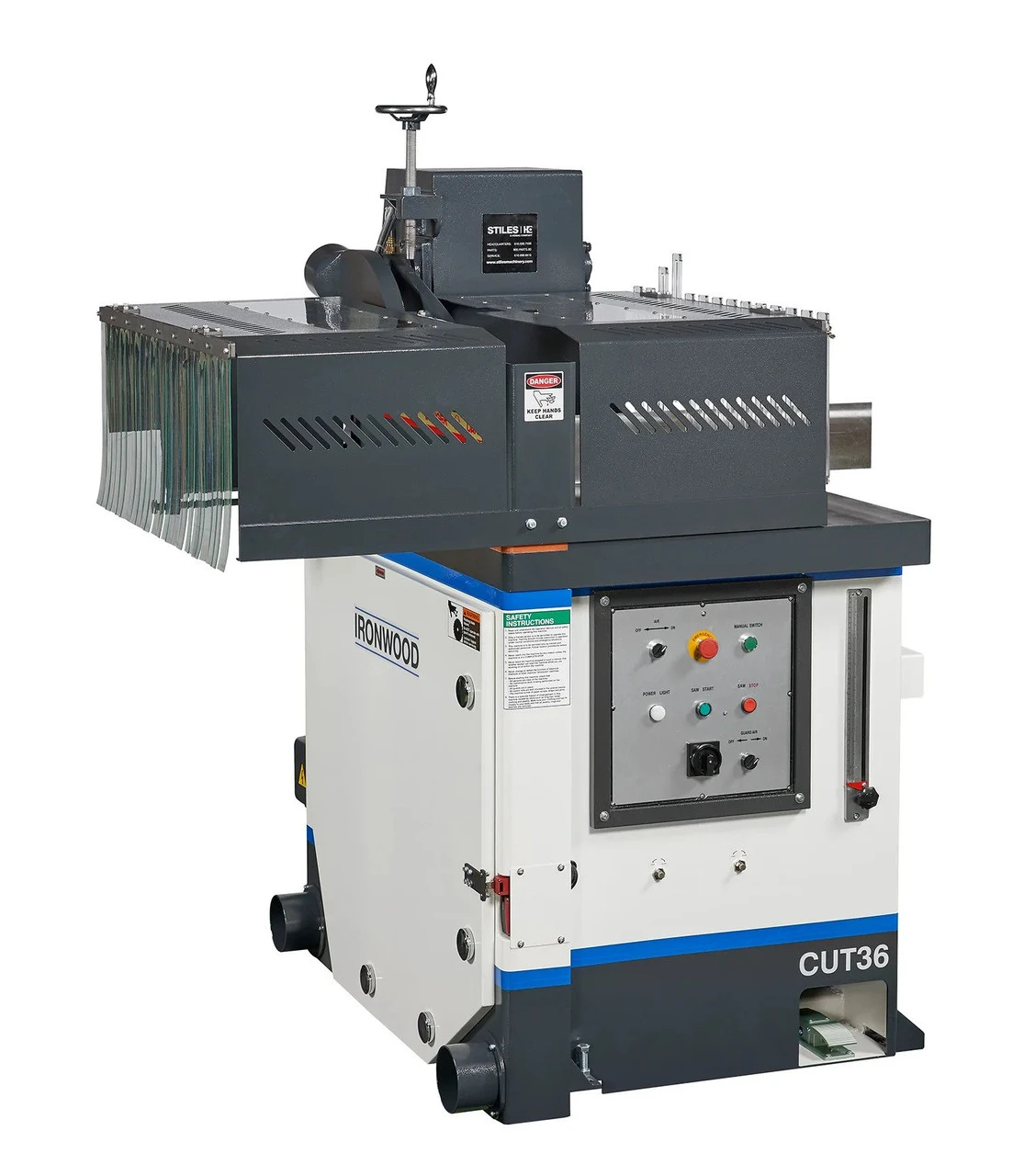

Stiles Machinery Ironwood CUT36 Cut-Off Saw

The Ironwood CUT36 Cut-off Saw offers operators a safe and reliable, heavy-duty crosscutting solution.  The massive table surface of the CUT36 saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.
Cutting capacities offer maximum thickness up to 12” and up to 33” width
Table surface is precision ground to assure cutting accuracy
Powerful, high torque 20 HP motor drive ensure high stability at fast cutting speeds
Belt-tension adjustments and replacements are performed quickly and easily
Ironwood’s optional outfeed roller conveyor can be equipped with a graduated gauge bar and flip stops to ensure consistent cutting lengths
Pneumatic operation of the cutting cycle is conveniently controlled via foot pedal
Pressure clamp is easily adjusted to provide versatility when working with varying thicknesses of material
Proper dust ports ensure positive air flow to prevent dust build-up within the machine cabinet
Cycle speeds can be conveniently adjusted from outside the machine cabinet
Retrofittable Ironwood infeed and outfeed roller conveyors can be added to improve handing and production efficiency
Machines are offered in right-handed feed and left-handed feed directions
Advanced safety guard minimizes risk of operator’s hand accessing the cutting area
Enhanced safety elements ensure saw blade is totally enclosed within the cabinet and covered by the pressure clamp when raised to perform cutting operation
Limit switches ensure safe tool changes, allowing access doors to be opened only when blade has stopped rotating
Ironwood’s optional spring-loaded rear clamp secures workpieces during cutting operations
Emergency Stop
One year warranty
Cutting capacity (thickness x width)
2" x 33" / 4" x 30" / 6" x 28" /
8" x 25" / 10" x 19" / 12" x 13"

Cycle operation
Pneumatic

Material feed direction
RH or LH

Saw blade size
36”

Saw arbor Ø
2”

Saw blade speed
1600 RPM

Table size
57 ½” x 32 ¼”

Motor
20 HP

Air consumption
351 l/min

Air pressure req
48 (l)

Dust port Ø
(4) x 5” ports

Gross weight
2,860 lbs

Packing dimensions
63” x 42 ¼” x 76 ¾"
