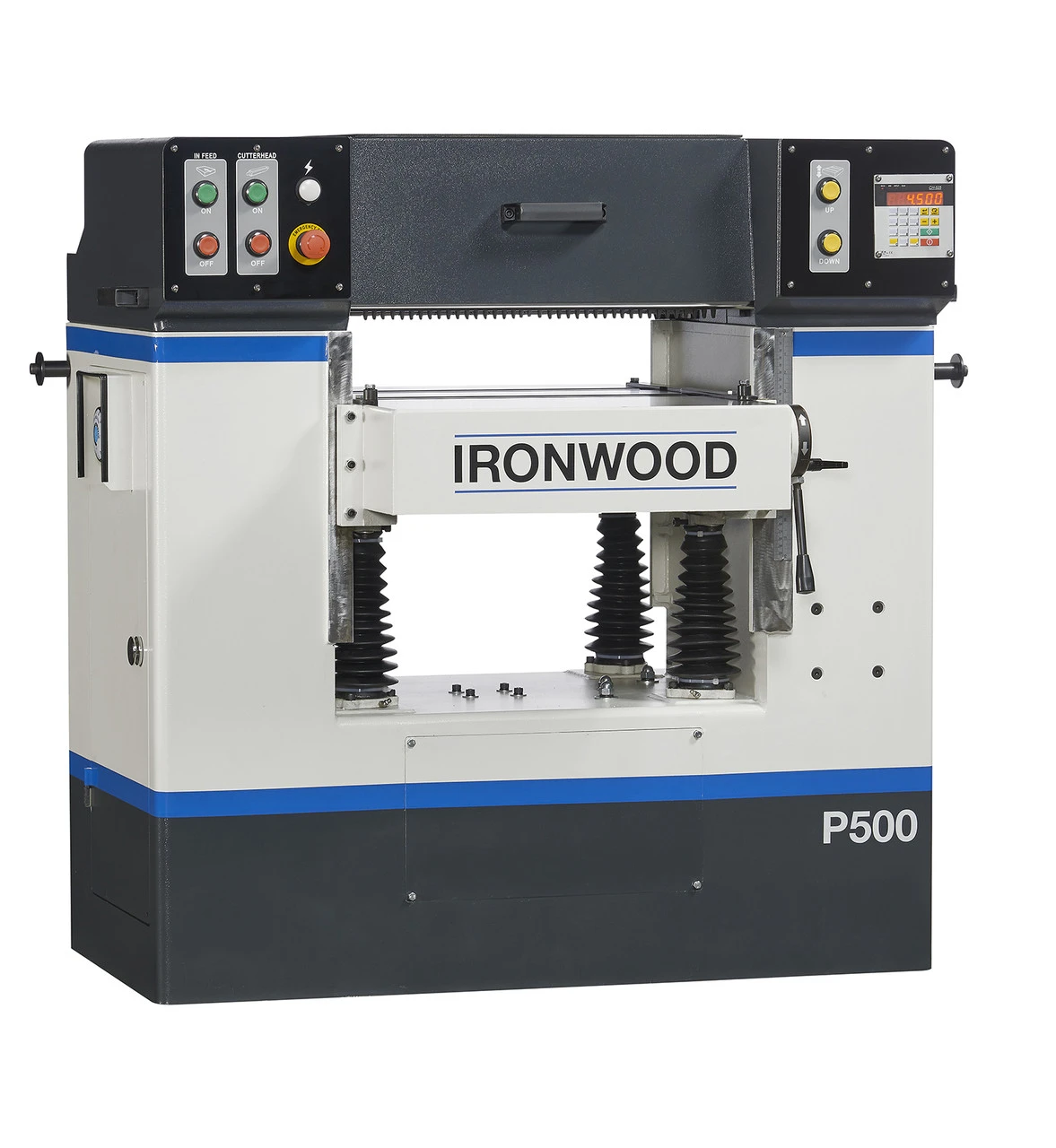

Stiles Machinery Ironwood 230V 20” Single Surface Planer P500

The Ironwood P500 Series of 20” thickness planers provide operators with solid thickness planing machinery that offer a powerful cutting performance. This machine features an enhanced heavy-duty cast iron table that is heat treated and precision ground to assure the greatest rigidity and stability during intense cutting operations. The Ironwood Planers cater to the American woodworker in offering enhanced engineering designs and superior build construction for long-lasting and trouble-free performance.
Technical Advantages
Machine base is manufactured from high-quality cast iron and incorporates strong interior construction supports to ensure motionless and vibration-free performance
Helical tooling is carefully machined, tempered, and dynamically ground balanced
4” diameter spiral cutterhead features six rows of carbide inserts to ensure longer-lasting and sharper tool life
Newly designed outfeed pressure roller configuration features solid construction and spring-pressure adjustments to provide additional strength and ensure appropriate levels of tension
Two 3” adjustable bed rollers for planing of rough or finished lumber, as well as glued panels
Powered table height positioning via keypad entry within the digital controller
A 1/4 HP motor drives the powered table elevation, providing operators with fast and convenient thickness settings
Both the infeed chipbreaker and the outfeed pressure rollers incorporate spring-pressured adjustments to ensure the positive contact on the workpiece as it is passed through the planer
Efficient Yet Versatile
Integrated digital controller with keypad entry for powered table positioning offers quick and convenient thickness settings to the thousandths of an inch
Precisely designed infeed anti-kickback fingers to enhance the operator safety element
2-sided carbide insert design within the helical cutterhead provides users with a higher chip-removal rate, superior surface finishing, and lower noise levels
Variable feed speed controls, from 19 to 39 FPM, are conveniently located on the upper side panel of the planer for improved versatility
Centralized control panel includes on/off controls for the cutterhead and feed, motorized table controls with keypad entry and digital readouts, and an emergency stop
Ironwood’s bed roller adjustments feature the ‘quick-set’ adjustment from 0.0” to 0.5” as well as the handy raise and lowering lever to ensure smooth feed rates
An enclosed micro-adjustment dial is also provided to ensure precise positioning of the table
Safety
Micro-adjustment dial for the table elevation is redesigned in an enclosed format to reduce the chances of operator injury
Table raise and lowering operations controlled by two limit switches
Equipped with carefully designed anti-kickback fingers
All electrics are UL and CSA approved and feature Telemecanique components
Emergency Stop
One year warranty
